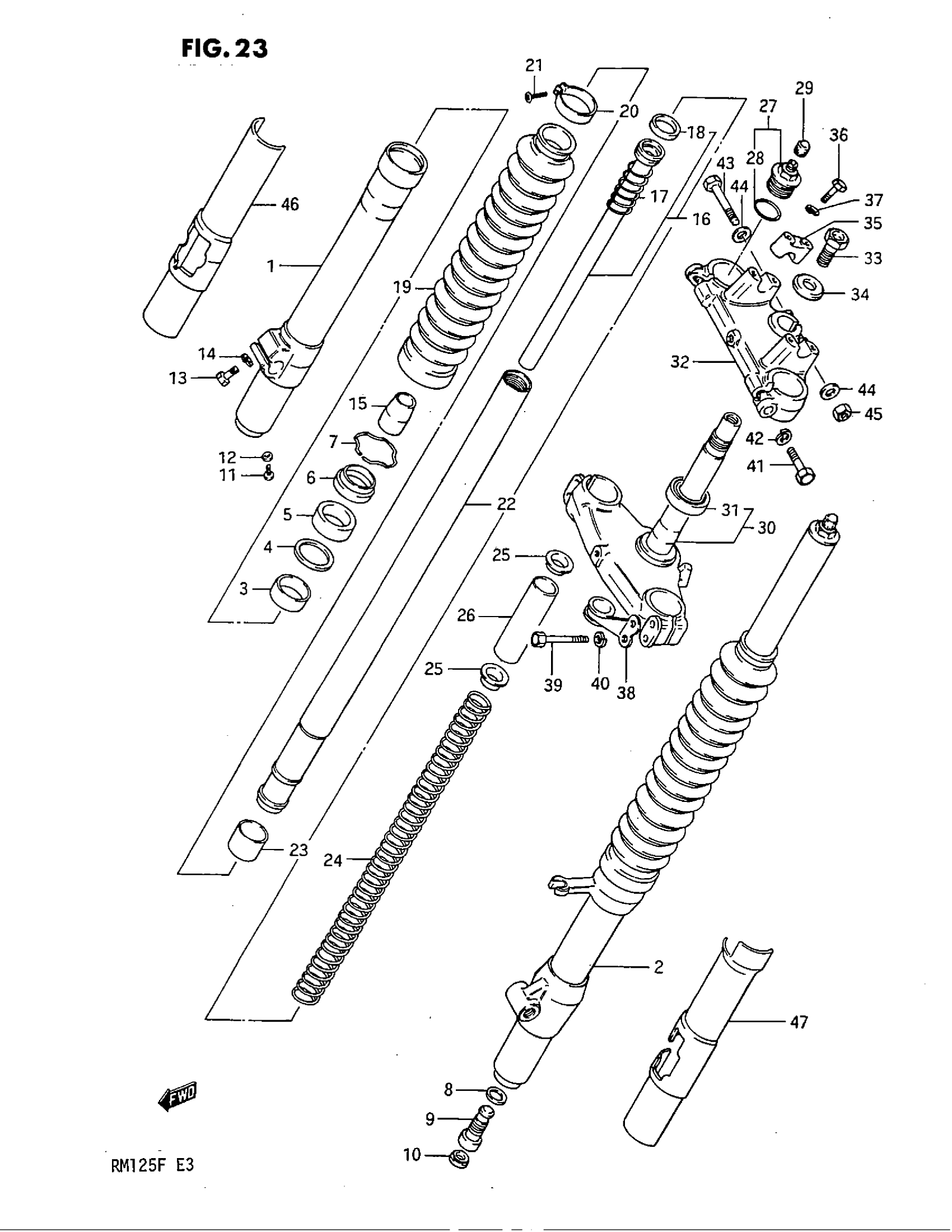

Suzuki RM125 (1985) FRONT FORK (MODEL E) Diagram

#

Description
Price

FRONT FORK ASSY (BLUE) | Includes Item(s) 1 - 47

51100-14510-19F

Unavailable

1

OUTER TUBE, RH

51130-14500

Unavailable

2

OUTER TUBE, LH

51140-14500

Unavailable

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

$15.18

4

WASHER

51158-14200

$4.75

5

OIL SEAL

51153-14330

$12.48

6

DUST SEAL

51173-14330

$9.64

7

RING, STOPPER

51156-14200

$4.63

8

GASKET

51148-14330

Unavailable

9

VALVE

51770-14500

Unavailable

10

CAP

51189-14500

Unavailable

11

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

12

GASKET

51183-03010

$2.00

13

BOLT This part replaces 01107-08308.

01500-08307

$2.80

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

15

PIECE, OIL LOCK

51195-14330

Unavailable

16

CYLINDER

51146-14500

Unavailable

17

SPRING

51177-14330

$11.63

18

RING

51196-14330

Unavailable

19

BOOT This part replaces 51571-14500-19F.

51571-14500-38K

Unavailable

20

BAND

51575-14500

Unavailable

21

SCREW This part replaces 02112-04108.

02112-04107

$1.55

22

INNER TUBE

51110-14500

Unavailable

23

PISTON

51121-14200

Unavailable

24

SPRING

51171-14500

Unavailable

25

GUIDE, SPRING This part replaces 51172-14500.

51172-14200

Unavailable

26

SPACER

51176-14500

Unavailable

27

CAP

51351-14500

Unavailable

28

.O RING This part replaces 51117-14200.

51117-14201

$2.67

29

CAP

51294-20400

$8.32

30

STEM, STEERING

51410-14500

Unavailable

31

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$52.22

32

STEM HEAD, STEERING

51311-14500

Unavailable

33

BOLT

51351-41320

Unavailable

34

WASHER

51356-41310

Unavailable

35

HOLDER, HANDLE UPPER

56211-27100

$20.22

36

BOLT This part replaces 01107-08358.

01500-0835B

$2.80

37

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

38

CLIP This part replaces 58621-14500.

58621-14520

Unavailable

39

BOLT This part replaces 01107-08408.

01500-0840A

$2.62

40

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

41

BOLT This part replaces 01107-10458.

01500-1045A

$2.80

42

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.83

43

BOLT This part replaces 01107-08508.

01500-08507

$2.80

44

WASHER This part replaces 08322-11088.

08322-01087

$1.86

45

NUT This part replaces 08310-12088.

08310-00087

$1.83

46

PROTECTOR, RH

51201-14500-163

Unavailable

47

PROTECTOR, LH (YELLOW) This part replaces 51202-14500-163.

51202-14501-163

Unavailable
