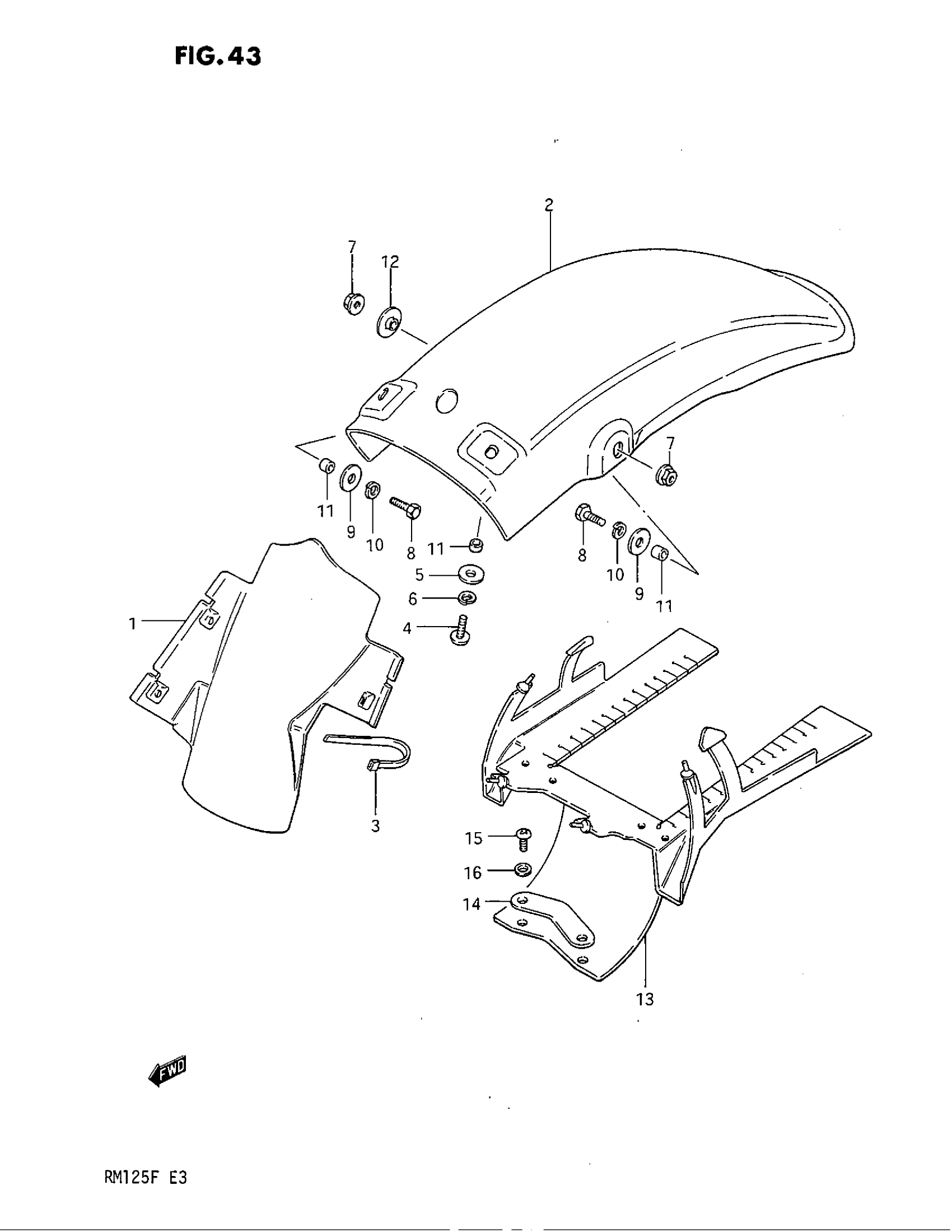

Suzuki RM125 (1985) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-14500

Unavailable

2

BODY, REAR FENDER REAR This part replaces 63113-14500-163.

63113-26C00-25Y

Unavailable

3

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

4

SCREW, BODY COVER UPPER This part replaces 02142-06258.

09125-06055

$2.34

5

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.91

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

NUT This part replaces 09159-06017.

08319-31067

$2.03

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

12

WASHER, RH

09169-06038

Unavailable

13

MUD GUARD, REAR FENDER

63331-14500

Unavailable

14

WASHER, MUD GUARD

63332-14500

Unavailable

15

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

16

WASHER This part replaces 08322-21058.

08322-01057

$2.13
