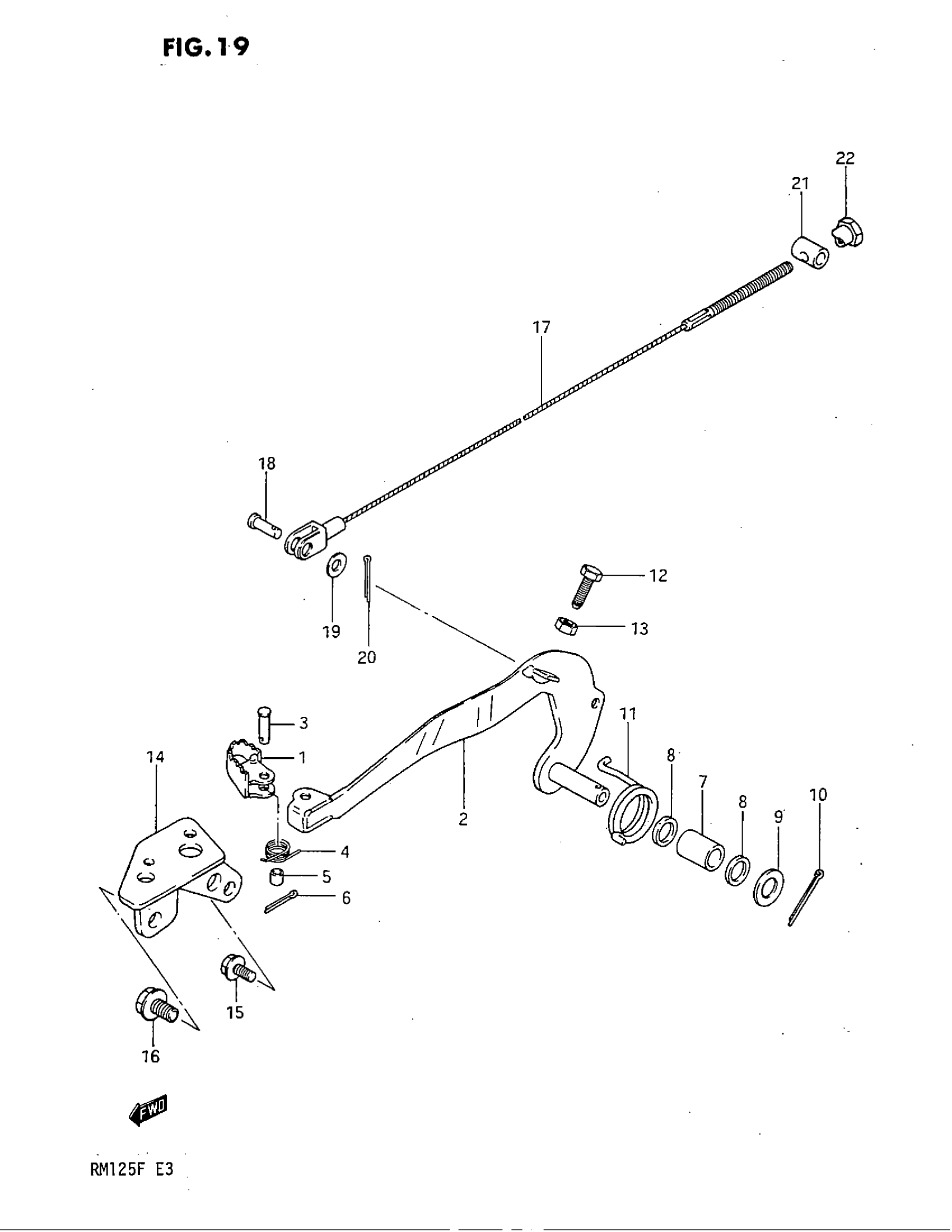

Suzuki RM125 (1985) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-14130

$16.15

2

ARM, BRAKE PEDAL

43120-14500

Unavailable

3

PIN

09200-06038

$2.38

4

SPRING This part replaces 09444-11004.

09444-11005

$2.86

5

SPACER

09180-06137

Unavailable

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

BUSH

09319-12022

Unavailable

8

O RING

09280-12006

$1.56

9

THRUST WASHER

08211-12221

$2.53

10

PIN This part replaces 04111-30208.

04111-3020A

$1.50

11

SPRING

09448-32013

Unavailable

12

BOLT

09128-06028

$1.98

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

PROTECTOR, BRAKE PEDAL | MODEL E This part replaces 43240-14500.

43240-14501

Unavailable

14

PROTECTOR, BRAKE PEDAL | MODEL F

43240-14501

Unavailable

15

BOLT This part replaces 01517-06128.

01550-06127

$2.30

16

BOLT This part replaces 01517-08128.

01550-08127

$2.85

17

CABLE ASSY, RR | MODEL E This part replaces 58510-14500.

58510-146V0

Unavailable

17

CABLE ASSY, RR | MODEL F This part replaces 58510-14501.

58510-146V0

Unavailable

18

PIN

09200-05001

$1.65

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

PIN, ADJUSTER

09209-13004

Unavailable

22

.NUT This part replaces 09150-06009.

09150-06010

$3.10
