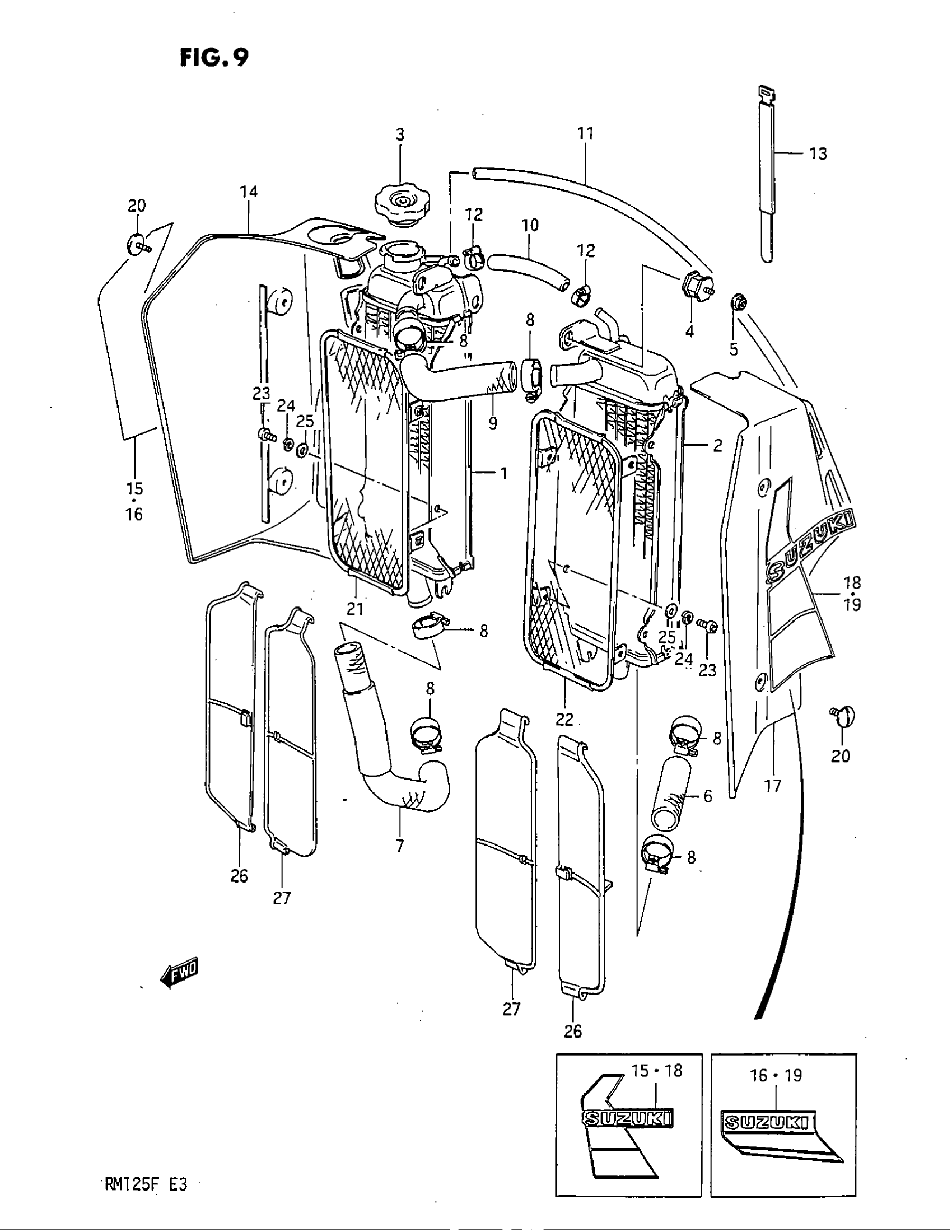

Suzuki RM125 (1985) RADIATOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 17710-14500.

17710-14502

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 17720-14500.

17720-14502

Unavailable

3

CAP, RADIATOR 1.1 This part replaces 17730-20921.

17730-19D11

$42.32

4

BOLT,RADIATOR | MODEL E This part replaces 17788-16700.

17788-14501

$15.48

4

BOLT,RADIATOR | MODEL F This part replaces 17788-14500.

17788-14501

$15.48

5

NUT This part replaces 08316-16064.

08316-1006B

$2.50

6

HOSE, CYLINDER JOINT This part replaces 17851-14500.

17851-01A00

$22.10

7

HOSE, OUTLET

17852-14500

Unavailable

8

CLAMP This part replaces 09402-25501.

09402-28511

$6.88

9

HOSE, JOINT

17853-14500

Unavailable

10

HOSE, BYPASS

17854-14500

Unavailable

11

HOSE (5X9X2000) This part replaces 09343-05280.

09352-50901-00B

$26.94

12

NO DESCRIPTION AVAILABLE This part replaces 09402-15501.

09402-15511

Unavailable

13

CLAMP | MODEL E This part replaces 09407-18301.

09407-18302

$2.28

14

COVER, RADIATOR RH This part replaces 17761-14500-163.

17761-14500-25Y

Unavailable

15

TAPE SET, RH | MODEL E This part replaces 68660-14500-82M.

68660-01B10-9BV

Unavailable

16

TAPE, RH | MODEL F

68660-14510-95C

Unavailable

17

COVER, RADIATOR LH This part replaces 17762-14500-163.

17762-14500-25Y

Unavailable

18

TAPE, LH | MODEL E

68670-14500-82M

Unavailable

19

TAPE SET, LH | MODEL F This part replaces 68670-14510-95C.

68670-01B10-9BV

Unavailable

20

SCREW

09125-06045

$11.07

21

BUMPER, RADIATOR, RH

17810-14500

Unavailable

22

BUMPER, RADIATOR, LH

17820-14500

Unavailable

23

SCREW This part replaces 02112-06105.

02112-0610B

$1.84

24

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

25

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

26

LOUVER, RADIATOR, NO.1

17831-14500

Unavailable

27

LOUVER, RADIATOR, NO.2

17832-14500

Unavailable
