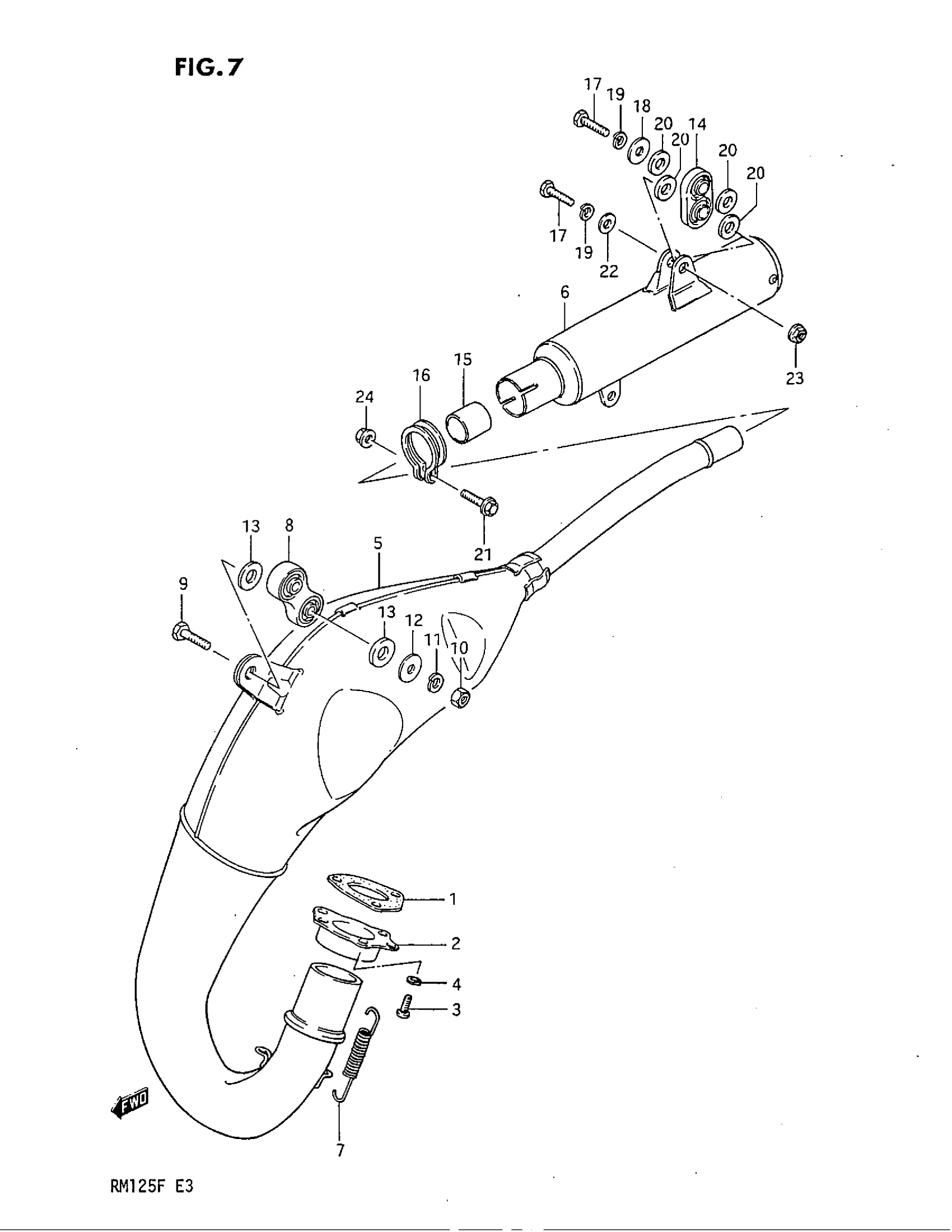

Suzuki RM125 (1985) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLAN This part replaces 14181-40200.

14181-40200-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-14502

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 14310-14512-H01.

14310-14513

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 14310-14513-H01.

14310-14513

Unavailable

6

MUFFLER, 2ND

14330-14510-H01

Unavailable

7

SPRING This part replaces 09443-12028.

09443-10034-XC0

Unavailable

8

DAMPER, MUFFLER

14770-40000

Unavailable

9

BOLT (8X32)

09100-08176

$2.45

10

NUT This part replaces 08310-22088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

WASHER

09161-13001

Unavailable

14

DAMPER, 2ND MUFFLER

14770-14500

Unavailable

15

GASKET, 2ND MUF This part replaces 14771-14510.

14771-14510-H17

Unavailable

16

CLAMP

14772-14500

Unavailable

17

BOLT This part replaces 01107-06258.

01500-06257

$1.97

18

WASHER This part replaces 09160-06006.

09160-06084

$1.78

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER

09161-10008

Unavailable

21

BOLT This part replaces 01517-06258.

01550-06257

$2.30

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

NUT This part replaces 09159-06017.

08319-31067

$2.03

24

NUT This part replaces 08316-26068.

08316-2006A

$2.63
