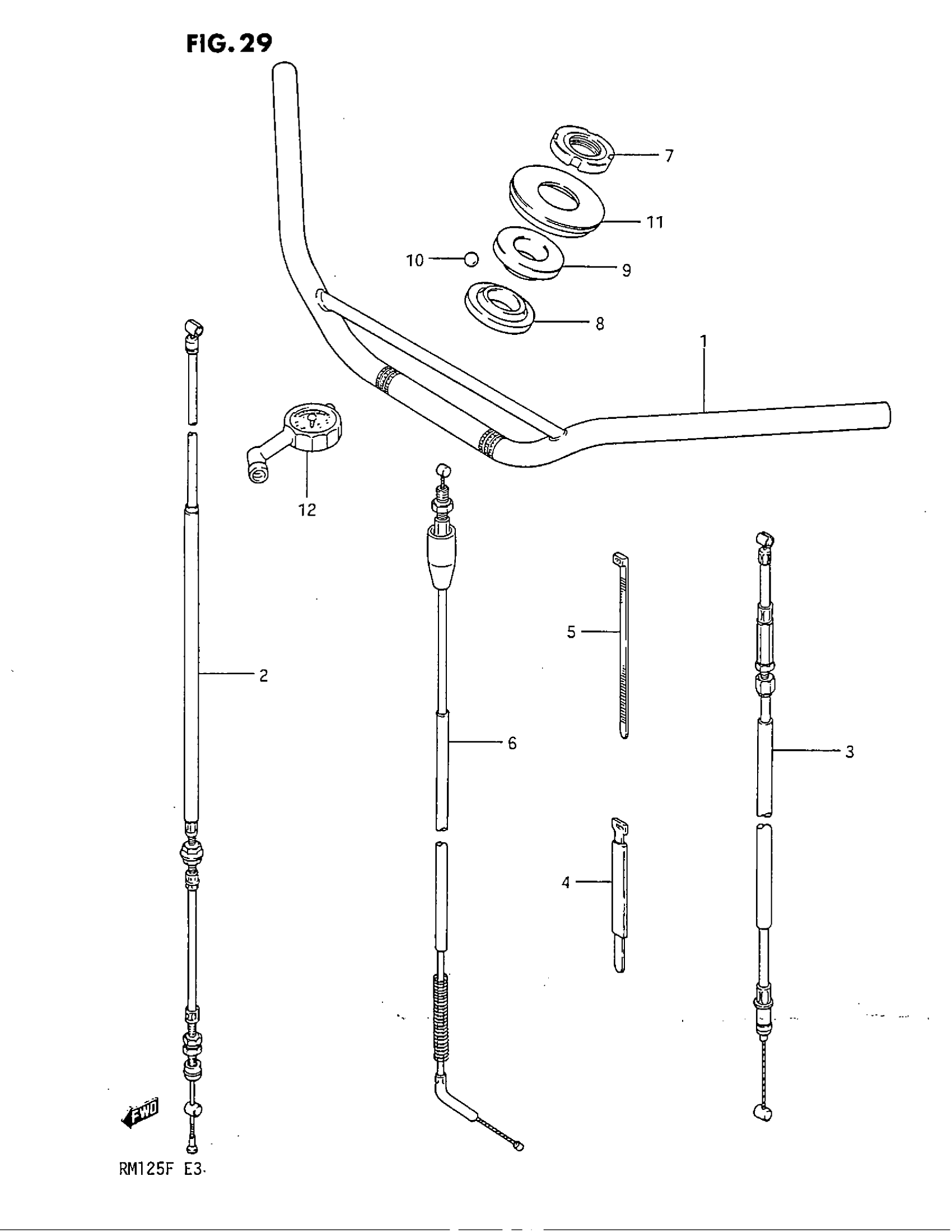

Suzuki RM125 (1985) HANDLEBAR (MODEL E) Diagram

#

Description
Price

1

HANDLEBAR (GOLD) This part replaces 56110-14500-19T.

56110-14600-19T

Unavailable

2

CABLE ASSY, FRONT BRAKE This part replaces 58110-14500.

58110-14501

Unavailable

3

CABLE ASSY, CLUTCH

58210-14500

Unavailable

4

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

5

CLAMP, NO.2

09407-25401

$4.66

6

CABLE, THROTTLE This part replaces 58300-14500.

58300-40X03

Unavailable

7

NUT, STEERING STEM

51631-40200

Unavailable

8

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

9

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

10

STEEL BALL

06111-08003

$1.49

11

DUST SEAL, UPPER

51643-40200

$7.96

12

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
