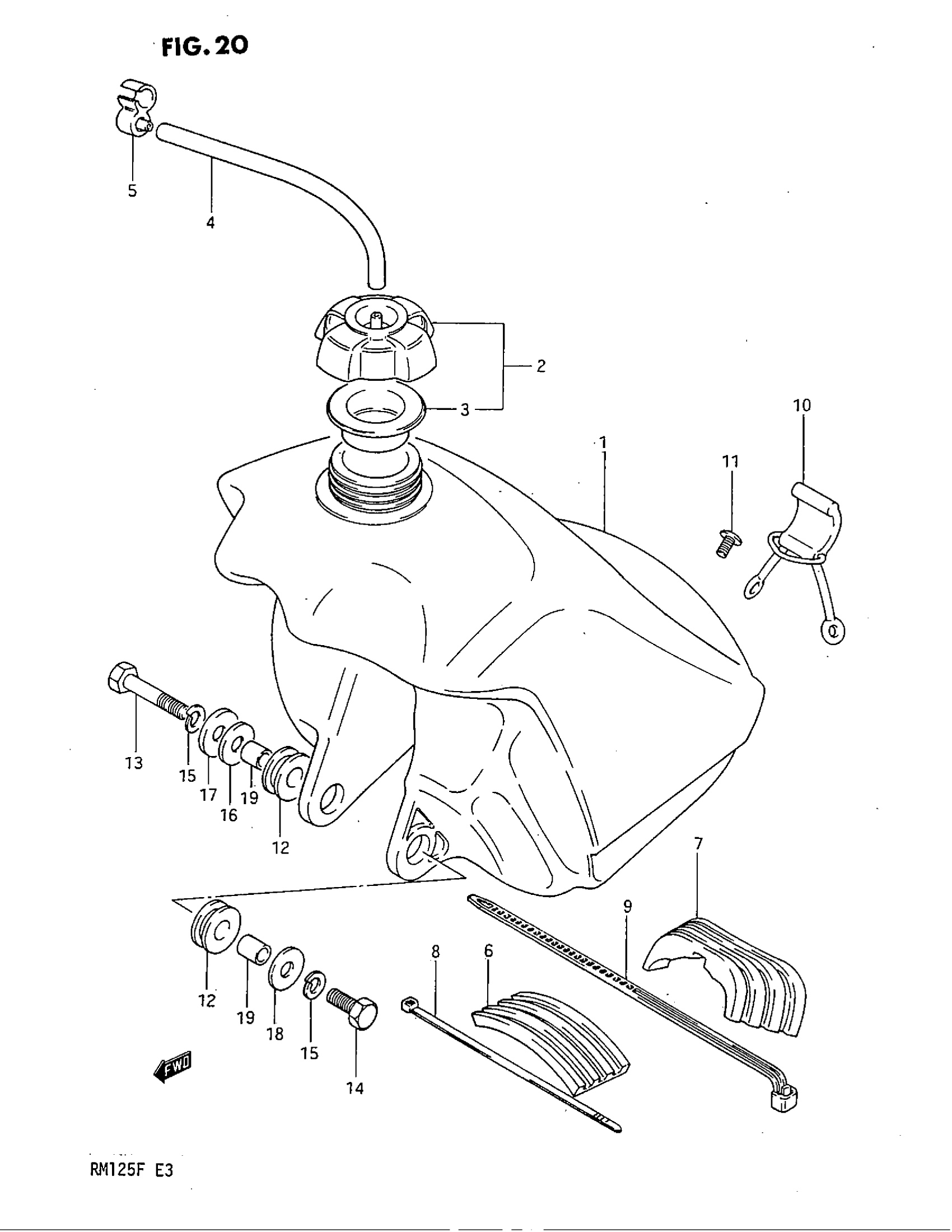

Suzuki RM125 (1985) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44101-14840-163.

44101-14841-25Y

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

$22.96

3

GASKET This part replaces 44248-40400.

44248-05211

$3.76

4

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

5

CLAMP

44486-40200

$4.88

6

CUSHION, UPPER FRONT

44541-14500

$8.28

7

CUSHION, UPPER REAR This part replaces 44542-14500.

44542-01B00

Unavailable

8

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

9

CLAMP, REAR

09407-25402

$4.64

10

BAND, REAR

44560-14500

Unavailable

11

SCREW This part replaces 09125-06009.

09125-06073

$1.84

12

CUSHION

09320-12030

$2.53

13

NO DESCRIPTION AVAILABLE This part replaces 09100-08002.

09100-08290

Unavailable

14

BOLT This part replaces 01107-08308.

01500-08307

$3.04

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER, RH INNER

09160-08032

$2.30

17

WASHER This part replaces 09160-08035.

09160-08130

$2.03

18

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

19

SPACER This part replaces 09180-08003.

09180-08191

$2.53
