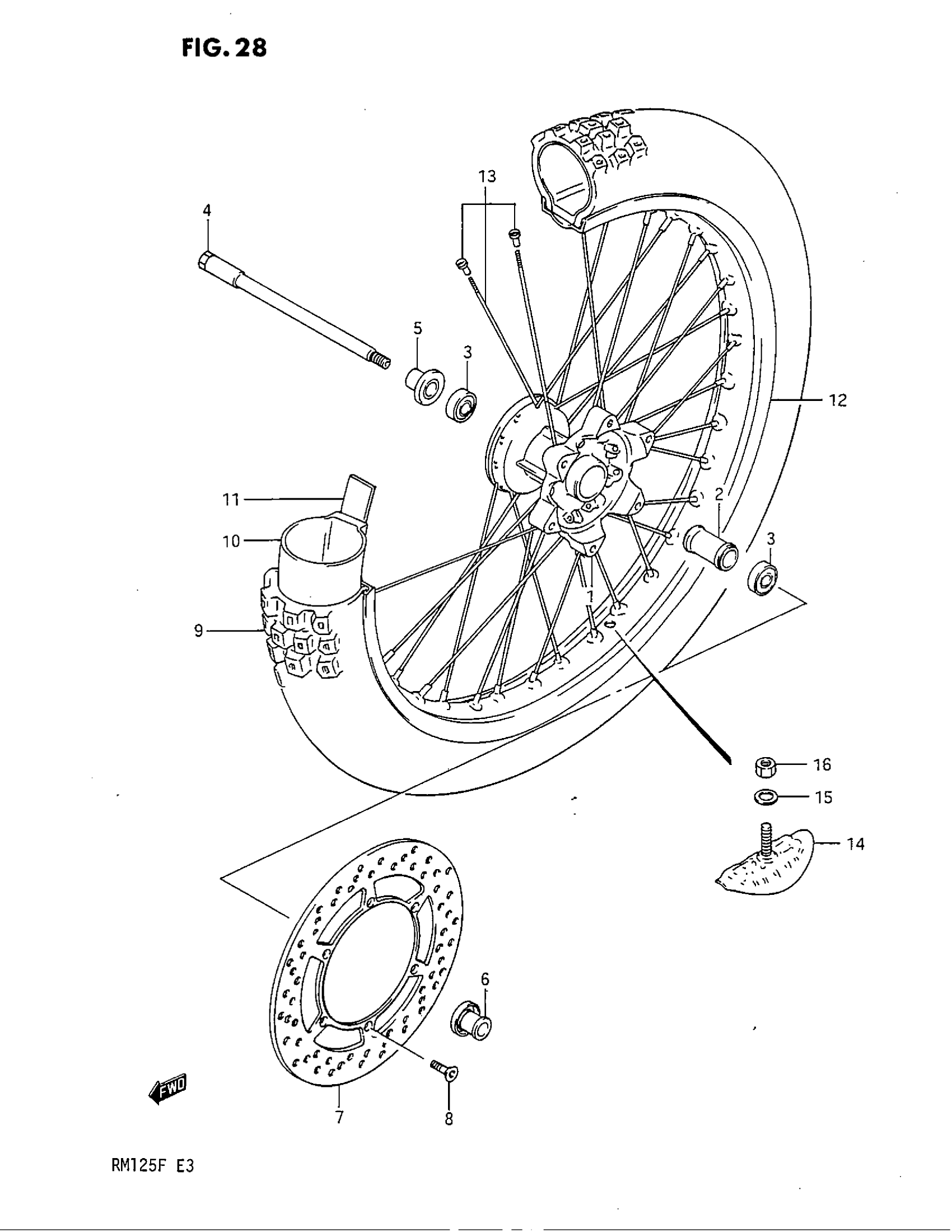

Suzuki RM125 (1985) FRONT WHEEL (MODEL F) Diagram

#

Description
Price

1

HUB, FRONT WHEEL This part replaces 54111-14500.

54111-14501

Unavailable

2

SPACER, FRONT HUB

54730-14100

Unavailable

3

BEARING

08123-62027

$18.57

4

AXLE, FRONT This part replaces 54711-14510.

54711-14500

Unavailable

5

SPACER, AXLE RH (15X22X17.5) This part replaces 54740-14500.

54740-14501

Unavailable

6

SPACER, AXLE, LH

54750-14501

Unavailable

7

DISK, FRONT BRAKE This part replaces 59221-14500.

59221-14510

Unavailable

8

SCREW This part replaces 02122-06168.

02122-06167

$1.49

9

TIRE, FRONT (90/80-21) | DUNLOP

55100-14550

Unavailable

10

TIRE, FRONT This part replaces 55200-14540.

55200-16511

$36.73

11

PROTECTOR

55261-14540

$3.83

12

RIM, FRONT WHEEL (1.60X21)

55311-14510

Unavailable

13

SPOKE SET, FRONT WHEEL

55320-14510

Unavailable

14

STOPPER, BEAD

65270-14300

$52.73

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NUT This part replaces 08310-12088.

08310-00087

$2.13
