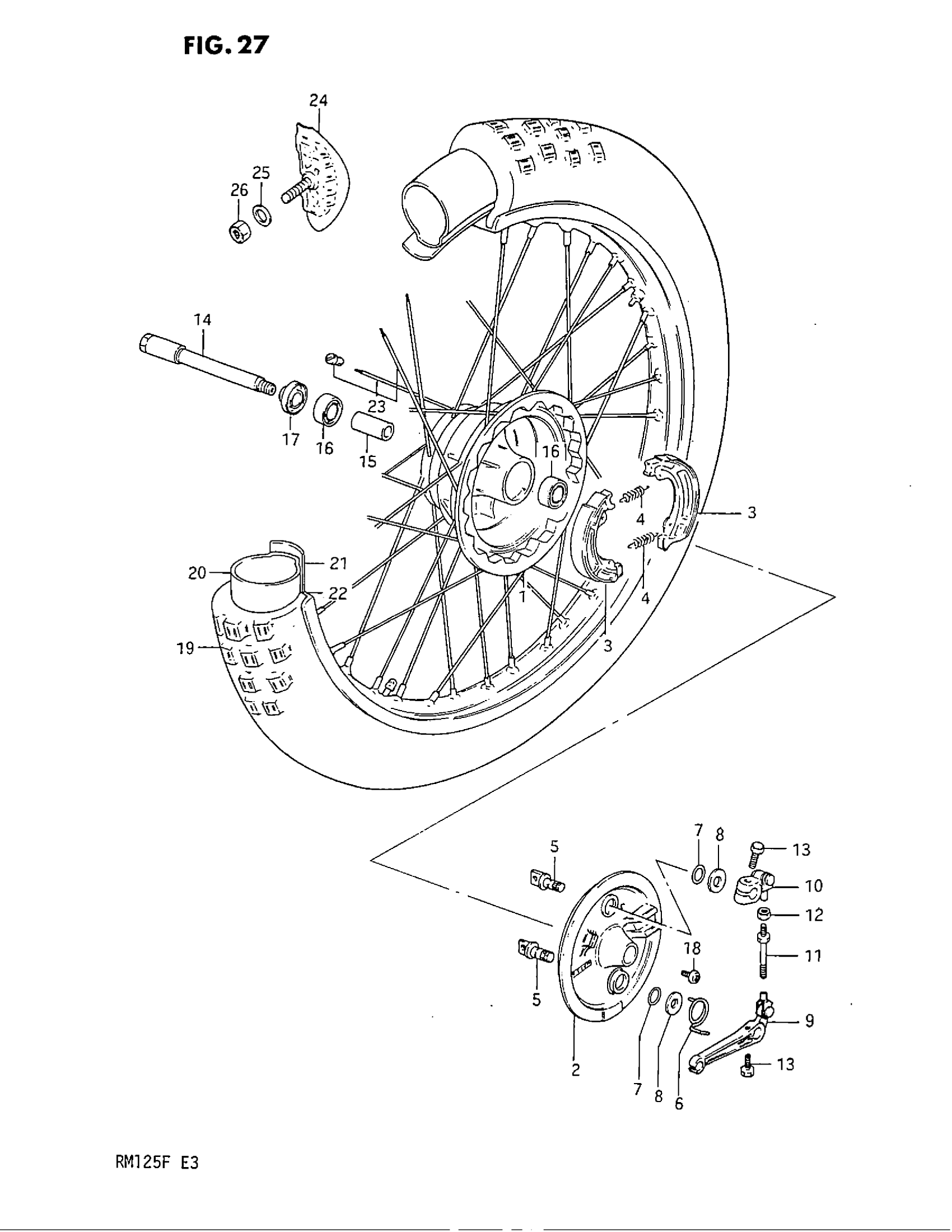

Suzuki RM125 (1985) FRONT WHEEL (MODEL E) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54110-14121

Unavailable

2

PANEL, FRONT HUB

54210-14500

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-14300.

54400-14840

Unavailable

4

SPRING

09443-09017

Unavailable

5

CAM, BRAKE

54441-14310

Unavailable

6

SPRING

09448-32014

Unavailable

7

DUST SEAL

09280-14008

Unavailable

8

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

9

LEVER ASSY, BRAKE CAM, NO.1

54400-14500

Unavailable

10

LEVER ASSY, BRAKE CAM, NO.2

54500-14300

Unavailable

11

ROD, BRAKE CAM

54471-14300

Unavailable

12

.NUT This part replaces 08310-22068.

08310-00067

$2.13

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

AXLE, FRONT

54711-14500

Unavailable

15

SPACER

54730-14100

Unavailable

16

BEARING, FRONT HUB OUTER This part replaces 09262-15011.

09262-15024

$24.83

17

SPACER, RH

54740-14200

Unavailable

18

SCREW This part replaces 02112-06108.

02112-06107

$1.49

19

TIRE, FRONT (90/80-21) | DUNLOP

55100-14540

Unavailable

20

TIRE, FRONT This part replaces 55200-40450.

55200-16511

$36.73

21

PROTECTOR, INNER TUBE This part replaces 55261-40450.

55261-14540

$3.83

22

RIM, WHEEL (1.60-21)

55311-14500

Unavailable

23

SPOKE ASSY

55320-14111

Unavailable

24

STOPPER, BEAD

65270-14300

$52.73

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

NUT This part replaces 08310-22088.

08310-00087

$2.13
