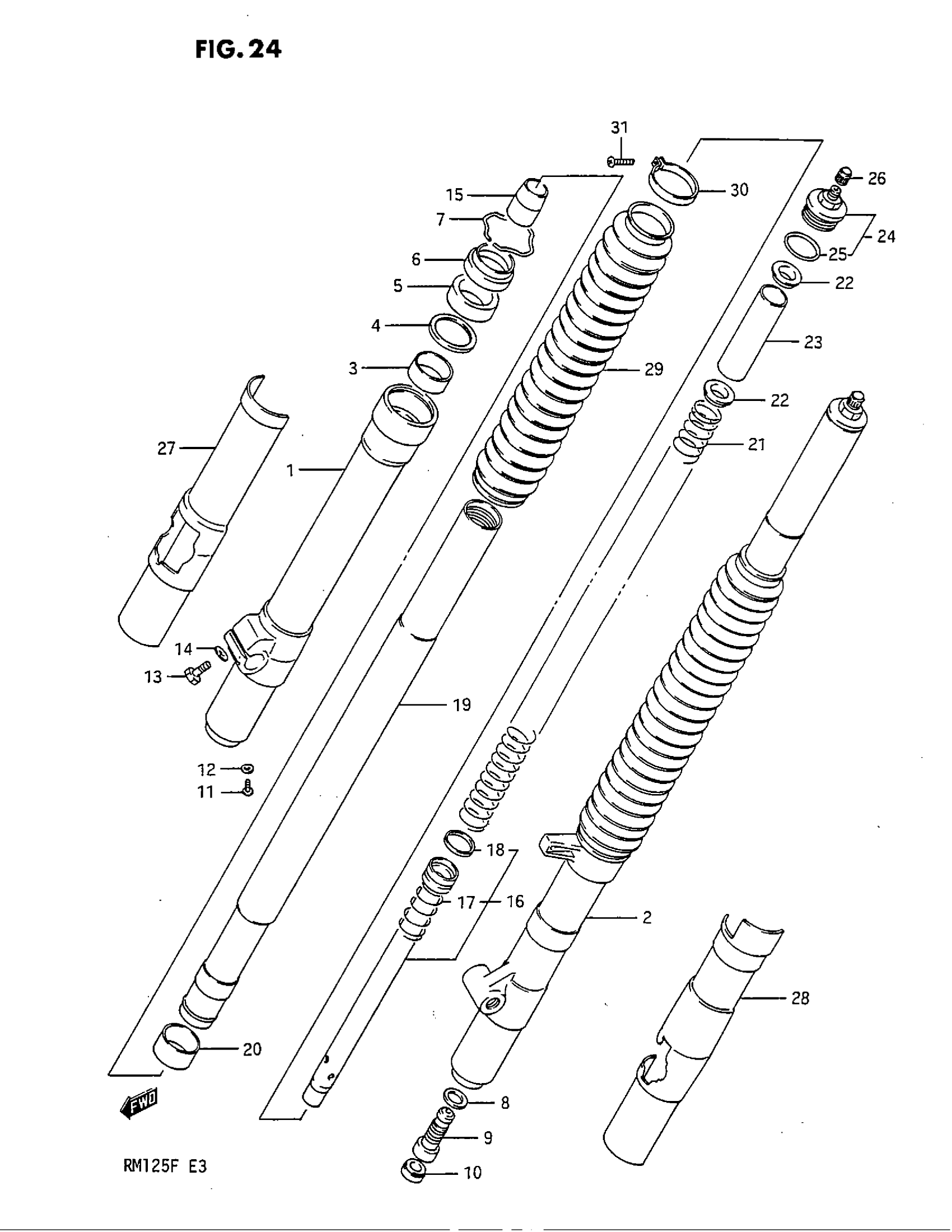

Suzuki RM125 (1985) FRONT FORK (MODEL F) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-14530

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 28

51104-14530

Unavailable

1

OUTER TUBE, RH

51130-14500

Unavailable

2

OUTER TUBE, LH

51140-14520

Unavailable

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

$16.13

4

WASHER

51158-14200

$5.05

5

OIL SEAL

51153-14330

$13.63

6

DUST SEAL

51173-14330

$10.53

7

RING, STOPPER

51156-14200

$5.05

8

GASKET

51148-14330

Unavailable

9

VALVE

51770-14520

Unavailable

10

CAP

51189-14500

Unavailable

11

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

12

GASKET

51183-03010

$2.07

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

PIECE, OIL LOCK

51195-14330

Unavailable

16

CYLINDER

51146-14530

Unavailable

17

SPRING

51177-14330

$10.32

18

RING

51196-14330

Unavailable

19

INNER TUBE

51110-14520

Unavailable

20

PISTON

51121-14200

Unavailable

21

SPRING

51171-14520

Unavailable

22

GUIDE, SPRING This part replaces 51172-14500.

51172-14200

Unavailable

23

SPACER

51176-14520

Unavailable

24

CAP

51351-14500

Unavailable

25

.O RING This part replaces 51117-14200.

51117-14201

$2.47

26

CAP, VALVE

51294-20400

$7.37

27

PROTECTOR, RH (YELLOW)

51201-14500-163

Unavailable

28

PROTECTOR, LH (YELLOW)

51202-14501-163

Unavailable

29

BOOT This part replaces 51571-14500-19F.

51571-14500-38K

Unavailable

30

BAND, BOOT UPPER This part replaces 51575-14520.

51575-14500

Unavailable

31

SCREW This part replaces 02112-04108.

02112-04107

$1.55
