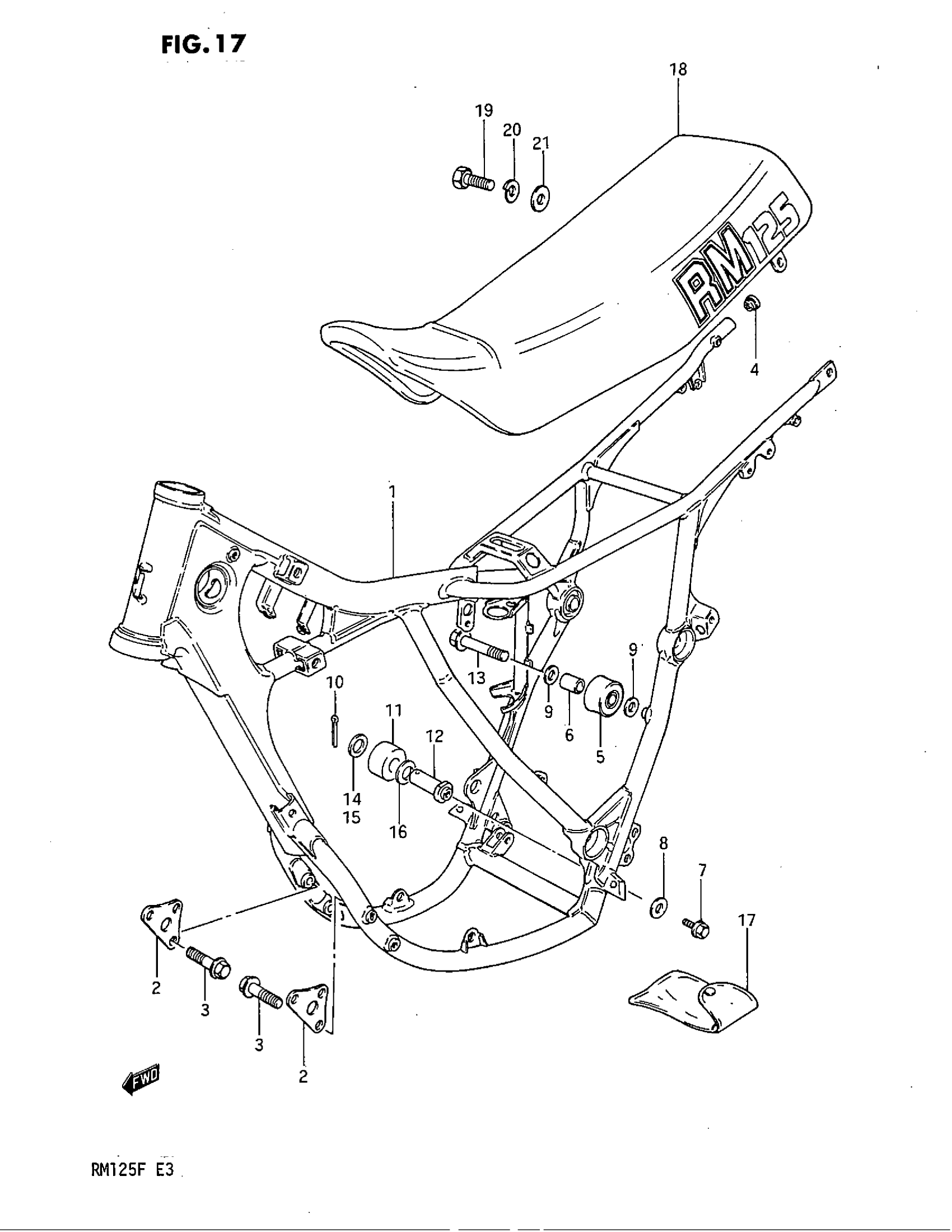

Suzuki RM125 (1985) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL E This part replaces 41100-14500-19F.

41100-14502-19F

Unavailable

1

FRAME (BLUE) | MODEL F,TO 41100-14502-19FWITH 41991-14501(2PCS) This part replaces 41100-14501-19F.

41100-14502-19F

Unavailable

1

FRAME (BLUE) | MODEL F

41100-14502-19F

Unavailable

2

PLATE, ENGINE MOUNTING (T5.0) | FOR 41100-14501-19F This part replaces 41991-14500.

41991-14501

Unavailable

2

PLATE, ENGINE MOUNTING (T5.0) | FOR 41100-14502-19F

41991-14501

Unavailable

3

BOLT

09103-08071

$5.65

4

PLUG | MODEL E

09250-16014

Unavailable

5

ROLLER, CHAIN CONTROL UPPER This part replaces 43910-14500.

43910-01B00

Unavailable

6

SPACER This part replaces 09180-08119.

09180-08156

$6.70

7

BOLT This part replaces 01517-06168.

01550-06167

$2.30

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

9

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

ROLLER, CAIN CONTROL

43911-14200

Unavailable

12

BOSS, CHAIN ROLLER This part replaces 43915-14300.

43915-14301

Unavailable

13

BOLT

09103-08043

$3.18

14

WASHER | MODEL E This part replaces 08322-11128.

08322-01127

$1.84

15

WASHER | MODEL F This part replaces 09160-12050.

09160-12088

$2.00

16

WASHER | MODEL F This part replaces 49317-14A00.

49317-15A00

Unavailable

17

TOOL SET

09800-00279

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 45100-14500-54G.

45100-14X00-58D

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 45100-14500-58D.

45100-14X00-58D

Unavailable

19

BOLT This part replaces 01107-08258.

01500-08257

$2.50

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13
