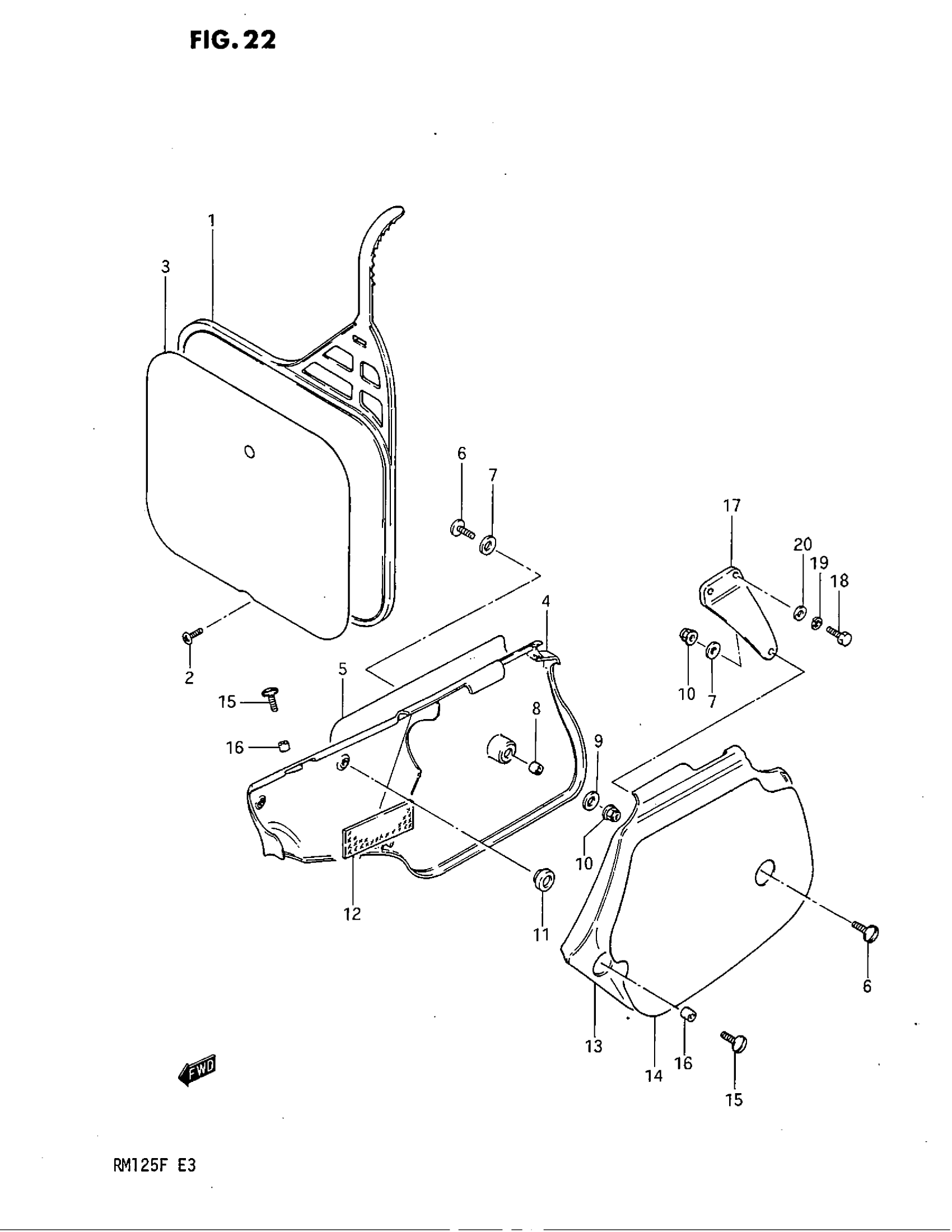

Suzuki RM125 (1985) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) | MODEL E

94911-14500-163

Unavailable

1

PLATE, FRONT NUMBER (YELLOW) | MODEL F This part replaces 94911-14501-163.

94911-00B10-25Y

$64.72

2

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

3

TAPE (BLACK)

68255-14500-291

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 47111-14500-163.

47111-14500-13L

Unavailable

5

EMBLEM, RH (BLACK)

68132-14500-291

Unavailable

6

SCREW, REAR

09125-06046

$10.55

7

WASHER This part replaces 94927-14100.

09160-06084

$1.78

8

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

9

WASHER, INNER RH

09168-10024

Unavailable

10

NUT This part replaces 08319-31066.

08319-31067

$2.03

11

CUSHION This part replaces 09321-10013.

09321-10018

$5.45

12

HEAT SHIELD, FRAME COVER

47122-14500

Unavailable

13

COVER, FRAME LH (YELLOW)

47211-14500-163

Unavailable

14

EMBLEM, LH (BLACK)

68142-14500-291

Unavailable

15

SCREW, FRONT

09125-06045

$11.07

16

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

17

STAY, FRAME COVER LH

47225-14500

Unavailable

18

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

19

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

20

WASHER

09160-06019

$1.49
