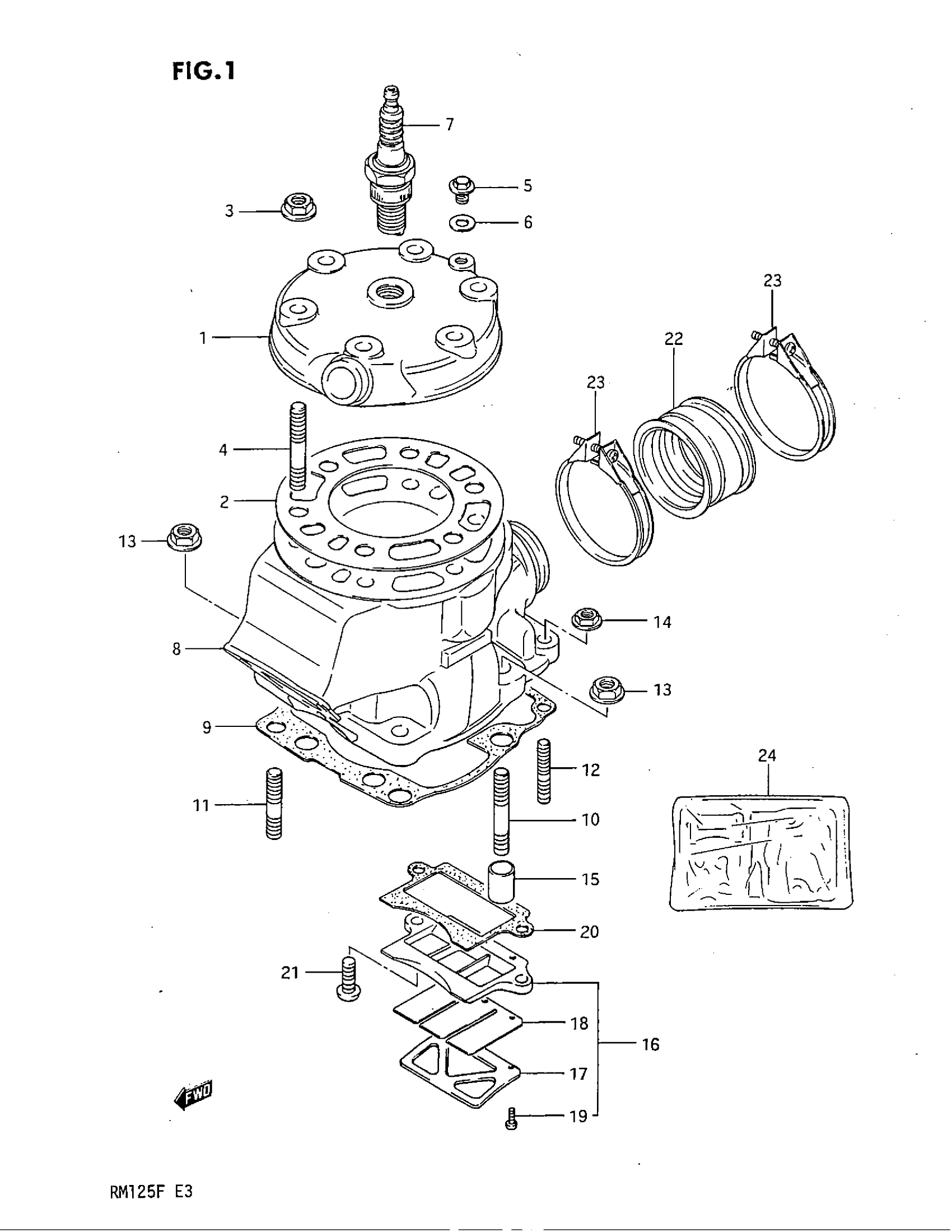

Suzuki RM125 (1985) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | MODEL E

11111-14500

Unavailable

1

CYLINDER HEAD | MODEL F

11111-14510

Unavailable

2

GASKET CYL HEAD This part replaces 11141-14500.

11141-14500-H17

Unavailable

2

GASKET CYL HEAD | OPT This part replaces 11141-14510.

11141-14500-H17

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

STUD BOLT (8X35)

09108-08143

$3.78

5

BOLT | MODEL E

09360-06007

$2.30

5

UNION | MODEL F This part replaces 09360-06015.

09360-06015-XC0

Unavailable

6

GASKET

09168-06004

$1.49

7

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

7

SPARK PLUG (ND,W27ES-ZU) This part replaces 09482-00271-111.

09482-00396-111

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 11210-14504.

11210-14512

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 11210-14511.

11210-14512

Unavailable

9

GASKET,CYLINDER This part replaces 11241-14501.

11241-14501-H17

Unavailable

10

STUD BOLT (8X35) This part replaces 09108-08094.

09108-08199

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 09108-08095.

09108-08228

Unavailable

12

STUD BOLT (6X20) This part replaces 09108-06066.

09108-06086

Unavailable

13

NUT This part replaces 08316-16085.

08316-1008B

$2.66

14

NUT This part replaces 08316-16064.

08316-1006B

$2.50

15

PIN

04211-11169

$1.78

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 19 This part replaces 13150-14500.

13150-36A00

Unavailable

17

STOPPER

13152-14500

Unavailable

18

VALVE, REED This part replaces 13153-14500.

13153-16700

Unavailable

19

SCREW This part replaces 13154-14500.

02112-0308A

$1.80

20

GASKET (NA) This part replaces 13156-14500.

13156-14500-H17

Unavailable

21

SCREW This part replaces 02112-06168.

02112-06167

$1.49

22

PIPE, INTAKE | MODEL E

13111-14500

Unavailable

22

PIPE, INTAKE | MODEL F

13111-14510

Unavailable

23

CLAMP

09402-52306

$4.91

24

GASKET,WATER PU | OPT This part replaces 11400-14890.

11400-14894

Unavailable
