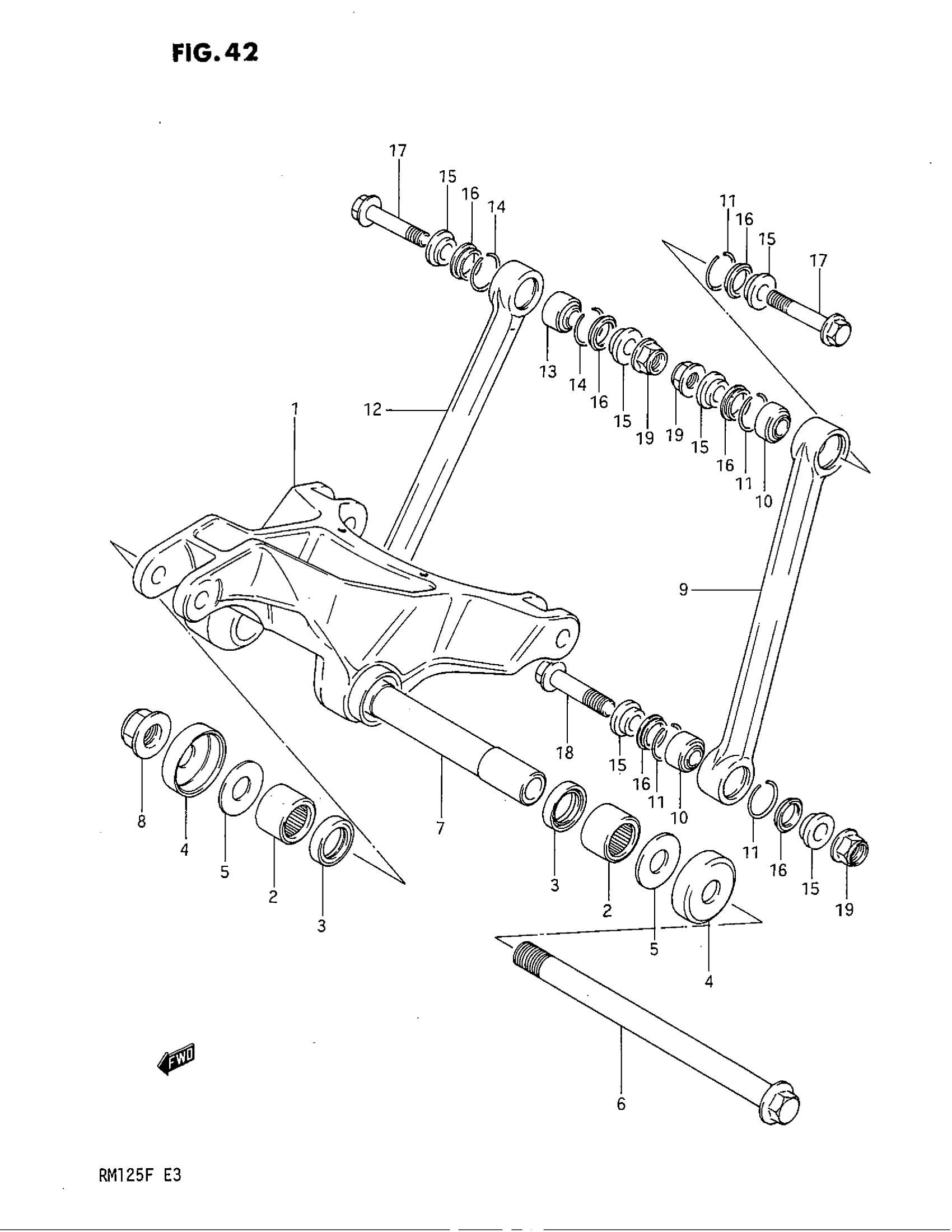

Suzuki RM125 (1985) CUSHION LEVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 62601-14840.

62601-14841

Unavailable

2

BEARING

09263-20053

$27.58

3

DUST SEAL, INNER

62624-14500

$6.01

4

DUST SEAL

61262-45002

$7.97

5

THRUST WASHER

08211-14343

$3.23

6

SHAFT

62621-14500

Unavailable

7

SPACER

62623-14501

Unavailable

8

NUT This part replaces 09159-14017.

08319-3114A

$9.66

9

ROD SET, CUSHION LH | Includes Item(s) 10 - 11

62601-14850

Unavailable

10

BEARING

09269-10005

Unavailable

11

RING, STOPPER

62657-14500

Unavailable

12

ROD SET, CUSHION RH | Includes Item(s) 13 - 14

62601-14860

Unavailable

13

BEARING

09269-10005

Unavailable

14

RING, STOPPER

62657-14500

Unavailable

15

SPACER This part replaces 62316-14510.

62316-14511

Unavailable

16

DUST SEAL

62647-14510

Unavailable

17

BOLT, UPPER

62648-14500

$4.34

18

BOLT, RR CUSHION ROD LWR

62658-14500

$6.55

19

NUT This part replaces 08319-31108.

08319-31107

$2.73
