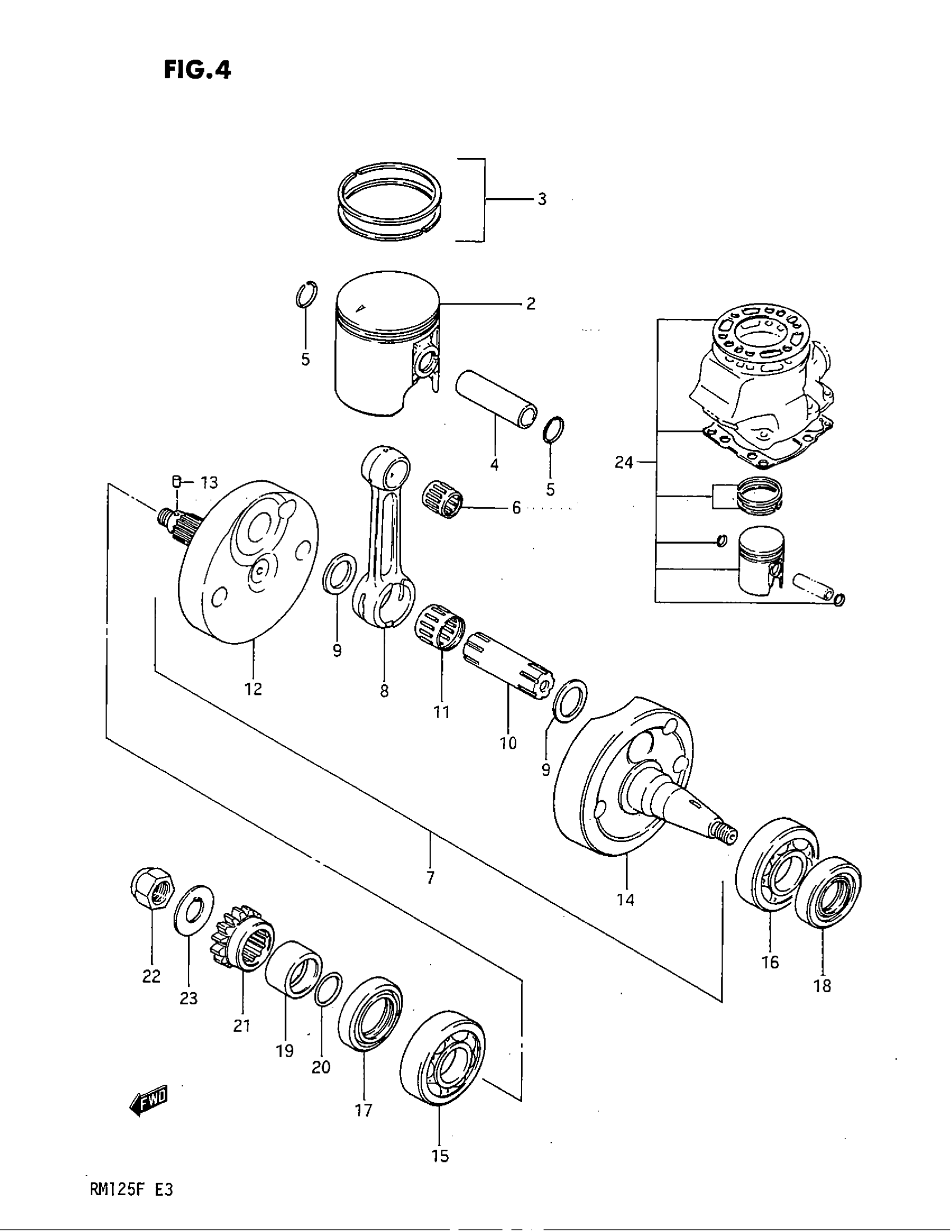

Suzuki RM125 (1985) CRANKSHAFT Diagram

#

Description
Price

1

PISTON KIT (STD) | OPT MODEL E

12101-14840

Unavailable

1

PISTON KIT (OS:0.25) | OPT MODEL E

12101-14840-025

Unavailable

1

PISTON KIT (OS:0.50) | OPT MODEL E

12101-14840-050

Unavailable

1

PISTON KIT (STD) | OPT MODEL F

12101-14850

Unavailable

1

PISTON KIT (OS:0.25) | OPT MODEL F

12101-14850-025

Unavailable

1

PISTON KIT (OS:0.50) | OPT MODEL F; Includes Item(s) 2 - 6

12101-14850-050

Unavailable

2

PISTON | MODEL E This part replaces 12110-14502.

12110-14503

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT MODEL E This part replaces 12110-14502-025.

12103-14840-025

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT MODEL E This part replaces 12110-14502-050.

12103-14840-050

Unavailable

2

PISTON | MODEL F This part replaces 12110-14511.

12110-14513

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT MODEL F This part replaces 12110-14511-025.

12103-14850-025

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT MODEL F This part replaces 12110-14511-050.

12103-14850-050

Unavailable

3

RING SET, PISTON (STD)

12140-14110

Unavailable

3

RING SET, PISTON (OS:0.25) | OPT

12140-14110-025

Unavailable

3

RING SET, PISTON (OS:0.5) | OPT

12140-14110-050

Unavailable

4

PIN, PISTON

12151-01B00

Unavailable

5

RING

09381-14001

$1.49

6

BEARING, PISTON PIN This part replaces 09263-14012.

09263-14024

Unavailable

7

CRANKSHAFT ASSY | Includes Item(s) 8 - 14

12200-14502

Unavailable

8

ROD, CONNECTING

12161-14500

Unavailable

9

WASHER

09160-22010

$5.57

10

PIN, CRANK This part replaces 12211-14501.

12211-27C00

$40.10

11

BEARING (22X28X16) This part replaces 09263-22034.

09263-22060

$76.18

12

CRANKSHAFT, RH

12220-14501

Unavailable

13

PIN This part replaces 06211-03052.

04221-03059

$1.72

14

CRANKSHAFT, LH

12261-14501

Unavailable

15

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

16

BEARING, LH This part replaces 09262-25064.

09262-25070-0A0

$37.33

17

OIL SEAL, RH

09289-28007

Unavailable

18

OIL SEAL, LH

09283-18004

$5.24

19

SPACER

12359-14500

Unavailable

20

O RING

09280-20004

$1.58

21

GEAR, PRIMARY DRIVE (NT:19)

21111-40202

Unavailable

22

NUT

09159-12010

Unavailable

23

WASHER

09166-12007

Unavailable

24

ENGINE TOP END KIT (STD) | OPT MODEL E

12100-14890

Unavailable

24

ENGINE TOP END KIT (OS:0.25) | OPT MODEL E

12100-14890-025

Unavailable

24

ENGINE TOP END KIT (STD) | OPT MODEL F

12101-14820

Unavailable

24

ENGINE TOP END KIT (OS:0.25) | OPT MODEL F

12101-14820-025

Unavailable
