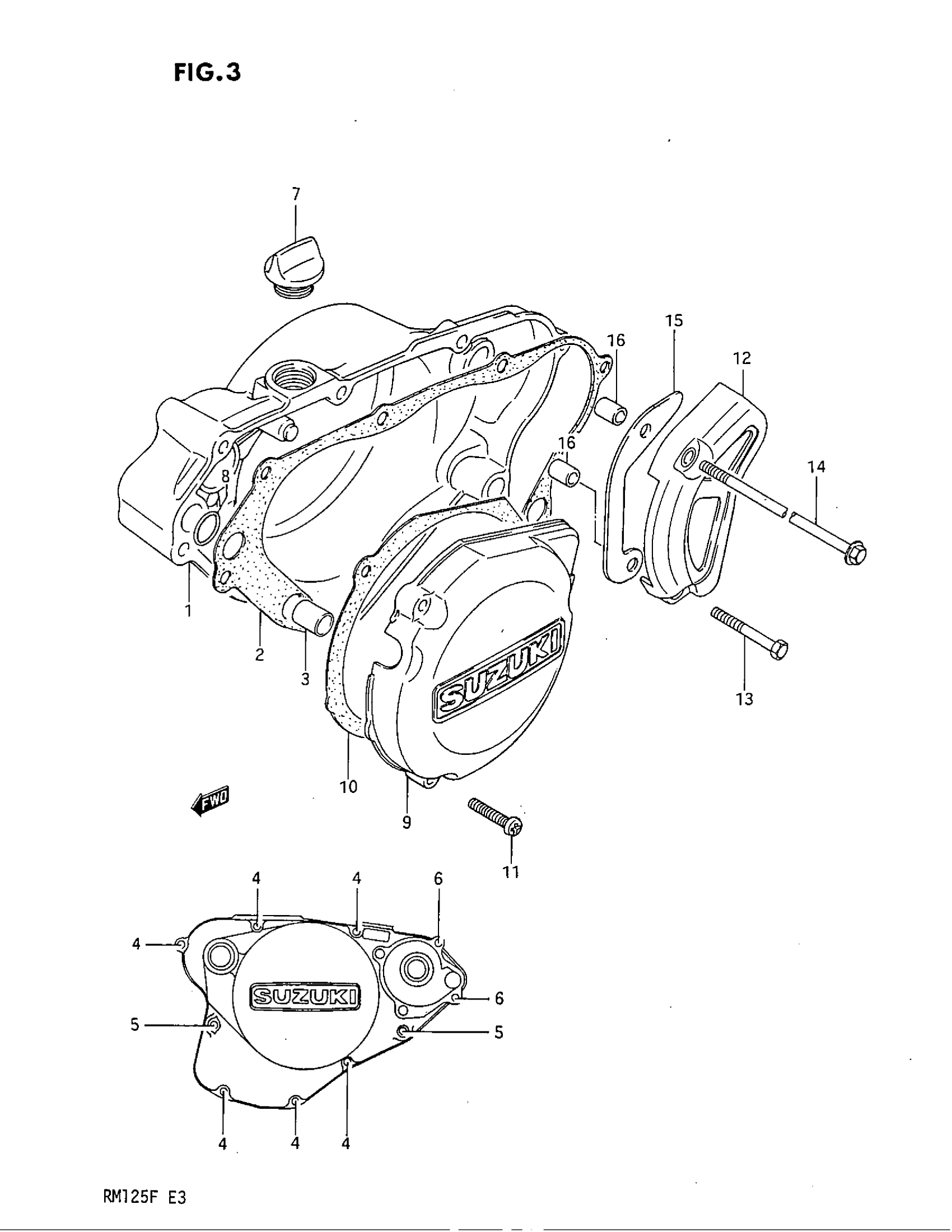

Suzuki RM125 (1985) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL E

11341-14500

Unavailable

1

COVER, CLUTCH | MODEL F

11341-14510

Unavailable

2

GASKET,CL COVER This part replaces 11482-14500.

11482-14500-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

5

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

6

SCREW This part replaces 02112-06705.

02112-0670B

$3.15

7

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

8

O RING(D:1.9,ID This part replaces 09280-15002.

09280-15024

$3.60

9

COVER, MAGNETO | MODEL E

11351-14500

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 11351-14510.

11351-14511

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 11483-14500.

11483-14500-H17

Unavailable

11

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

12

COVER,SPROCKET | MODEL E This part replaces 11360-14500.

11360-01BV0

Unavailable

12

COVER,SPROCKET | MODEL F This part replaces 11360-14510.

11360-01BV0

Unavailable

13

BOLT This part replaces 01107-06405.

01500-0640B

$2.62

14

BOLT (6X105)

09103-06067

$2.48

15

PLATE, CHAIN GUIDE

27641-14501

Unavailable

16

SPACER

09180-07004

$2.30
