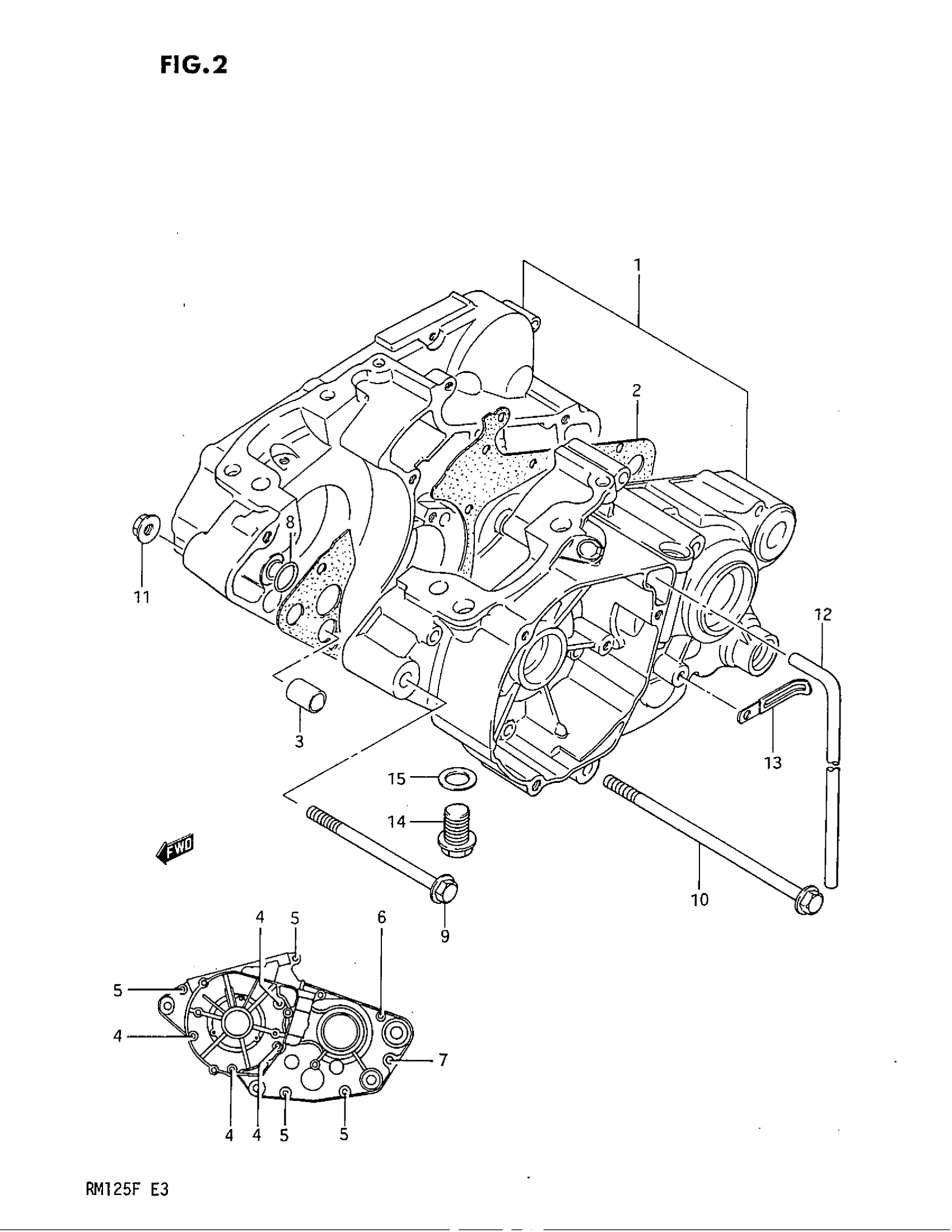

Suzuki RM125 (1985) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 11301-14830.

11301-14831

Unavailable

1

CRANKCASE SET | MODEL F; Includes Item(s) 2 - 8

11301-14841

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14500.

11481-14500-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06455.

02112-0645B

$2.19

5

SCREW This part replaces 02112-06504.

02112-0650B

$2.42

6

SCREW This part replaces 02112-06555.

02112-0655B

$2.53

7

SCREW This part replaces 02112-06654.

02112-0665B

$2.71

8

O RING

09280-14004

$1.65

9

BOLT (8X95)

09103-08183

Unavailable

10

BOLT (8X150)

09103-08113

Unavailable

11

NUT This part replaces 08319-31085.

08319-3108A

$2.32

12

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

13

CLAMP | MODEL E This part replaces 09404-06412.

09404-06039

$1.74

13

CLAMP | MODEL F This part replaces 09404-06402.

09404-06039

$1.74

14

PLUG, DRAIN This part replaces 09247-14020.

09247-14025

$2.79

15

GASKET

09168-14004

$1.83
