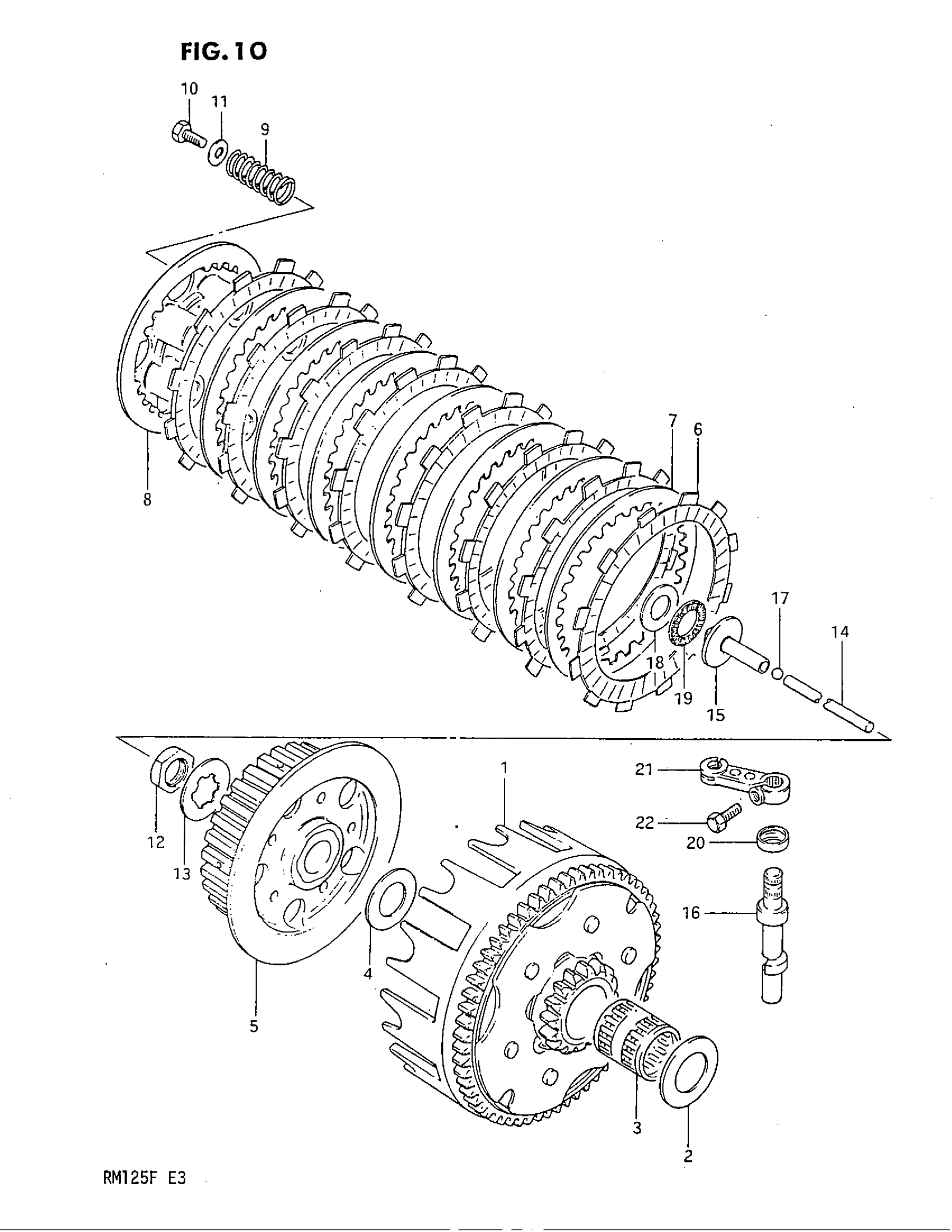

Suzuki RM125 (1985) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:60/16

21200-14103

Unavailable

2

WASHER, SEC DRIVEN This part replaces 08211-20321.

09181-20223

$2.92

3

BEARING

09263-20023

$19.98

4

WASHER

08211-17302

$3.15

5

HUB, SLEEVE

21410-14103

Unavailable

6

PLATE, DRIVE | MODEL E This part replaces 21441-11900.

21441-22A01

$14.73

6

PLATE, CLUTCH DRIVE | MODEL F This part replaces 21441-13A00.

21441-13A01

$14.73

7

PLATE, DRIVEN | MODEL E This part replaces 21451-11900.

21451-01B40

$8.40

7

PLATE, CLUTCH DRIVEN (T:1.6) | MODEL F This part replaces 21451-28000.

21451-19A00

$7.58

8

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

9

SPRING

09440-15014

$3.37

10

BOLT

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

NUT This part replaces 09140-16001.

09140-16005

$3.75

13

LOCK WASHER

09167-17002

$1.91

14

ROD, PUSH

23111-14101

$16.87

15

PIECE, PUSH

23121-14111

Unavailable

16

CAMSHAFT, CL RE This part replaces 23261-14500.

23261-14104

Unavailable

17

BALL

06111-07004

$1.49

18

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

19

THRUST BEARING

09263-15003

$8.29

20

OIL SEAL (10X17X5) This part replaces 09285-10002.

09285-10004

$3.37

21

ARM,CLUTCH RELE This part replaces 23271-14101.

23271-14103

$36.17

22

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97
