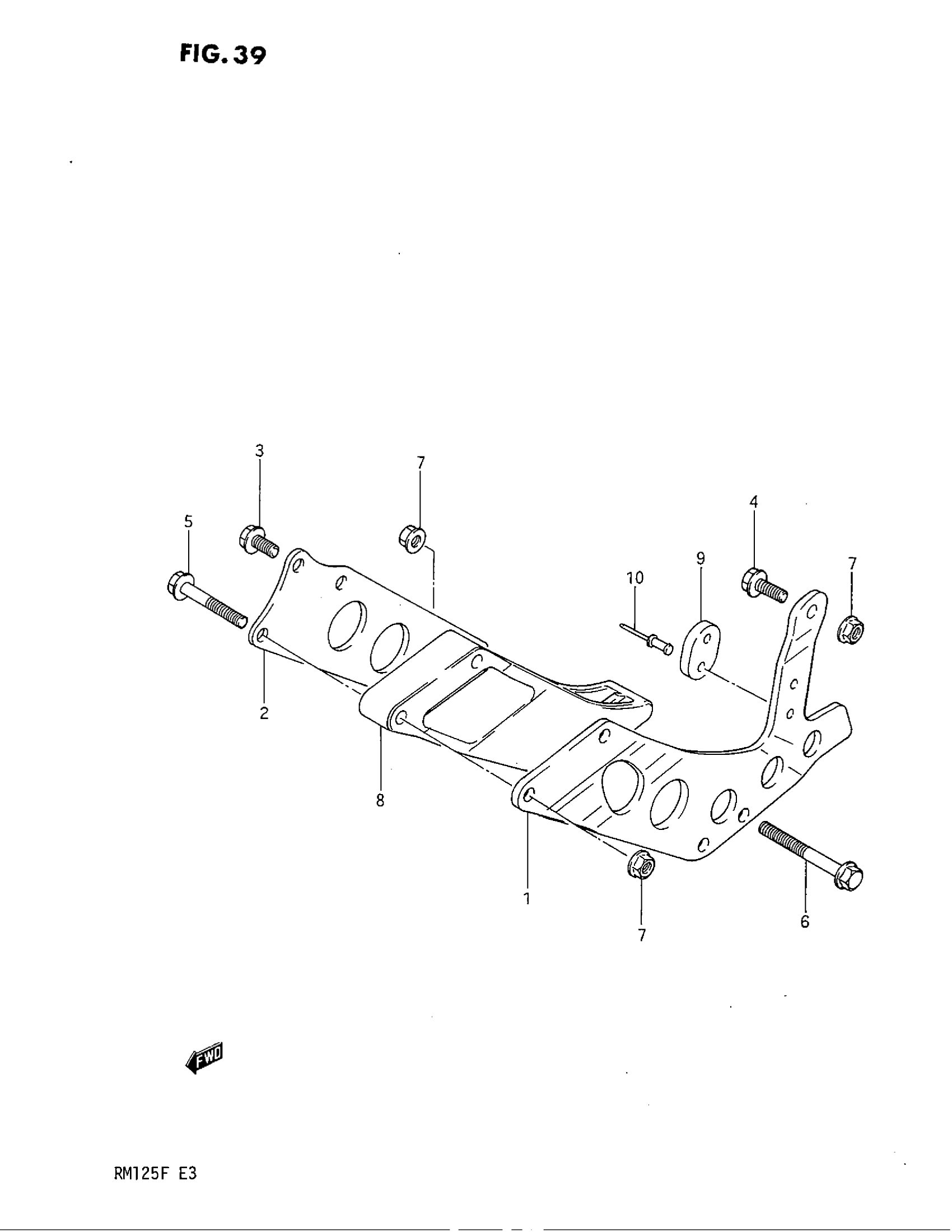

Suzuki RM125 (1985) CHAIN GUIDE Diagram

#

Description
Price

1

GUIDE, CHAIN OUTER | MODEL E

61341-14500

Unavailable

1

GUIDE, CHAIN OUTER | MODEL F

61341-14501

Unavailable

2

GUIDE, CHAIN INNER

61342-14500

Unavailable

3

BOLT This part replaces 01517-06128.

01550-06127

$2.30

4

BOLT This part replaces 01517-06168.

01550-06167

$2.30

5

BOLT This part replaces 01517-06408.

01550-06407

$2.69

6

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

7

NUT This part replaces 08319-31068.

08319-31067

$2.03

8

DEFENSE | MODEL E This part replaces 61348-14500.

61348-14510

Unavailable

8

DEFENSE | MODEL F

61348-14510

Unavailable

9

PAD

61349-40211

Unavailable

10

RIVET

09229-03005

Unavailable
