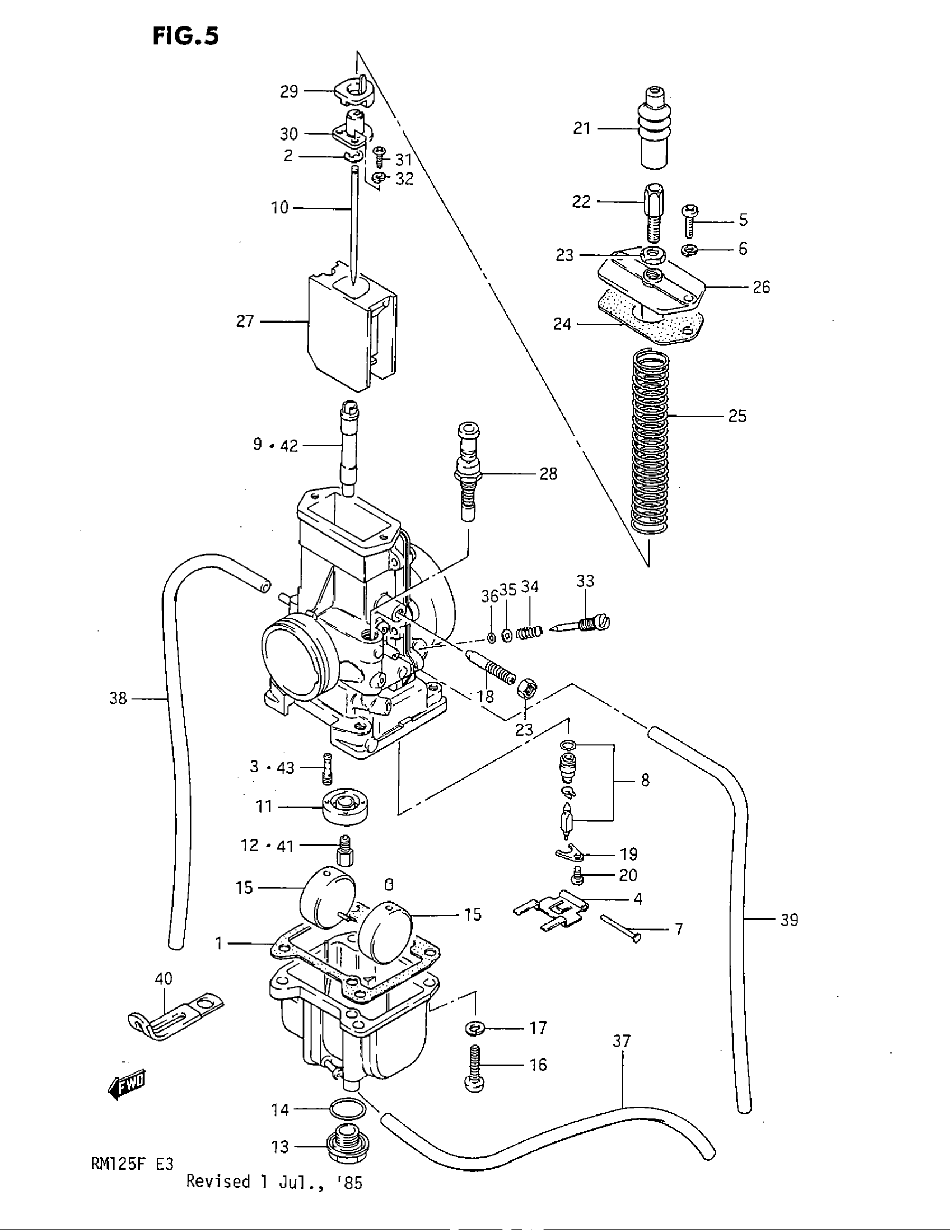

Suzuki RM125 (1985) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL E This part replaces 13200-14500.

13200-01B00

Unavailable

CARBURETOR ASSY | MODEL F; Includes Item(s) 1 - 36 This part replaces 13200-14510.

13200-01B00

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$5.45

3

JET, PILOT (45) | MODEL E

09492-45009

Unavailable

3

JET, PILOT (35) | MODEL F

09492-35004

Unavailable

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-2) | MODEL E

09494-00453

Unavailable

9

JET, NEEDLE (R-0) | MODEL F

09494-00357

Unavailable

10

NEEDLE, JET (6EP05-3) | MODEL E

13383-14500

Unavailable

10

NEEDLE, JET (6FP55-3) | MODEL F

13383-14510

Unavailable

11

RING | MODEL E

13331-14300

Unavailable

11

RING | MODEL F

13331-14510

Unavailable

12

JET, MAIN (270) | MODEL E This part replaces 09491-54001.

09491-54002

Unavailable

12

JET, MAIN (280) | MODEL F This part replaces 09491-56001.

09491-56003

Unavailable

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT

13252-18620

$21.82

16

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

ADJUSTER

13267-14500

Unavailable

19

PLATE, NEEDLE VALVE

13373-39110

$6.64

20

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

21

CAP, ADJUSTER

13681-41510

$11.68

22

ADJUSTER, CABLE

13577-41612

$7.01

23

NUT

13661-16600

$4.64

24

GASKET, TOP

13266-14500

Unavailable

25

SPRING, THROTTLE VALVE

13573-14500

Unavailable

26

TOP

13261-14500

Unavailable

27

VALVE, PISTON (CA:4.0) This part replaces 13551-14500.

13551-01C00

Unavailable

28

PLUNGER ASSY

13400-14500

Unavailable

29

RING

13629-16700

Unavailable

30

CONNECTOR

13398-16700

Unavailable

31

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

32

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

33

SCREW, AIR (1 1/2) | MODEL F

13269-48030

Unavailable

34

SPRING,THROTTLE SCREW | MODEL F

13268-48700

$4.34

35

WASHER | MODEL F This part replaces 13277-44080.

13291-29900

$1.98

36

O-RING | MODEL F This part replaces 13278-44080.

13295-29901

$4.34

37

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

38

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

39

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

40

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

41

JET, MAIN (250) | OPT This part replaces 09491-50003.

09491-50008

Unavailable

41

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

41

JET, MAIN (280) | OPT This part replaces 09491-56001.

09491-56003

Unavailable

41

JET, MAIN (290) | OPT

09491-58002

Unavailable

41

JET, MAIN (300) | OPT

09491-60007

$13.05

42

JET, NEEDLE (Q-8) | OPT

09494-00393

Unavailable

42

JET, NEEDLE (R-0) | OPT

09494-00357

Unavailable

42

JET, NEEDLE (R-2) | OPT

09494-00453

Unavailable

42

JET, NEEDLE (R-4) | OPT

09494-00403

Unavailable

42

JET, NEEDLE (R-6) | OPT

09494-00404

Unavailable

43

JET, PILOT (30) | OPT This part replaces 09492-30003.

09492-30006

$9.55

43

JET, PILOT (35) | OPT

09492-35004

Unavailable

43

JET, PILOT (40) | OPT

09492-40004

$10.05

43

JET, PILOT (50) | OPT

09492-50010

Unavailable
