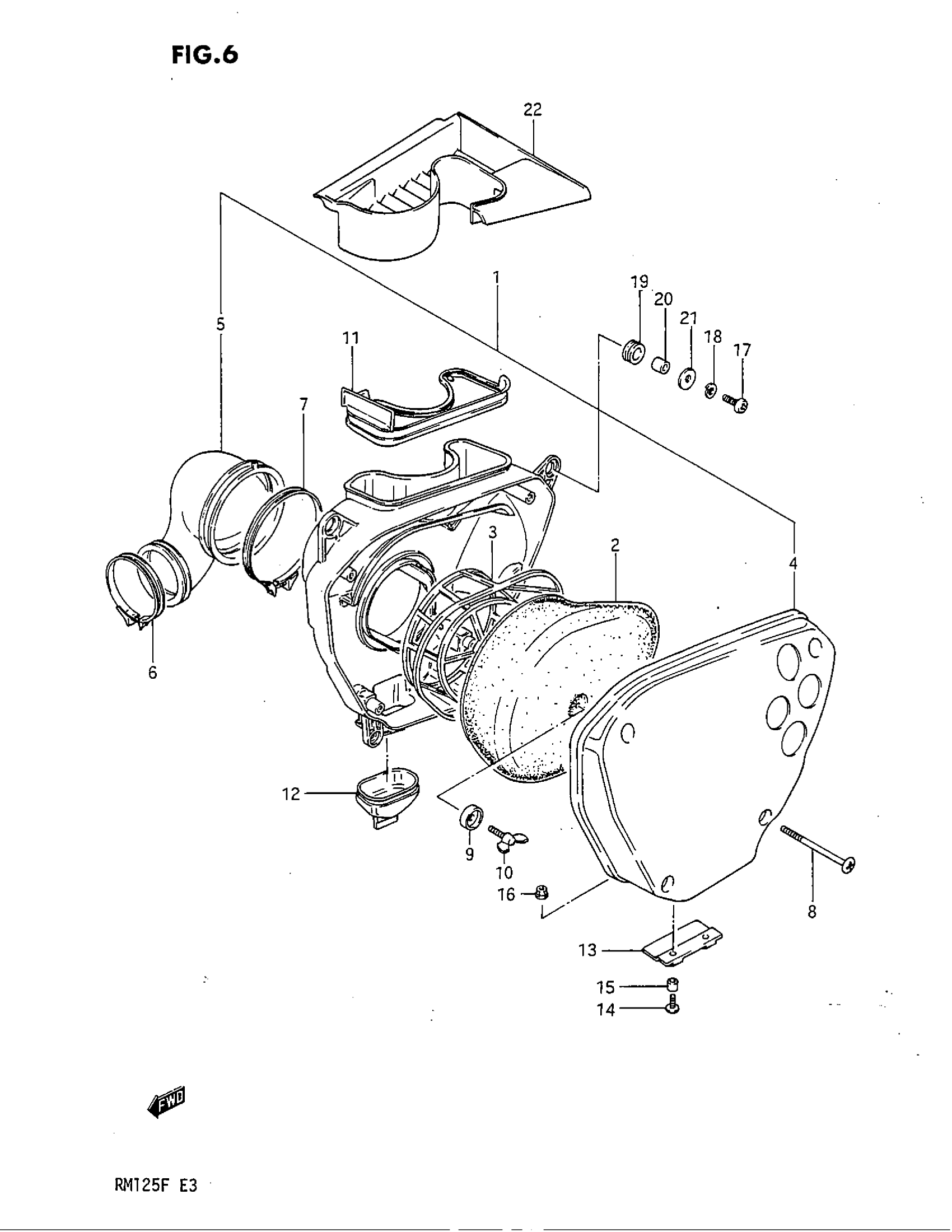

Suzuki RM125 (1985) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 16

13700-14500

Unavailable

2

FILTER

13780-14500

Unavailable

3

HOLDER, FILTER

13791-14500

Unavailable

4

CAP

13740-14500

Unavailable

5

TUBE, OUTLET

13881-14500

Unavailable

6

CLAMP This part replaces 09402-64306.

09402-64203

$6.58

7

CLAMP

13826-14500

Unavailable

8

SCREW This part replaces 02142-05755.

02142-0575B

$2.45

9

WASHER

13796-16700

$2.89

10

BOLT, WING This part replaces 13837-14500.

13837-43B00

Unavailable

11

MUD GUARD

13735-14500

Unavailable

12

TUBE, DRAIN

13871-14500

Unavailable

13

CHAIN GUIDE

13845-14500

Unavailable

14

SCREW This part replaces 02142-04125.

02142-0412A

$1.50

15

SPACER

13838-14500

Unavailable

16

NUT This part replaces 08316-16046.

08316-1004B

$3.15

17

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

18

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

19

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

20

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

21

WASHER This part replaces 09160-06007.

09160-06084

$1.78

22

MUD GUARD

13738-14500

Unavailable
