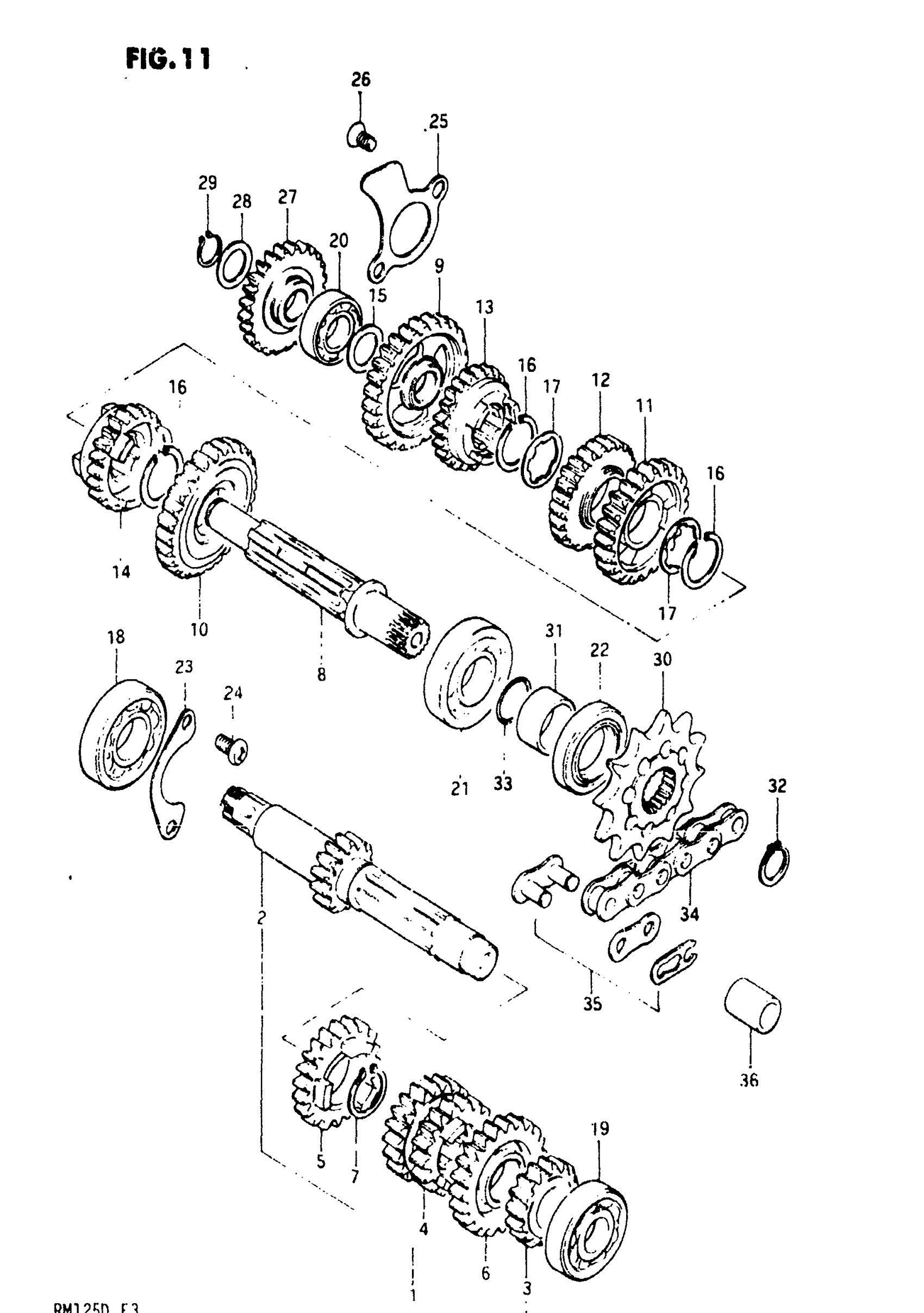

Suzuki RM125 (1983) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-14120

Unavailable

2

COUNTERSHAFT (NT:15)

24121-14120

Unavailable

3

GEAR, 2ND DRIVE (NT:17) This part replaces 24221-14120.

24221-14122

Unavailable

4

GEAR, 3/4 DRIVE (NT:17/21)

24231-14120

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-14120

Unavailable

6

GEAR, 6TH DRIVE (NT:23)

24260-14120

Unavailable

7

CIRCLIP

09380-20007

$2.43

8

DRIVESHAFT

24131-14120

Unavailable

9

GEAR, 1ST DRIVEN (NT:31)

24311-14120

Unavailable

10

GEAR, 2ND DRIVEN (NT:29)

24321-14120

Unavailable

11

GEAR, 3RD DRIVEN (NT:24)

24331-14120

Unavailable

12

GEAR, 4TH DRIVEN (NT:25)

24341-14120

Unavailable

13

GEAR, 5TH DRIVEN (NT:23)

24351-14120

Unavailable

14

GEAR, 6TH DRIVEN (NT:22)

24361-14120

Unavailable

15

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

16

CIRCLIP

09380-22006

$3.10

17

WASHER

09167-22011

$3.23

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, LH

08113-60020

$16.01

20

BEARING (15X35X11) This part replaces 08113-62020.

08113-62027

$14.40

21

BEARING, LH

09262-20043

Unavailable

22

OIL SEAL

09283-25035

$6.51

23

HOLDER, BEARING

24741-48000

Unavailable

24

SCREW This part replaces 02112-06128.

02112-06127

$1.84

25

HOLDER, BEARING This part replaces 24751-14101.

24751-14102

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

GEAR, KICK IDLE (NT:28)

26260-14100

Unavailable

28

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

29

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

0

SPROCKET, ENGINE (NT:12) This part replaces 27511-14110.

27511-14111

$22.95

30

SPROCKET, ENGINE (NT:11) | OPT This part replaces 27511-14100.

27511-14101

Unavailable

30

SPROCKET, ENGINE (NT:13) | OPT This part replaces 27511-14120.

27511-14121

$34.22

31

SPACER

09180-20039

$7.31

32

CIRCLIP

09380-20007

$2.43

33

O RING

09280-20001

$1.65

34

CHAIN,DRIVE ASS | Includes Item(s) 35 This part replaces 27600-14130.

27600-46K00-116

$167.95

35

NO DESCRIPTION AVAILABLE This part replaces 27620-36111.

27620-28C01

Unavailable

35

JOINT (RK)

27620-10221

Unavailable

36

CUSHION, CHAIN

09320-13001

Unavailable
