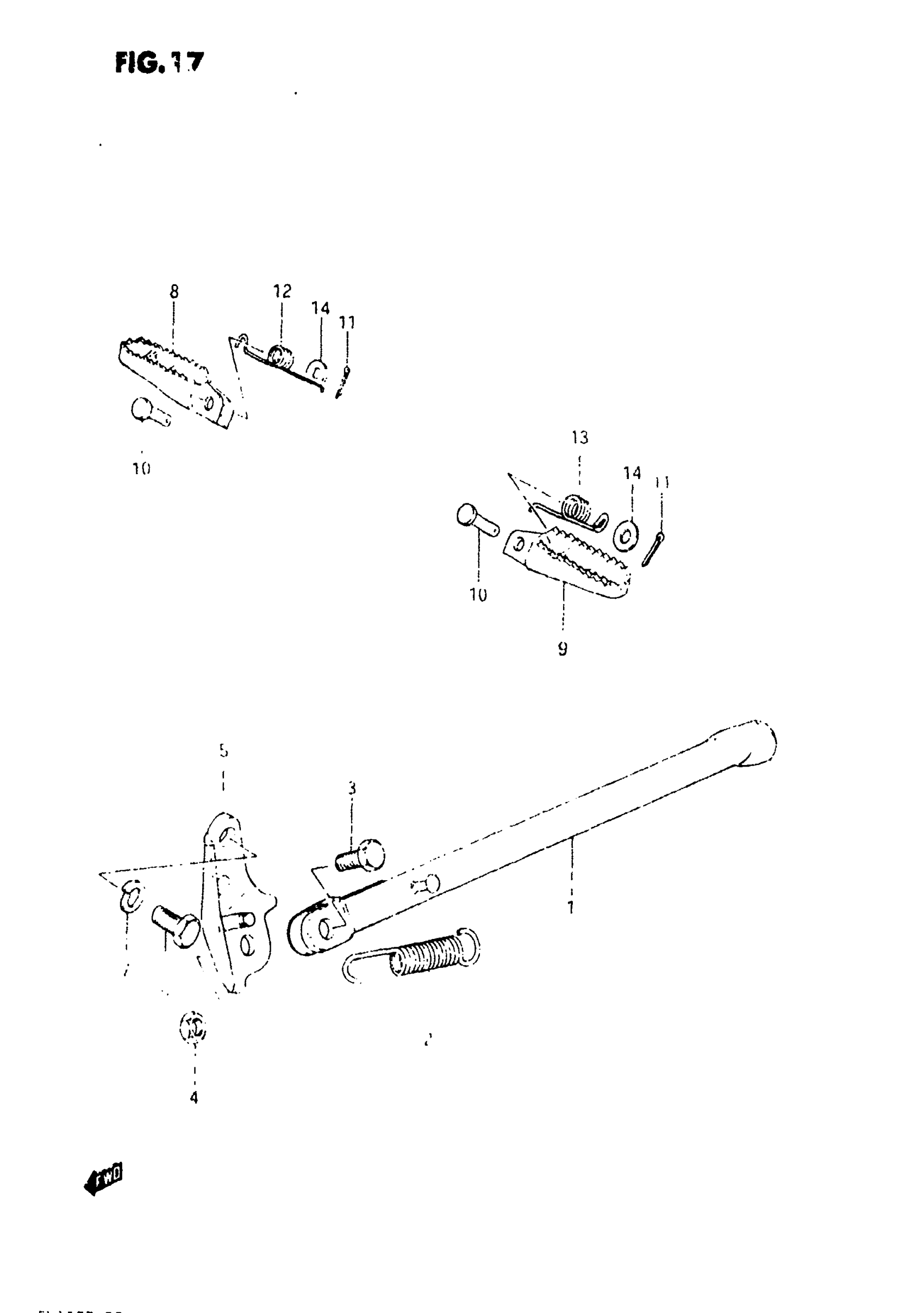

Suzuki RM125 (1983) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, SIDE This part replaces 42310-14100.

42310-40600

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

BRACKET PROP ST This part replaces 42330-14100.

42330-14400-019

Unavailable

6

BOLT

09100-10118

Unavailable

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

FOOTREST, FRONT RH (BLACK) This part replaces 43551-40402.

43551-37202-019

Unavailable

9

FOOTREST, FRONT LH (BLACK) This part replaces 43561-40401.

43561-40401-019

Unavailable

10

PIN This part replaces 09200-08035.

09200-08064

$6.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING This part replaces 09448-14014.

09448-14014-XC0

Unavailable

13

SPRING,FR FOOTR This part replaces 09448-14018.

09448-14018-XC0

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13
