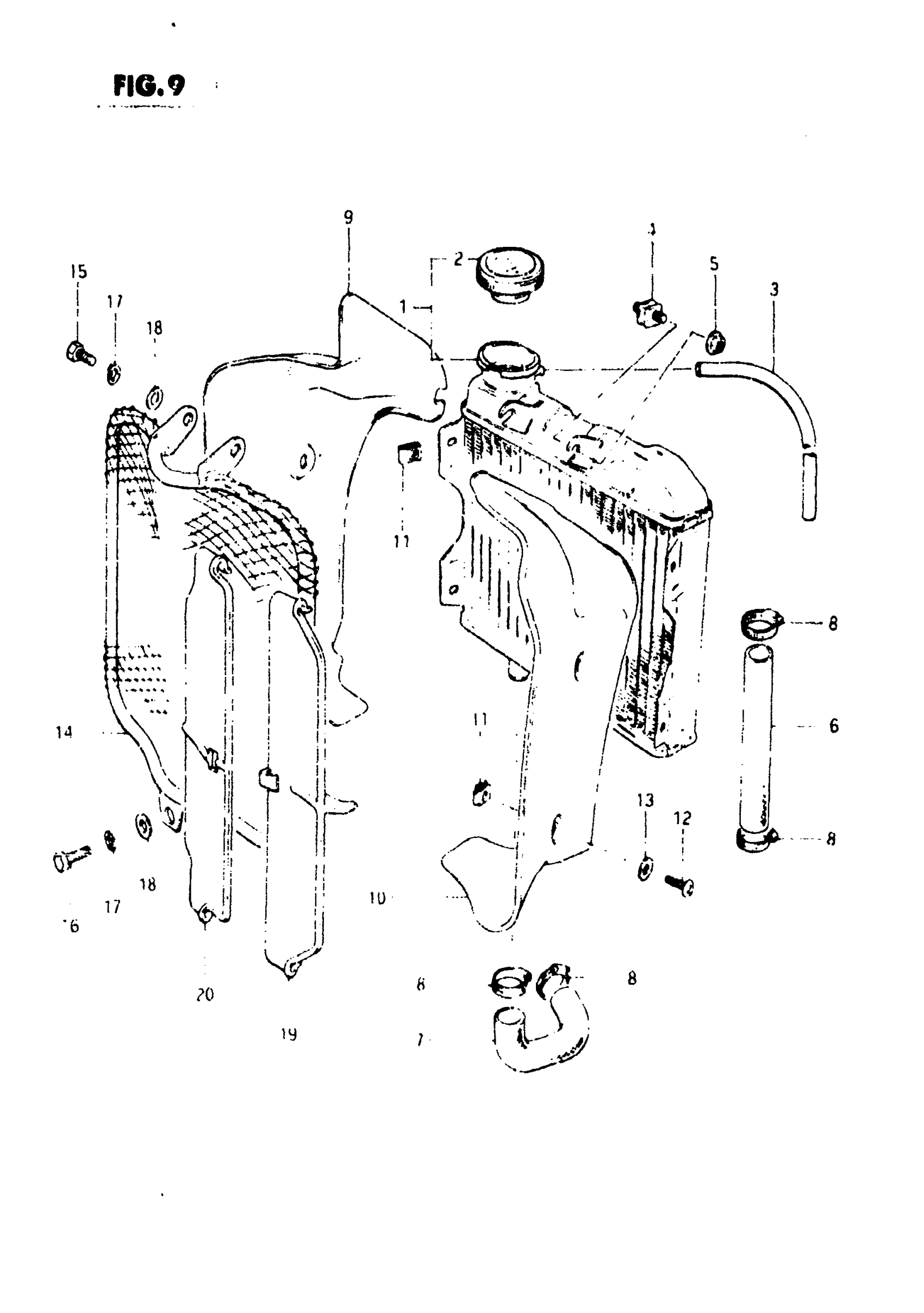

Suzuki RM125 (1983) RADIATOR Diagram

#

Description
Price

1

RADIATOR | Includes Item(s) 2 - 3

17700-14110

Unavailable

2

CAP

17730-14300

Unavailable

3

HOSE, OVER FLOW

17732-14100

Unavailable

4

BOLT,RADIATOR C This part replaces 17788-14100.

17788-13603

$9.02

5

NUT This part replaces 08316-16068.

08319-31067

$2.03

6

HOSE, RADIATOR This part replaces 17851-14110.

17852-38404

Unavailable

7

HOSE, OUTLET

17852-14110

Unavailable

8

CLAMP This part replaces 09402-25501.

09402-28511

$6.88

9

COVER, RH

47511-14101

Unavailable

10

COVER, LH

47521-14102

Unavailable

11

PLATE

47512-14100

Unavailable

12

SCREW

02142-06167

$1.49

13

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

14

BUMPER, RADIATOR This part replaces 47540-14120.

47540-14101

Unavailable

15

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

16

BOLT, LOWER

09100-08202

Unavailable

17

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

18

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

19

LOUVER, MUDGUARD OUTER

47531-14100

Unavailable

20

LOUVER, MUDGUARD INNER

47532-14100

Unavailable
