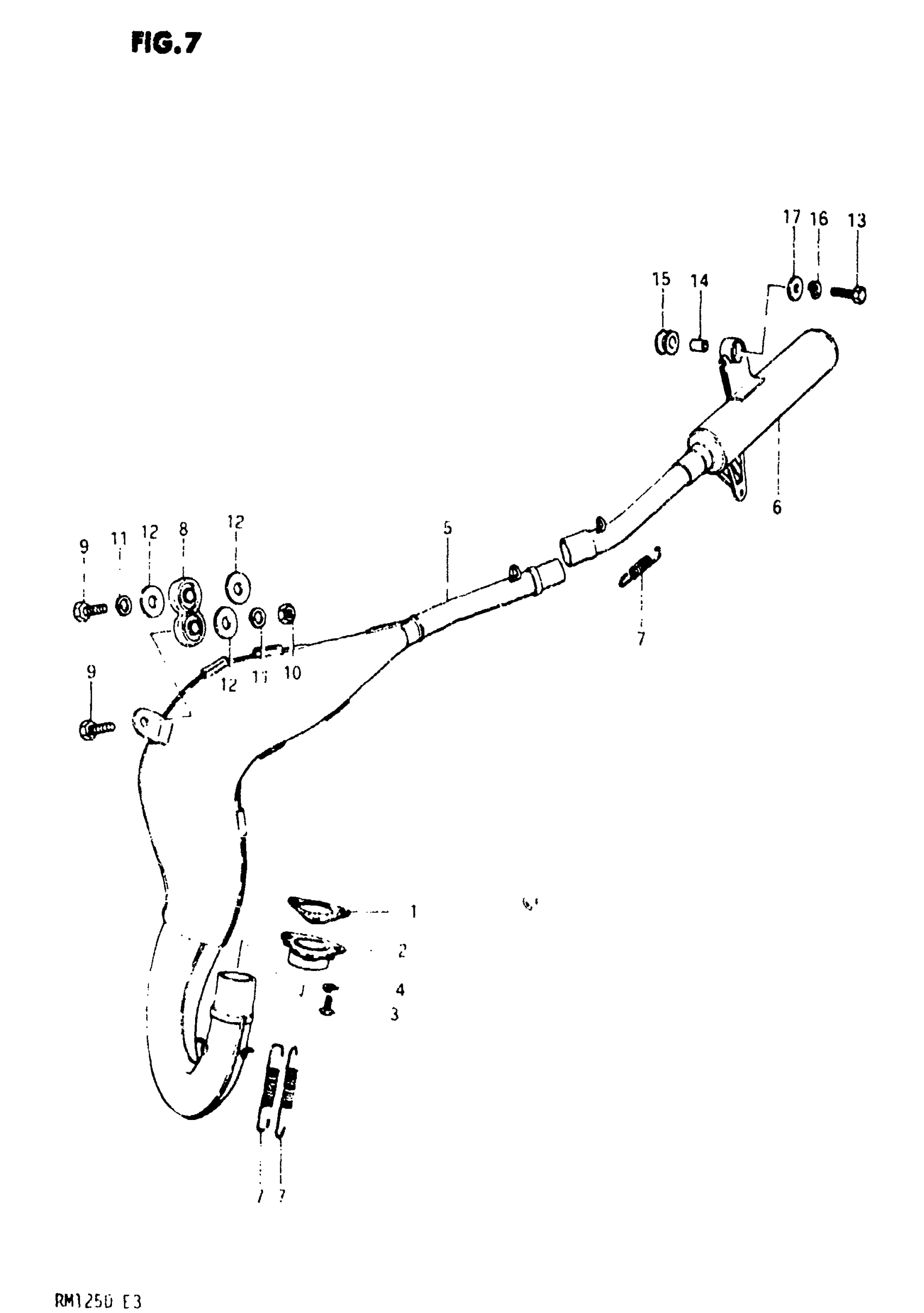

Suzuki RM125 (1983) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLAN This part replaces 14181-40200.

14181-40200-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-14100

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE This part replaces 14310-14130.

14310-14140-H01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-14130.

14330-14140

Unavailable

7

SPRING This part replaces 09443-12024.

09443-12024-XC0

Unavailable

8

CAMPER, MUFFLER

14770-40000

Unavailable

9

BOLT (8X32)

09100-08176

$2.45

10

NUT This part replaces 08310-22088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT (8X32)

09100-08176

$2.45

14

SPACER This part replaces 09180-08102.

09180-08194

$3.05

15

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
