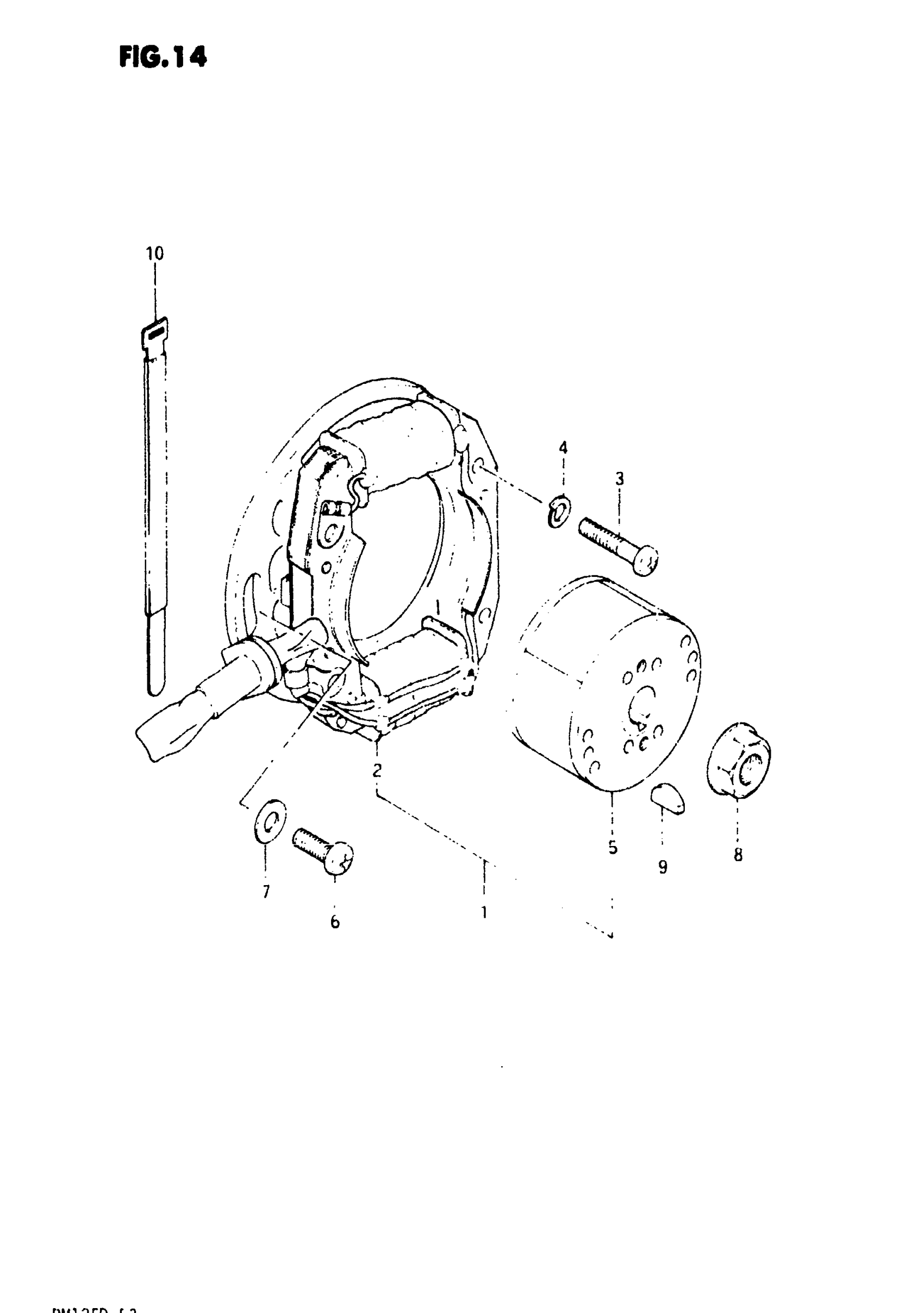

Suzuki RM125 (1983) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 5

32100-14120

Unavailable

2

STATOR ASSY

32101-14120

Unavailable

3

SCREW This part replaces 02112-05208.

02112-05207

$1.97

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

ROTOR

32102-14120

Unavailable

6

SCREW This part replaces 02112-06168.

02112-06167

$1.49

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

9

KEY This part replaces 08341-31049.

09420-04008

$3.42

10

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
