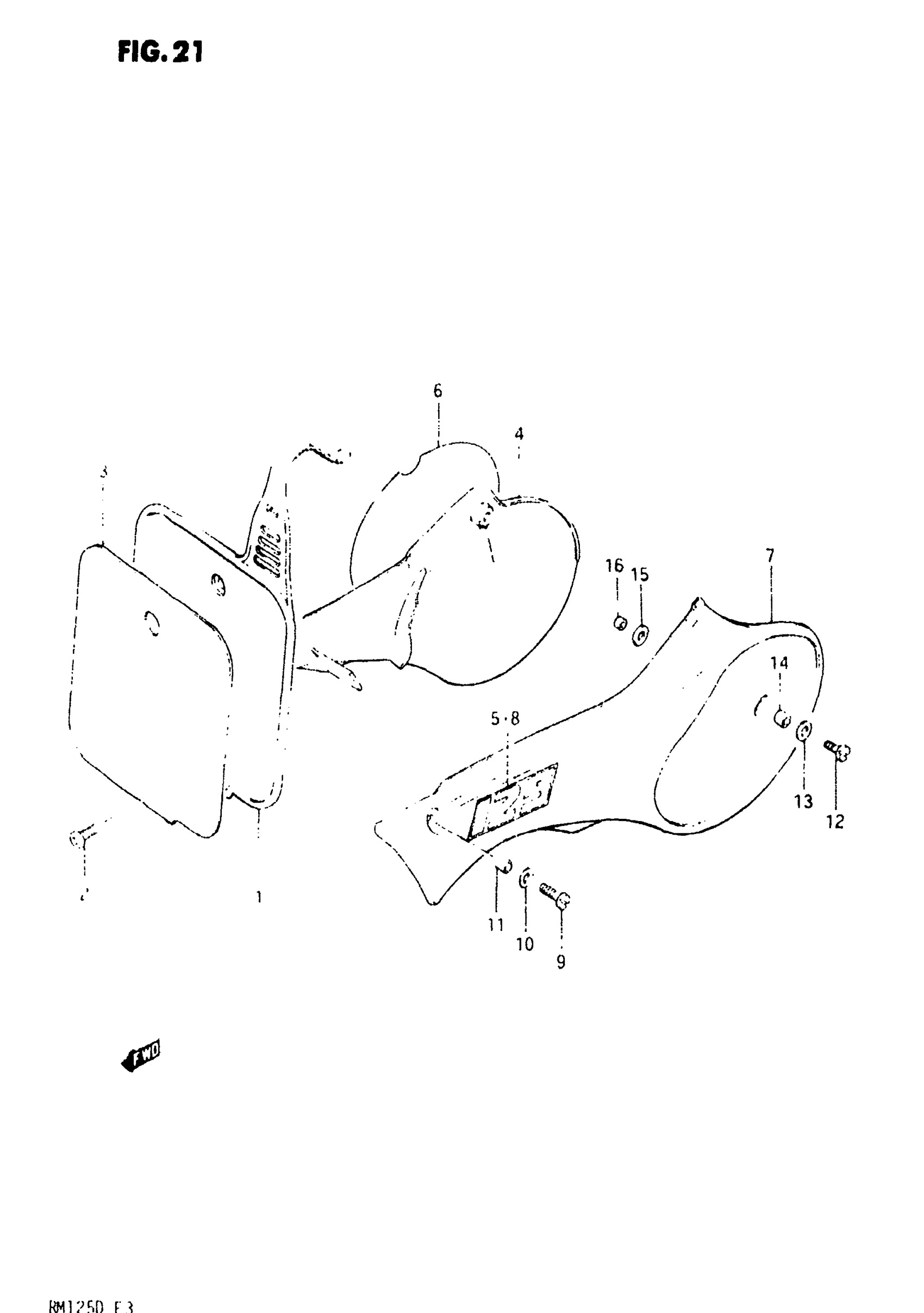

Suzuki RM125 (1983) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) This part replaces 94911-14300.

94911-00B10-25Y

$64.72

2

SCREW

02142-05167

$1.49

3

EMBLEM

68169-14120

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 47111-14120-163.

47111-14120-13L

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 68131-14130-74H.

68131-14Z00-74H

Unavailable

6

EMBLEM, RH

68132-14100

Unavailable

7

COVER, FRAME LH (YELLOW) This part replaces 47211-14120-81W.

47211-14120-163

Unavailable

8

TAPE, LH

68141-14130-74H

Unavailable

9

SCREW, FRONT

09123-06026

Unavailable

10

WASHER This part replaces 94927-14110.

09160-06084

$1.78

11

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

12

SCREW, REAR

09123-06026

Unavailable

13

WASHER This part replaces 94927-14110.

09160-06084

$1.78

14

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

15

WASHER, REAR LH

09168-10024

Unavailable

16

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11
