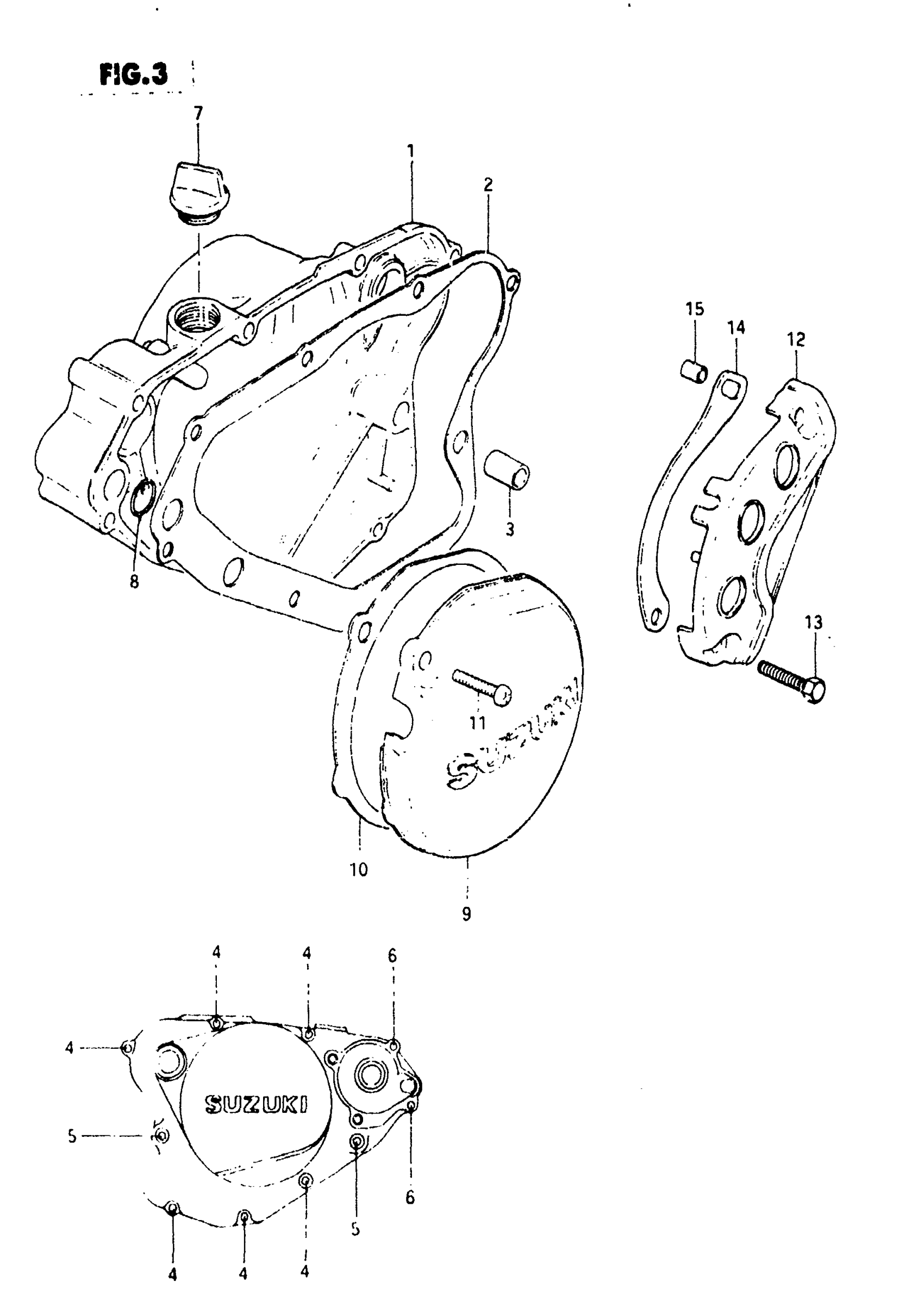

Suzuki RM125 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-14100

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-14100.

11482-14100-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06708.

02112-06707

$2.53

7

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

8

O RING(D:1.9,ID This part replaces 09280-15002.

09280-15024

$3.60

9

COVER, MAGNETO

11351-14110

Unavailable

10

GASKET,MAG COVE This part replaces 11483-14110.

11483-14111-H17

Unavailable

11

SCREW This part replaces 02112-05165.

02112-05164

$2.63

12

COVER, SPROCKET

11360-14100

Unavailable

13

BOLT This part replaces 01107-06405.

01500-0640B

$2.62

14

PLATE FR CHAIN This part replaces 27641-14101.

27641-14102

$10.70

15

SPACER

09180-07004

$2.30
