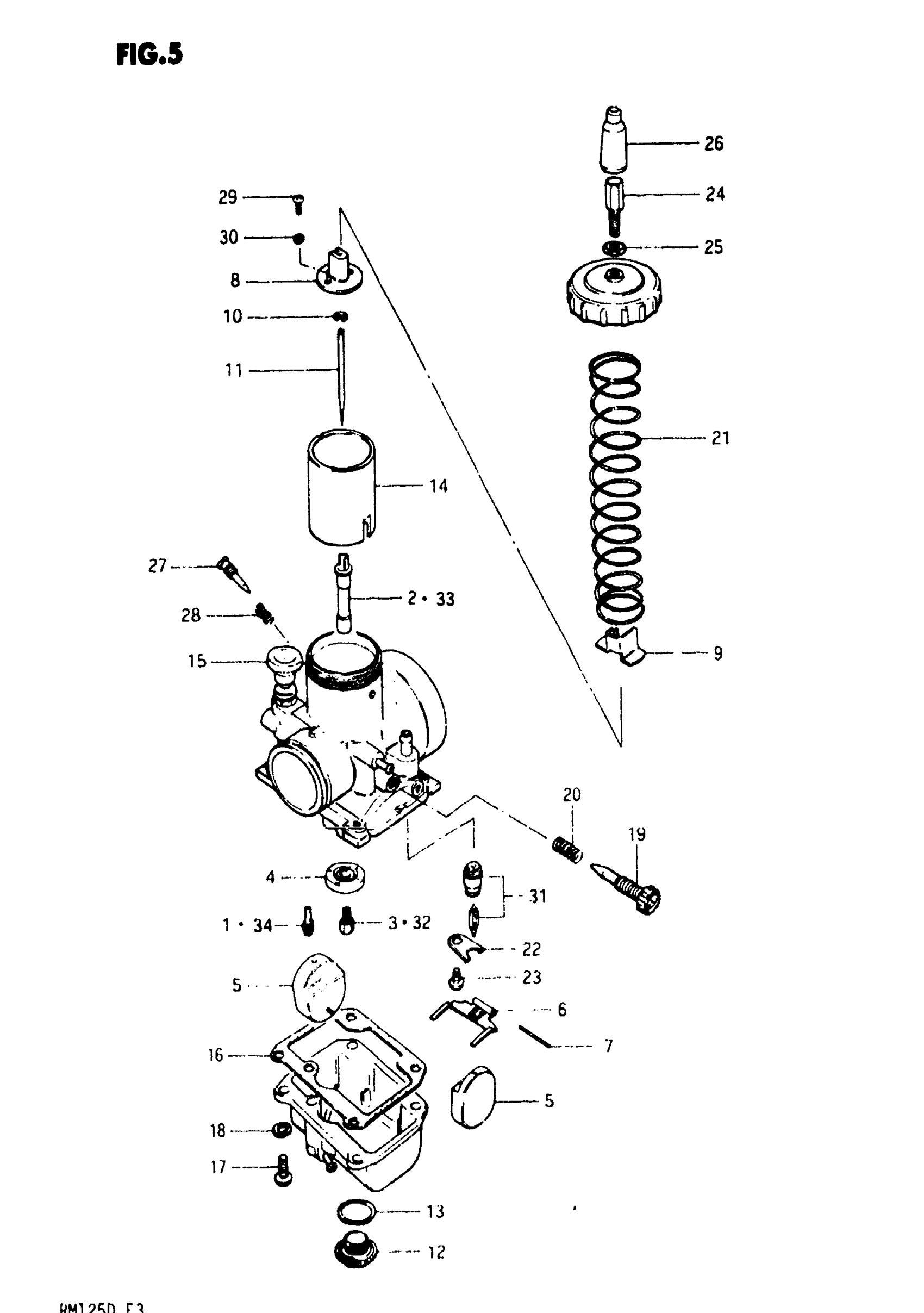

Suzuki RM125 (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 31

13200-14120

Unavailable

1

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

$9.55

2

JET, NEEDLE (Q-6)

09494-00318

Unavailable

3

JET, MAIN (270) This part replaces 09491-54001.

09491-54002

Unavailable

4

RING

13331-40200

Unavailable

5

FLOAT

13252-16600

$27.77

6

ARM, FLOAT

13253-14100

Unavailable

7

.PIN, FLOAT

13254-01010

$3.62

8

HOLDER, JET NEEDLE

13581-40200

Unavailable

9

COVER, HOLDER

13629-40200

Unavailable

10

CLIP, NEEDLE

13394-10010

$5.45

11

NEEDLE, JET (6FP35-2)

13383-14100

Unavailable

12

PLUG, DRAIN

13247-40200

Unavailable

13

O RING

09280-20003

$2.30

14

VALVE, THROTTLE (CA:2.0)

13551-14110

Unavailable

15

PLUNGER ASSY, STARTER This part replaces 13410-14110.

13410-14100

Unavailable

16

GASKET, FLOAT CHAMBER

13251-40230

Unavailable

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

SCREW, THROTTLE STOP

13267-40230

$9.85

20

SPRING, STOP SCREW This part replaces 13268-93100.

13268-03110

$5.45

21

SPRING, RETURN

13573-41610

Unavailable

22

PLATE

13373-39110

$6.64

23

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

24

ADJUSTER, CABLE

13577-41612

$7.01

25

NUT

13661-16600

$4.64

26

CAP

13681-33010

$9.32

27

SCREW, PILOT AIR (1 1/2)

13269-15010

Unavailable

28

SPRING

13268-01010

$5.28

29

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

30

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

31

VALVE, NEEDLE

13370-40600

Unavailable

32

JET. MAIN (240) | OPT This part replaces 09491-48001.

09491-48003

Unavailable

32

JET, MAIN (250) | OPT This part replaces 09491-50003.

09491-50008

Unavailable

32

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

32

JET, MAIN (280) | OPT This part replaces 09491-56001.

09491-56003

Unavailable

32

JET, MAIN (290) | OPT This part replaces 09491-58001.

09491-58002

Unavailable

33

JET, NEEDLE (Q-4) | OPT

09494-00344

Unavailable

33

JET, NEEDLE (Q-8) | OPT

09494-00347

Unavailable

34

JET, PILOT (25) | OPT This part replaces 09492-25003.

09492-25005

$9.55

34

JET, PILOT (35) | OPT

09492-35004

Unavailable
