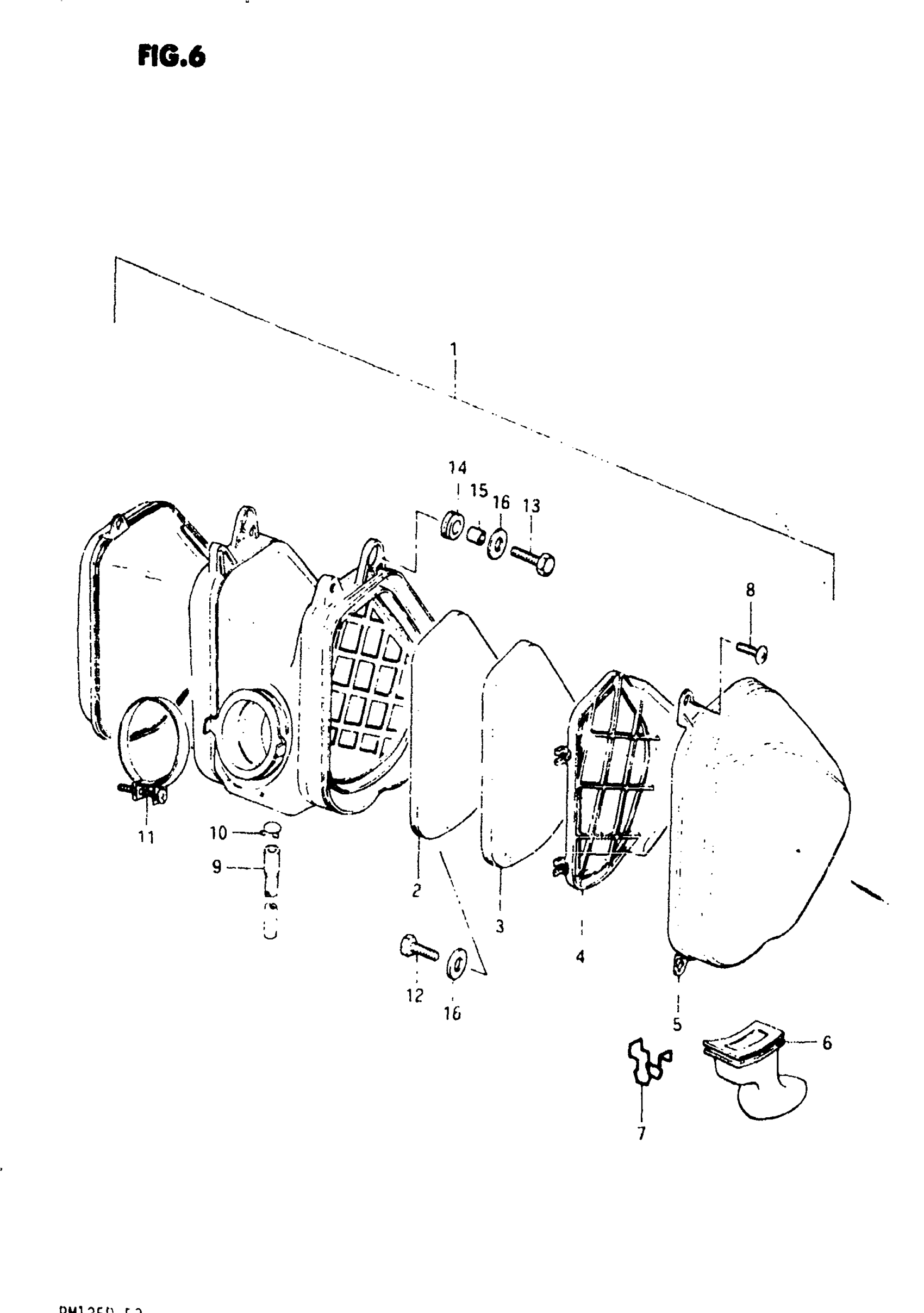

Suzuki RM125 (1983) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11

13700-14130

Unavailable

2

FILTER, RH

13781-14100

Unavailable

2

FILTER, LH

13782-14100

Unavailable

3

FILTER, RH 2ND

13786-14100

Unavailable

3

FILTER, LH 2ND

13787-14100

Unavailable

4

HOLDER, RH

13791-14110

Unavailable

4

HOLDER, LH

13792-14110

Unavailable

5

CAP, RH

13740-14110

Unavailable

5

CAP, LH

13750-14110

Unavailable

6

TUBE, DRAIN RH

13871-14110

Unavailable

6

TUBE, DRAIN LH

13872-14110

Unavailable

7

STOPPER, TUBE

13877-14110

Unavailable

8

SCREW

02142-05167

$1.49

9

TUBE,DRAIN This part replaces 13870-00170.

13870-11459

$15.51

10

CLIP

09401-14301

$2.35

11

CLAMP This part replaces 09402-64306.

09402-64203

$6.58

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89
