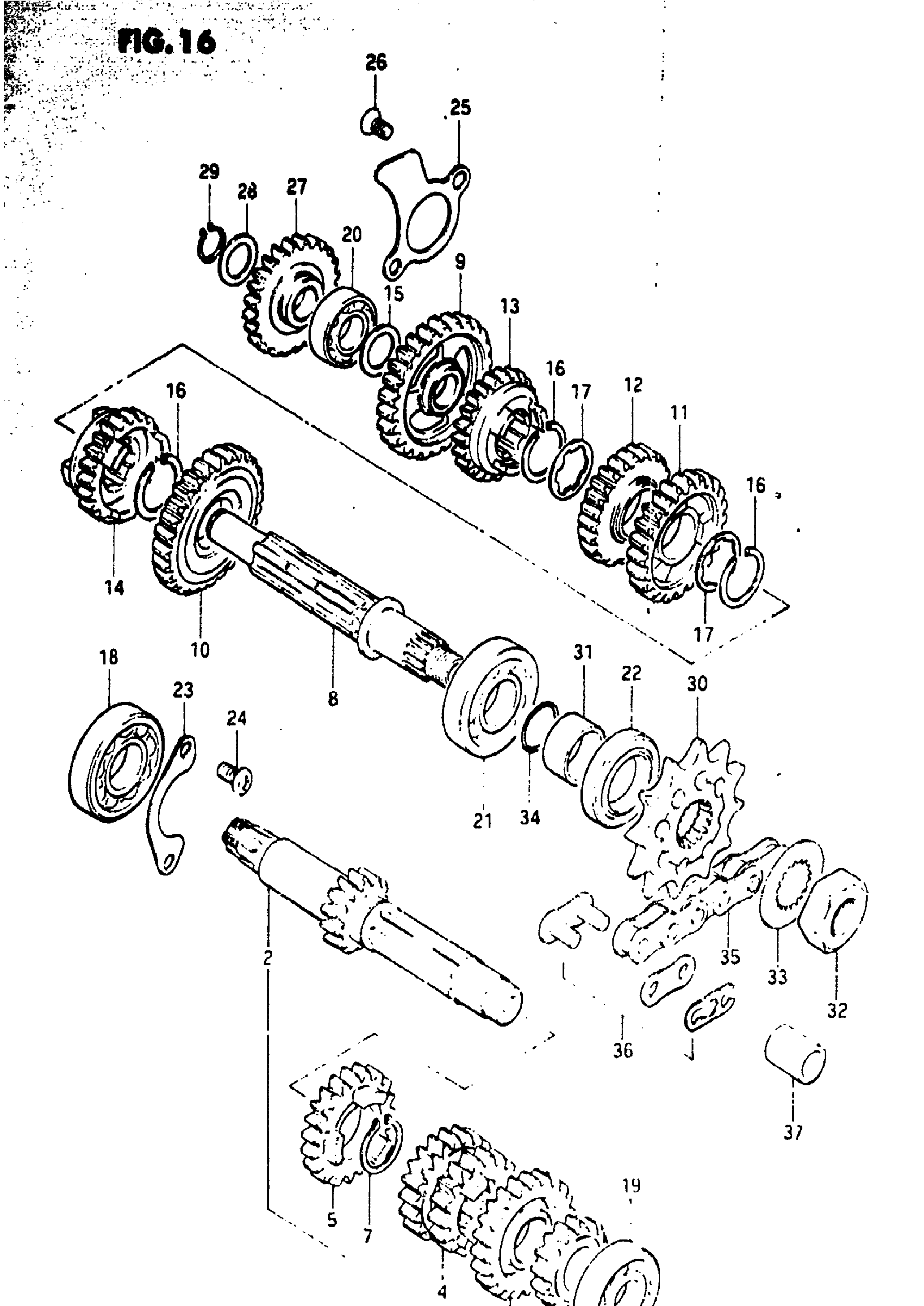

Suzuki RM125 (1982) TRANSMISSION (MODEL Z) Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-14110

Unavailable

2

COUNTERSHAFT (NT:12)

24121-14110

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 24221-14110.

24221-14101

Unavailable

4

GEAR, 3/4 DRIVE (NT:17/21)

24231-14110

Unavailable

5

GEAR, 5TH DRIVE (NT:22) This part replaces 24251-14110.

24251-14101

Unavailable

6

GEAR, 6TH DRIVE (NT:23) This part replaces 24260-14110.

24260-14500

$124.28

7

CIRCLIP

09380-20007

$2.43

8

DRIVESHAFT

24131-14110

Unavailable

9

GEAR, 1ST DRIVEN (NT:28)

24310-14110

Unavailable

10

GEAR, 2ND DRIVEN (NT:28)

24321-14101

Unavailable

11

GEAR, 3RD DRIVEN (NT:24)

24331-14110

Unavailable

12

GEAR, 4TH DRIVEN (NT:25)

24341-14110

Unavailable

13

GEAR, 5TH DRIVEN (NT:23)

24351-14110

Unavailable

14

GEAR, 6TH DRIVEN (NT:22)

24361-14110

Unavailable

15

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

16

CIRCLIP

09380-22006

$3.10

17

WASHER

09167-22011

$3.23

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, LH

08113-60020

$16.01

20

BEARING (15X35X11) This part replaces 08113-62020.

08113-62027

$14.40

21

BEARING, LH

09262-20043

Unavailable

22

OIL SEAL

09283-25035

$6.51

23

HOLDER, BEARING

24741-48000

Unavailable

24

SCREW This part replaces 02112-06128.

02112-06127

$1.84

25

HOLDER, BEARING This part replaces 24751-14101.

24751-14102

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

GEAR, KICK IDLE (NT:28)

26260-14100

Unavailable

28

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

29

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

30

SPROCKET, ENGINE (NT:12) | STD This part replaces 27511-14110.

27511-14111

$22.95

30

SPROCKET, ENGINE (NT:11) | OPT This part replaces 27511-14100.

27511-14101

Unavailable

30

SPROCKET, ENGINE (NT:13) | OPT This part replaces 27511-14120.

27511-14121

$34.22

31

SPACER

09180-20039

$7.31

32

NUT

09140-16013

Unavailable

33

WASHER

09167-20012

$2.44

34

O RING

09280-20001

$1.65

35

CHAIN ASSY,DRIVE | Includes Item(s) 36 This part replaces 27600-14120.

27600-46K00-114

$140.88

36

JOINT (RK) This part replaces 27620-10220.

27620-10221

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 27620-36110.

27620-28C01

Unavailable

37

CUSHION, CHAIN

09320-13001

Unavailable
