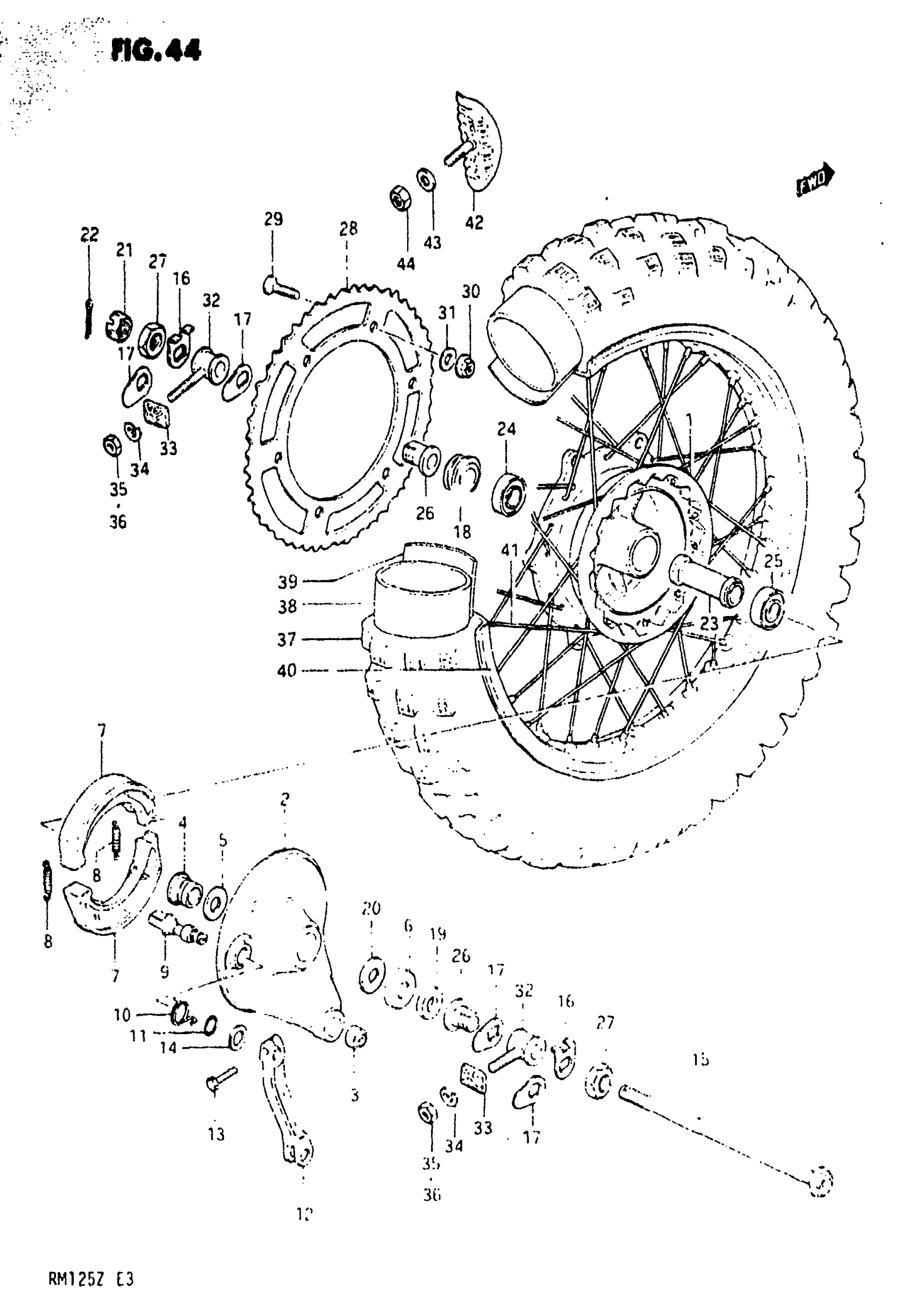

Suzuki RM125 (1982) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-14102.

64110-14103

Unavailable

2

PANEL, REAR HUB | MODEL X This part replaces 64200-14811.

64200-14830

Unavailable

2

PANEL, REAR HUB | MODEL Z; Includes Item(s) 3

64200-14830

Unavailable

3

BEARING

64352-40401

Unavailable

4

SPACER, PANEL

64213-14100

Unavailable

5

DUST SEAL, INNER

09283-20031

$5.24

6

COVER, PANEL DUST SEAL

64845-14100

Unavailable

7

SHOE SET, BRAKE This part replaces 64410-14100.

64400-14820

Unavailable

8

SPRING This part replaces 09443-07001.

09443-07025

$2.08

9

CAM, BRAKE | MODEL X This part replaces 54441-14100.

54441-14101

Unavailable

9

CAM, BRAKE | MODEL Z

54441-14101

Unavailable

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

Unavailable

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM

64451-14100

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

WASHER (12.5X20X1)

09160-12011

$1.54

15

AXLE,REAR This part replaces 64711-14101.

64711-1420V

Unavailable

16

WASHER | MODEL Z This part replaces 64712-14300.

64712-14301

Unavailable

17

WASHER | MODEL XMODEL Z

64712-14201

Unavailable

18

SPACER, AXLE LH

64750-14200

Unavailable

19

SPACER, AXLE RH | MODEL X

64741-14200

Unavailable

19

SPACER, AXLE RH | MODEL Z

64741-14210

Unavailable

20

WASHER, GOVERNOR THRUST | MODEL Z This part replaces 08211-15281.

09181-15223

$2.53

21

NUT

09141-14004

$3.91

22

PIN This part replaces 04111-30308.

04111-3030A

$1.49

23

SPACER, HUB BEARING | MODEL X This part replaces 64730-14100.

64730-14101

Unavailable

23

SPACER, HUB BEARING | MODEL Z

64730-14101

Unavailable

24

BEARING, LH

08123-62027

$18.57

25

BEARING, RH

08143-62027

$16.01

26

SPACER, CHAIN ADJUSTER

64781-14201

Unavailable

27

NUT

09140-22006

Unavailable

28

SPROCKET, REAR (NT:51)

64511-40261

$155.22

29

SCREW

09120-08004

$2.40

30

NUT This part replaces 08319-31088.

08319-3108A

$2.32

31

WASHER This part replaces 08322-11088.

08322-01087

$2.13

32

ADJUSTER, CHAI | MODEL X

61410-14210

Unavailable

32

ADJUSTER, UCHAIN | MODEL Z

61410-14121

Unavailable

33

PLATE

61421-14210

Unavailable

34

.LOCK WASHER | MODEL X This part replaces 08321-21088.

08321-01087

$2.13

35

NUT | MODEL X This part replaces 08310-12088.

08310-00087

$2.13

36

NUT | MODEL Z This part replaces 08319-31088.

08319-3108A

$2.32

37

NO DESCRIPTION AVAILABLE | IRC MODEL X This part replaces 65100-14100.

65100-29560

Unavailable

37

TIRE (41018) | BS MODEL X

65100-14130

Unavailable

37

TIRE (41018) | IRC MODEL Z

65100-14110

Unavailable

37

TIRE (41018) | BS MODEL Z

65100-14220

Unavailable

38

TUBE ASSY, WHEEL INNER This part replaces 65200-41330.

65200-42AA1

$65.62

39

PROTECTOR, INNER TUBE

65261-33030

$5.50

40

RIM, WHEEL (185X18) GOLD | MODEL X This part replaces 65311-14100.

65311-14510

Unavailable

40

RIM, WHEEL (185X18) GOLD | MODEL Z This part replaces 65311-14101.

65311-14510

Unavailable

41

SPOKE ASSY, REAR | MODEL X This part replaces 65320-14110.

65320-14112

Unavailable

41

SPOKE ASSY, REAR | MODEL Z This part replaces 65320-14111.

65320-14112

Unavailable

42

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

43

WASHER This part replaces 08322-11088.

08322-01087

$2.13

44

NUT | MODEL X This part replaces 08310-22088.

08310-00087

$2.13

44

NUT | MODEL Z This part replaces 08310-12088.

08310-00087

$2.13
