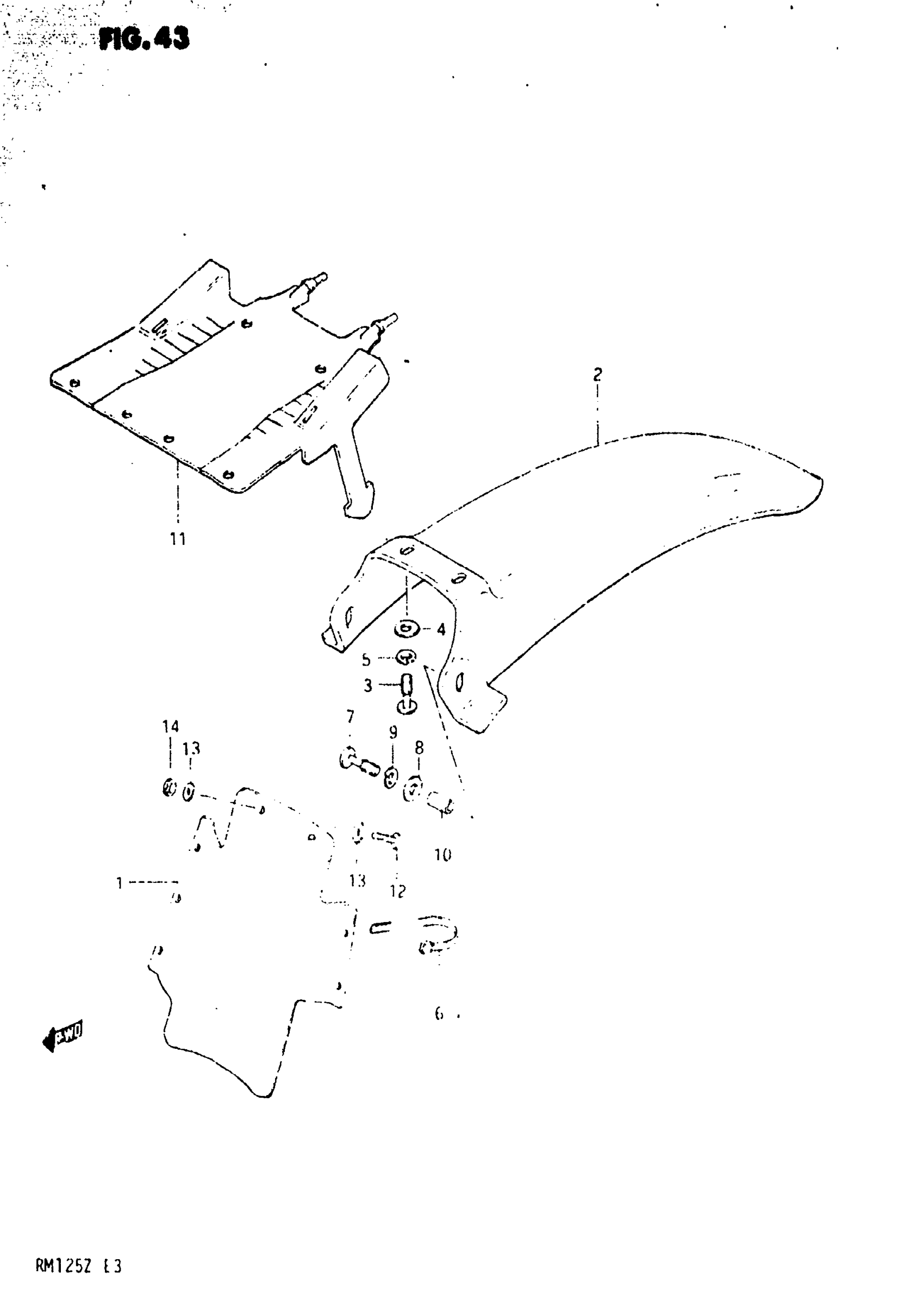

Suzuki RM125 (1982) REAR FENDER Diagram

#

Description
Price

1

RR FENDER FRONT This part replaces 63112-14102.

63112-14400

Unavailable

2

FENDER,RR | MODEL X This part replaces 63113-14100-163.

63113-14103-163

Unavailable

2

FENDER,RR | MODEL Z This part replaces 63113-14101-163.

63113-14103-163

Unavailable

3

SCREW, UPPER

02142-06167

$1.49

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

7

SCREW, REAR FENDER REAR

02142-06167

$1.49

8

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

11

MUD GUARD, REAR FENDER

63331-14101

Unavailable

12

SCREW This part replaces 02112-05128.

02112-05127

$1.97

13

WASHER This part replaces 08322-21058.

08322-01057

$2.13

14

NUT This part replaces 08310-22058.

08310-00057

$1.84
