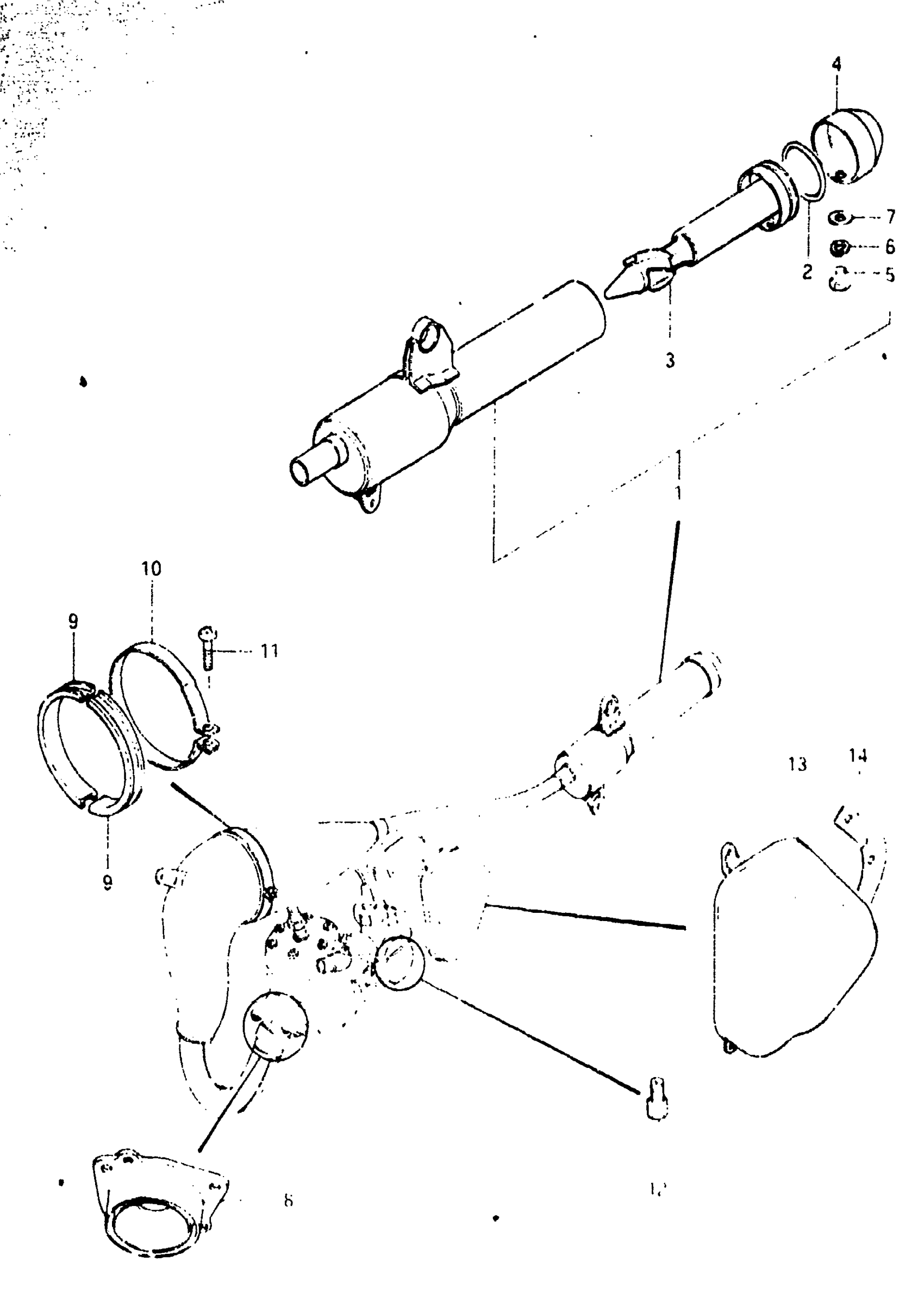

Suzuki RM125 (1982) OPTIONAL Diagram

#

Description
Price

0

OFF-ROAD SOUND KIT | MODEL X

14300-14820

Unavailable

0

OFF-ROAD SOUND KIT | MODEL Z; Includes Item(s) 1 - 14

14300-14870

Unavailable

1

MUFFLER, 2ND

14303-14110

Unavailable

2

O RING

09280-55001

$5.52

3

TUBE, CLEAN OUT

14850-30510

Unavailable

4

COVER, TAIL

14649-30520

Unavailable

5

SCREW

09128-06013

$1.49

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

FLANGE, EXHAUST PIPE | MODEL X

14170-14110

Unavailable

8

FLANGE, EXHAUST PIPE | MODEL Z

14170-14120

Unavailable

9

RUBBER, MUFFLER

14319-41710

Unavailable

10

CLAMP

09402-00601

Unavailable

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

JET, MAIN (170) | MODEL X

09491-34002

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13940-14100.

13800-14810

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 13860-14120.

13800-14810

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13940-14105.

13800-14820

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 13860-14125.

13800-14820

Unavailable

14

ADAPTER, AIR CLEANER INLET

13949-14100

Unavailable
