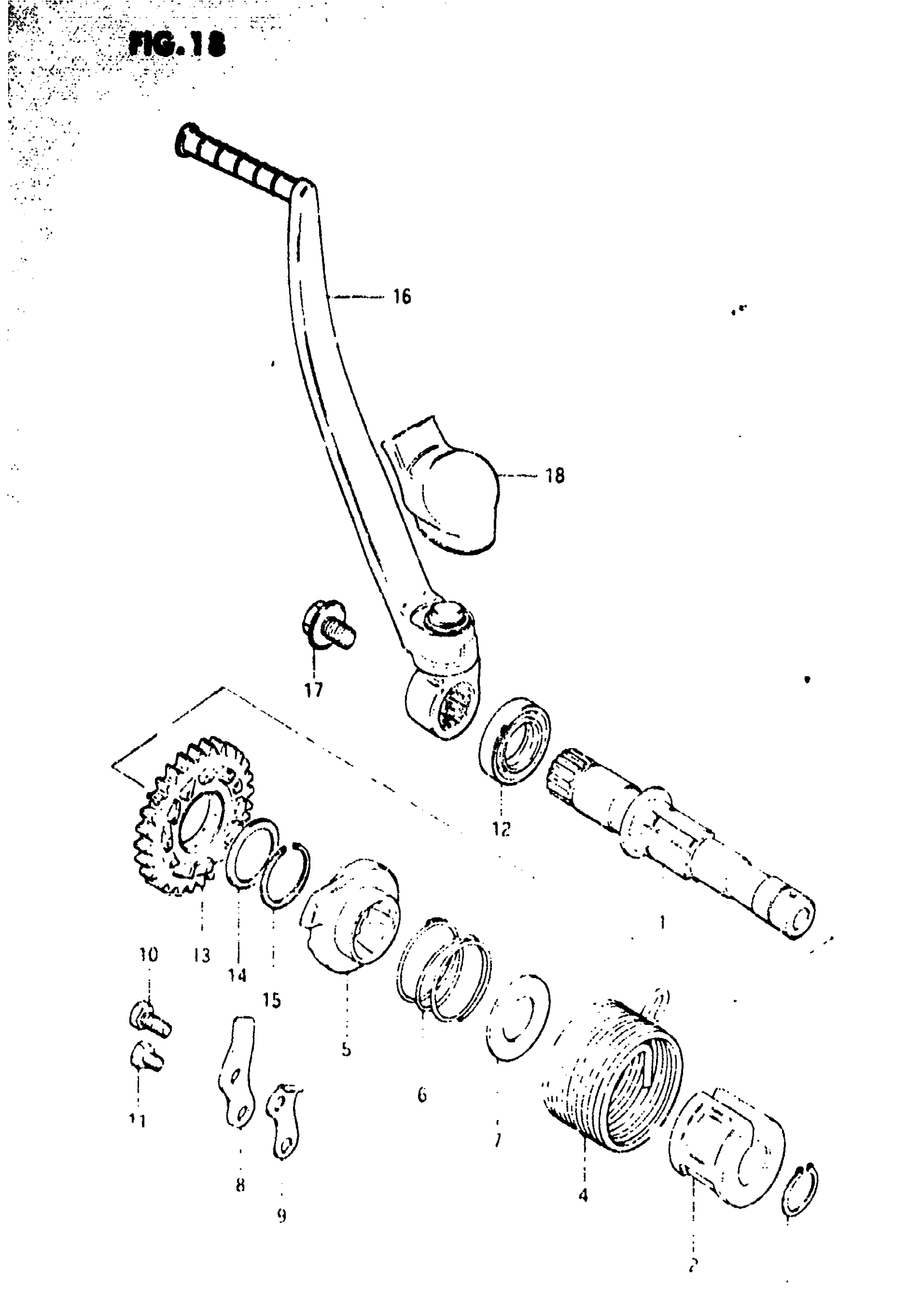

Suzuki RM125 (1982) KICK STARTER Diagram

NO DESCRIPTION AVAILABLE This part replaces 26211-40201.

26211-40202

Unavailable

GUIDE, SPRING

26221-41100

$8.28

CIRCLIP

09380-17001

$1.98

SPRING

09448-45012

Unavailable

STARTER, KICK This part replaces 26231-30002.

26231-22A10

$63.88

SPRING

09440-32002

$2.27

PLATE

08211-17341

$2.50

GUIDE, KICK STARTER

26232-40200

$7.08

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

BOLT This part replaces 01107-06108.

01500-06107

$2.06

OIL SEAL

09283-20031

$5.24

GEAR, KICK DRIVE (NT:28)

26240-14100

Unavailable

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

CIRCLIP

09380-22006

$3.10

LEVER ASSY,KICK This part replaces 26300-14100.

26300-28E21

$263.67

BOLT

09103-08069

$4.32

COVER,KICK STAR This part replaces 26341-41101.

26341-41102

$7.54
