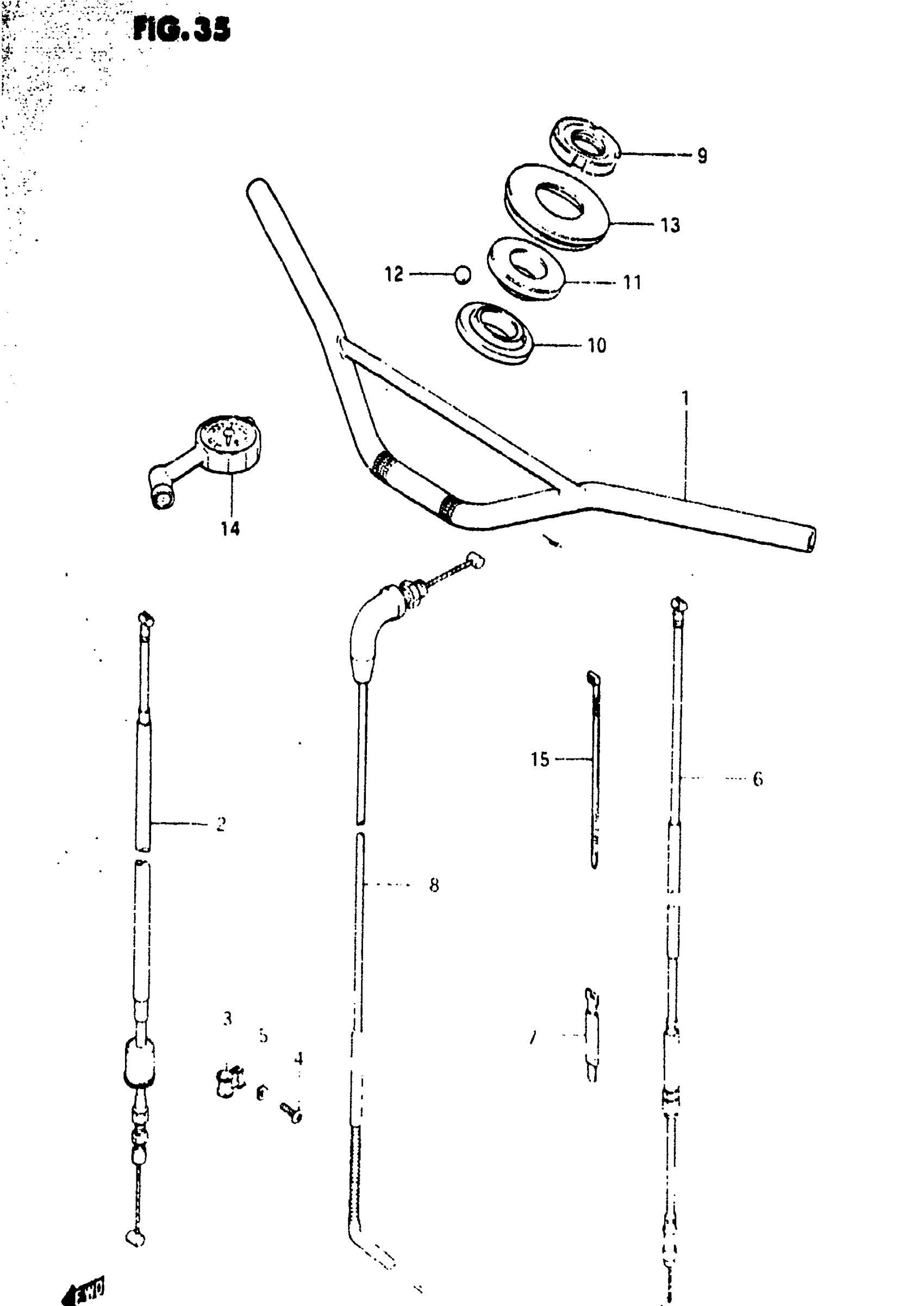

Suzuki RM125 (1982) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (GOLD) | MODEL X This part replaces 56110-14101-08C.

56110-14211-08C

Unavailable

2

HANDLEBAR (GOLD) | MODEL Z

56110-14211-08C

Unavailable

2

CABLE ASSY, FRONT BRAKE This part replaces 58100-14101.

58100-14202

Unavailable

3

CLAMP | MODEL X This part replaces 58620-14200.

58620-40401

Unavailable

3

CLAMP | MODEL Z This part replaces 58620-14201.

58620-40401

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

CABLE ASSY, CLUTCH This part replaces 58210-14101.

58210-14102

Unavailable

7

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

8

CABLE,THROTTLE | MODEL X This part replaces 58300-14100.

58300-14X04

Unavailable

8

CABLE, THROTTLE | MODEL Z This part replaces 58300-14110.

58300-40X03

Unavailable

9

NUT, STEERING STEM

51631-40200

Unavailable

10

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

11

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

12

STEEL BALL

06111-08003

$1.49

13

DUST SEAL, UPPER

51643-40200

$7.96

14

GAUGE, FRONT FORK AIR

96200-41330

Unavailable

15

CLAMP This part replaces 09407-20401.

09407-25402

$4.64
