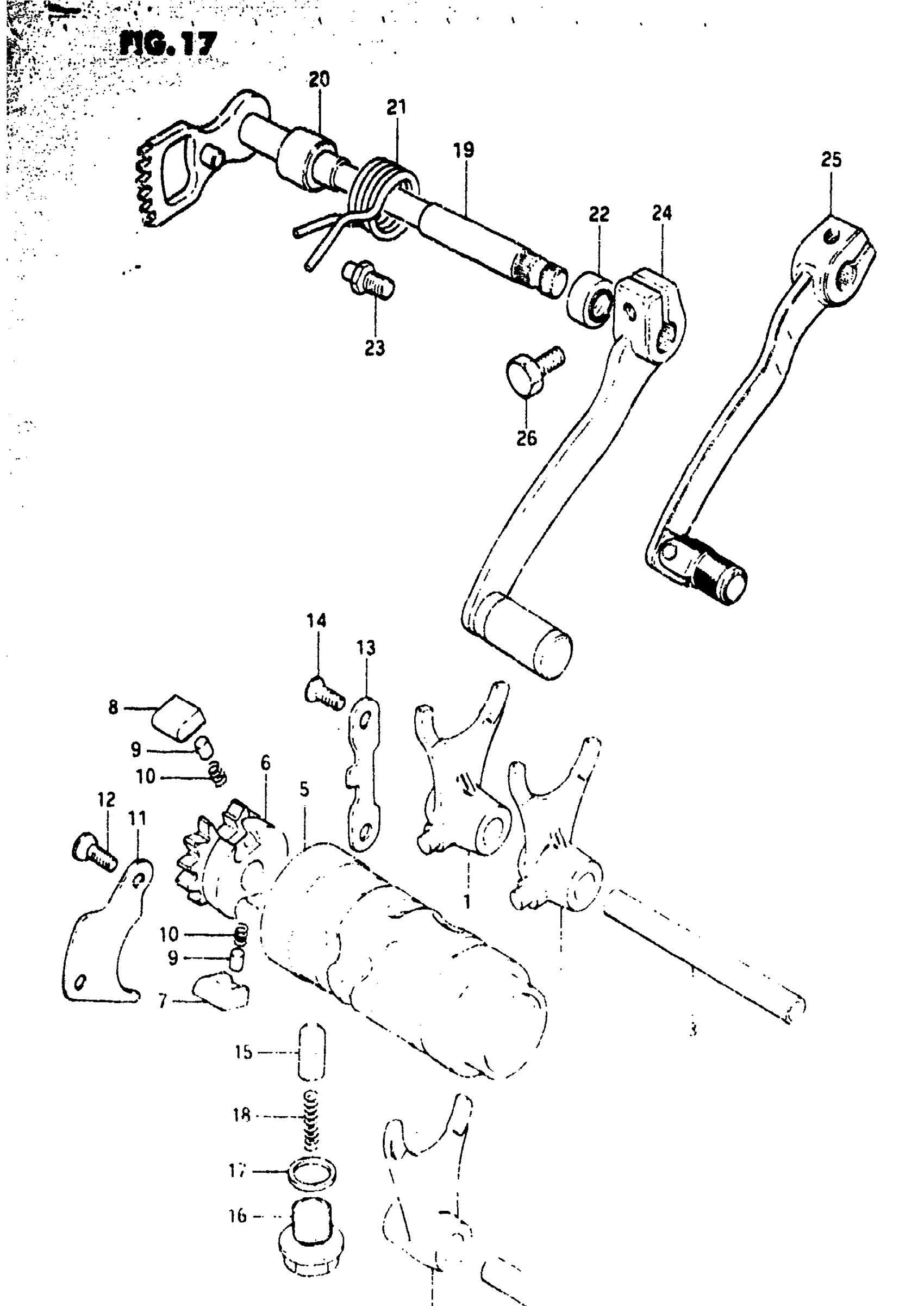

Suzuki RM125 (1982) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1 This part replaces 25211-41300.

25211-41301

$87.70

2

NO DESCRIPTION AVAILABLE This part replaces 25221-41301.

25221-41X00

Unavailable

3

SHAFT, GEAR SHI This part replaces 25411-14100.

25411-48001

Unavailable

4

SHAFT, NO.1 This part replaces 25421-40400.

25421-35410

$23.47

5

CAM

25310-14100

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-11001

$6.38

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

GUIDE, CAM This part replaces 25341-40400.

25341-40001

$12.17

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

16

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

17

GASKET

09168-14004

$1.83

18

SPRING

09440-05007

$1.82

19

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 25510-14101.

25510-141V0

Unavailable

19

SHAFT, GEAR SHI | MODEL Z This part replaces 25510-14110.

25510-141V1

Unavailable

20

SPACER

09180-12083

$2.45

21

SPRING

09444-26017

$4.60

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

23

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

24

LEVER, GEAR SHIFTING | MODEL X

25610-14100

Unavailable

25

LEVER,GEAR SHIF | MODEL Z This part replaces 25600-40303.

25600-40304

Unavailable

26

BOLT This part replaces 09100-06091.

01500-06207

$2.28
