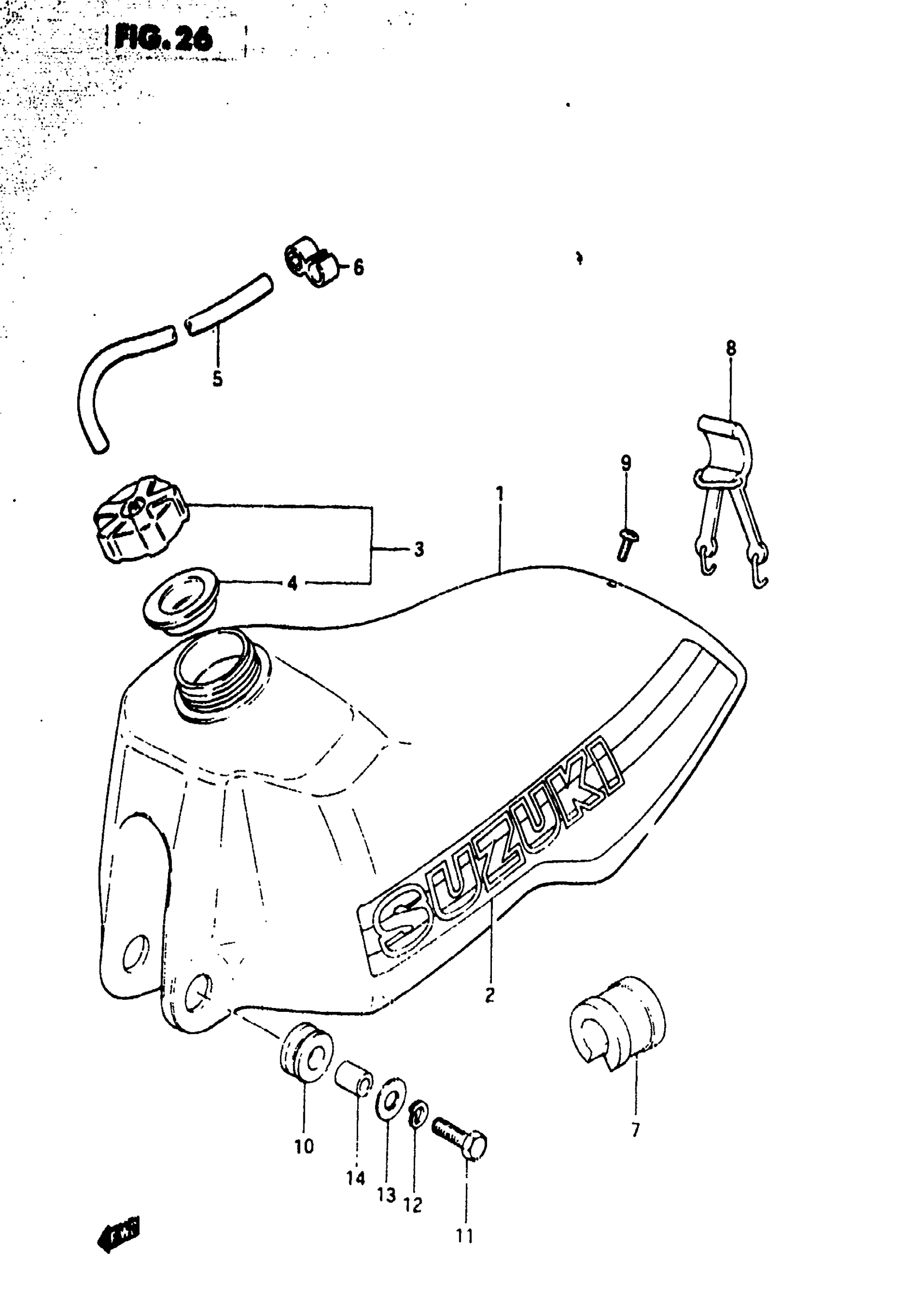

Suzuki RM125 (1982) FUEL TANK (MODEL X) Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-14830-163.

44110-14102-163

Unavailable

TAPE SET

68110-14110-76P

Unavailable

CAP SET,FUEL TA | Includes Item(s) 4 This part replaces 44200-40820.

44200-40822

$14.76

GASKET This part replaces 44248-40400.

44248-05211

$3.76

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

CLAMP

44486-40200

$4.88

CUSHION

44541-14101

Unavailable

BAND, REAR This part replaces 44560-14101.

44560-02B00

Unavailable

SCREW This part replaces 09125-06009.

09125-06073

$1.84

CUSHION

09320-12016

$2.11

BOLT This part replaces 01107-08308.

01500-08307

$3.04

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

SPACER,8.8X12X1 This part replaces 09180-08036.

09180-08036-XC0

Unavailable
