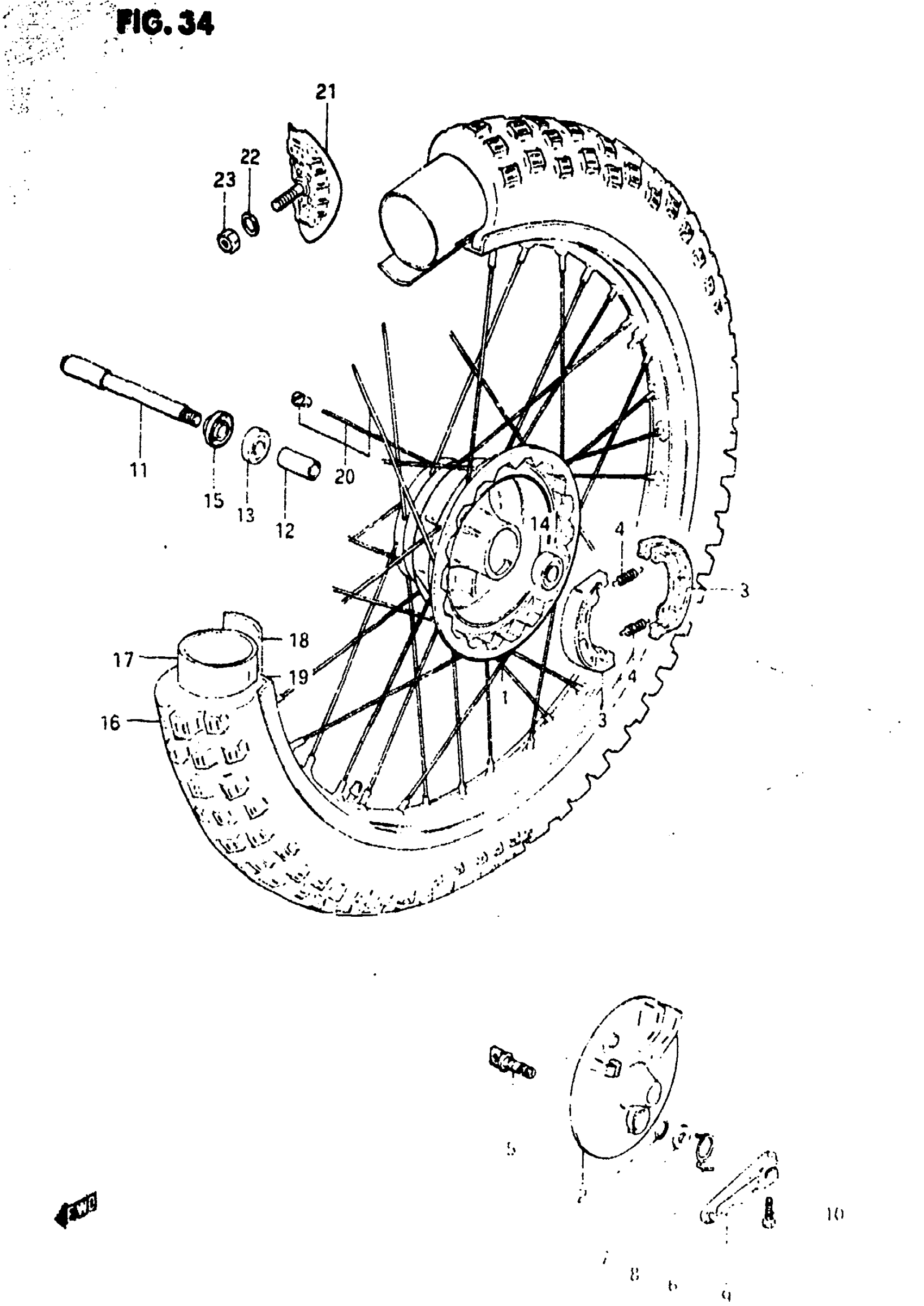

Suzuki RM125 (1982) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54110-14102

Unavailable

2

PANEL, FRONT HUB | MODEL X This part replaces 54210-14101.

54210-14110

Unavailable

2

PANEL, FRONT HUB | MODEL Z

54210-14110

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-14100.

64400-40810

$29.77

4

SPRING

09443-08021

Unavailable

5

CAM, BRAKE | MODEL X This part replaces 54441-14100.

54441-14101

Unavailable

5

CAM, BRAKE | MODEL Z

54441-14101

Unavailable

6

SPRING

09448-32007

Unavailable

7

DUST SEAL

09280-12001

$2.90

8

WASHER (12.5X20X1)

09160-12011

$1.54

9

LEVER, BRAKE CAM This part replaces 54451-14100.

54451-14101

Unavailable

10

BOLT This part replaces 01107-06258.

01500-06257

$1.97

11

AXLE, FRONT This part replaces 54711-14202.

54711-14500

Unavailable

12

SPACER

54730-14100

Unavailable

13

BEARING, RH

08123-62027

$18.57

14

BEARING, LH

08143-62027

$16.01

15

SPACER, RH

54740-14200

Unavailable

16

TIRE, FRONT (3.00-21) | IRC This part replaces 55100-14200.

55100-14230

Unavailable

16

TIRE, FRONT (3.00-21) | BS

55100-14230

Unavailable

17

TIRE, FRONT | MODEL X This part replaces 55200-28330.

55200-16511

$36.73

17

TIRE, FRONT | MODEL Z This part replaces 55200-16510.

55200-16511

$36.73

18

PROTECTOR, INNER TUBE | MODEL X This part replaces 55261-28330.

55261-14540

$3.83

18

PROTECTOR, INNER TUBE | MODEL Z This part replaces 55261-16510.

55261-14540

$3.83

19

RIM, WHEEL (1.60-21) This part replaces 55311-14100.

55311-14500

Unavailable

20

SPOKE ASSY This part replaces 55320-14110.

55320-14111

Unavailable

21

STOPPER, BEAD | MODEL X This part replaces 65270-46910.

65270-43D00

$58.75

21

STOPPER, BEAD | MODEL Z

65270-14300

$52.73

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

NUT This part replaces 08310-22088.

08310-00087

$2.13
