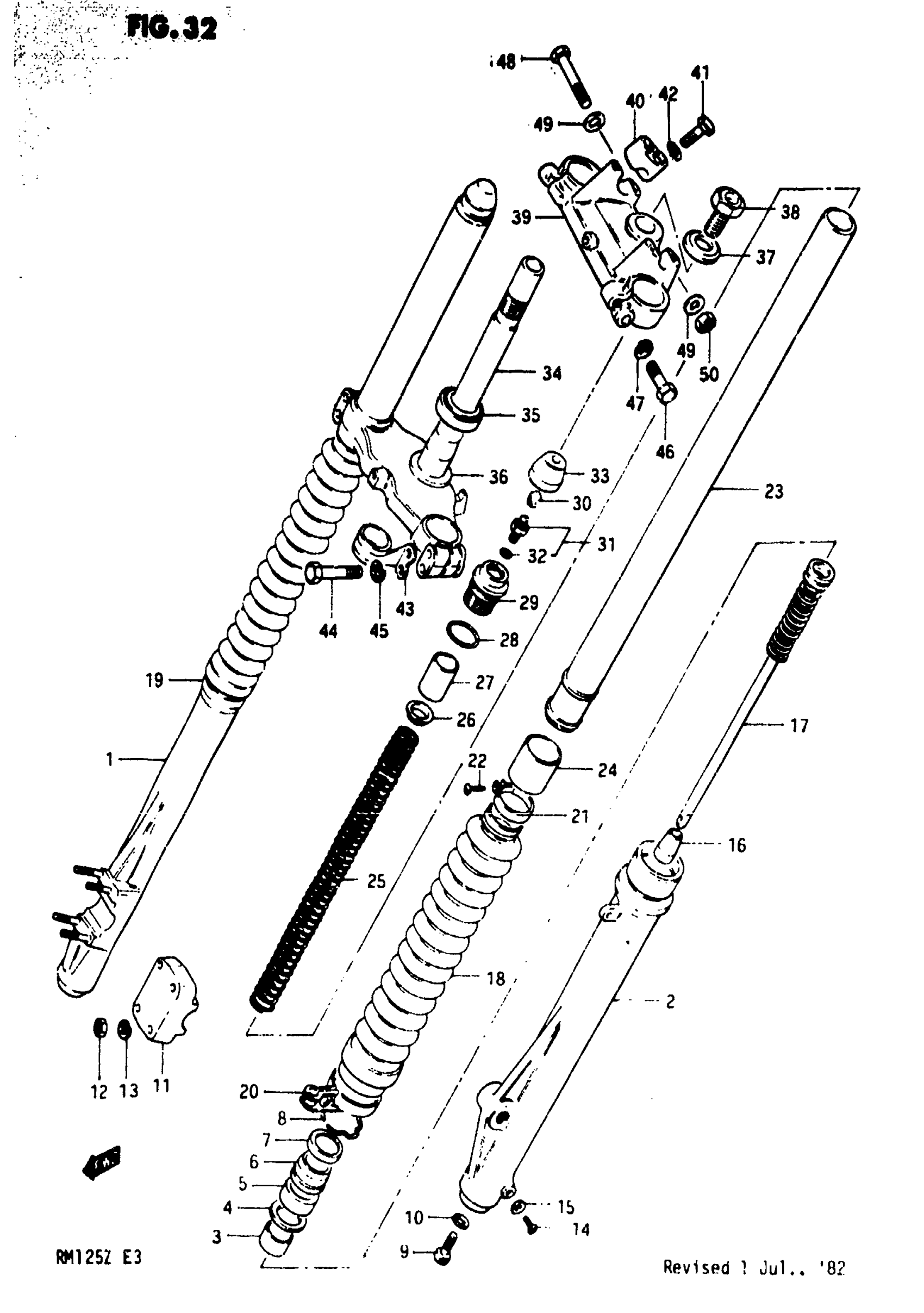

Suzuki RM125 (1982) FRONT FORK (MODEL Z) Diagram

#

Description
Price

0

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 50

51100-14120-08C

Unavailable

1

OUTER TUBE, RH

51130-14100

Unavailable

2

OUTER TUBE, LH

51141-14100

Unavailable

3

METAL, SLIDE This part replaces 51167-14100.

51167-13A00

$9.69

4

WASHER

51158-14100

$3.71

5

OIL SEAL

51153-40300

Unavailable

6

DUST SEAL

51173-40301

Unavailable

7

CASE, DUST SEAL

51149-40301

Unavailable

8

SNAP RING

51156-40301

$5.05

9

BOLT

51147-40300

$5.38

10

GASKET

51148-40300

$2.03

11

HOLDER, AXLE

51132-14100

Unavailable

12

.NUT This part replaces 08310-12068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SCREW This part replaces 02112-04088.

02112-04087

$1.49

15

GASKET

51183-03010

$2.07

16

PIEACE, OIL LOCK

51195-14100

Unavailable

17

CYLINDER

51146-14100

Unavailable

18

BOOT

51571-40300

Unavailable

19

BAND

51573-40300

Unavailable

20

BAND

51572-40300

Unavailable

21

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

22

SCREW This part replaces 02112-04108.

02112-04107

$1.55

23

TUBE, INNER

51110-14100

Unavailable

24

PISTON

51121-14100

$14.76

25

SPRING This part replaces 51171-14120.

51171-14300

Unavailable

26

GUIDE, SPRING

51172-40300

$6.48

27

SPACER

51176-14120

Unavailable

28

O RING

51117-40300

$3.09

29

CAP

51351-14310

Unavailable

30

CAP

51294-40400

$8.12

31

VALVE, AIR

51169-14200

Unavailable

32

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

33

CAP

51189-41220

Unavailable

34

STEM, STEERING

51410-14310-08C

Unavailable

35

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

36

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

37

WASHER

51356-41310

Unavailable

38

BOLT

51351-41320

Unavailable

39

STEM HEAD, STEERING

51311-40200-08C

Unavailable

40

HOLDER, HANDLE

56211-40300-08C

Unavailable

41

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

42

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

43

CLIP

58621-40301

Unavailable

44

BOLT This part replaces 01107-08458.

01500-08453

$2.50

45

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

46

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

47

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

48

BOLT This part replaces 01107-08508.

01500-08507

$3.05

49

WASHER This part replaces 08322-21088.

08322-01087

$2.13

50

NUT This part replaces 08310-12088.

08310-00087

$2.13
