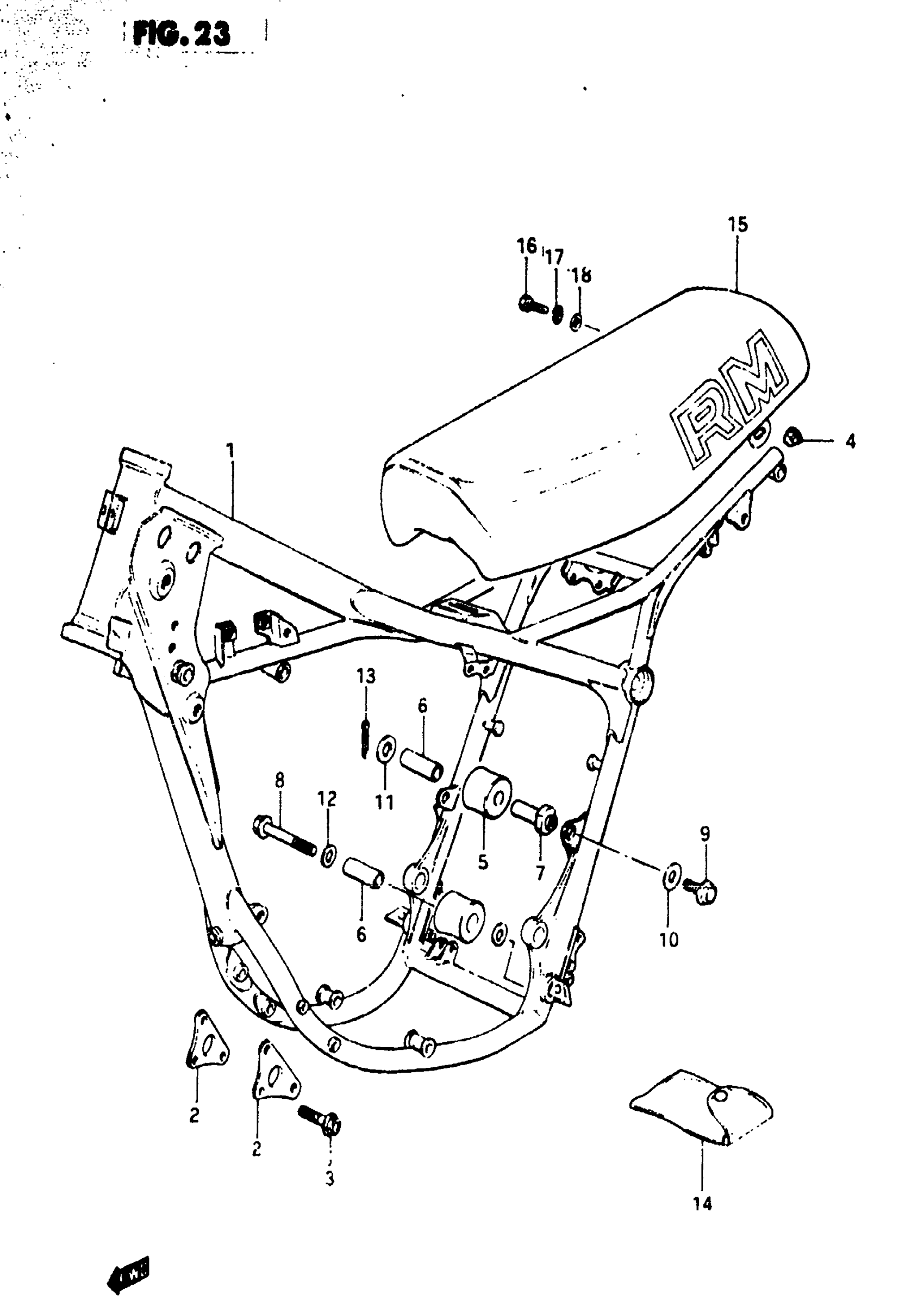

Suzuki RM125 (1982) FRAME - SEAT (MODEL Z) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-14111-019

Unavailable

2

PLATE, ENGINE MOUNTING This part replaces 41991-14111.

41991-14112

Unavailable

3

BOLT

09103-08071

$5.65

4

PLUG

09250-14006

$1.99

5

ROLLER, CHAIN CONTROLE

43911-14200

Unavailable

6

SPACER, CHAIN ROLLER

43913-40400

Unavailable

7

BOSS, CHAIN ROLLER This part replaces 43915-14300.

43915-14301

Unavailable

8

BOLT, LOWER

09103-08043

$3.18

9

BOLT This part replaces 01517-06168.

01550-06167

$2.30

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

14

TOOL SET

09800-00233

Unavailable

15

SEAT (BLUE) This part replaces 45100-14300-865.

45100-14130-49R

Unavailable

16

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

17

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

18

WASHER This part replaces 09160-08033.

09160-08126

$2.44
