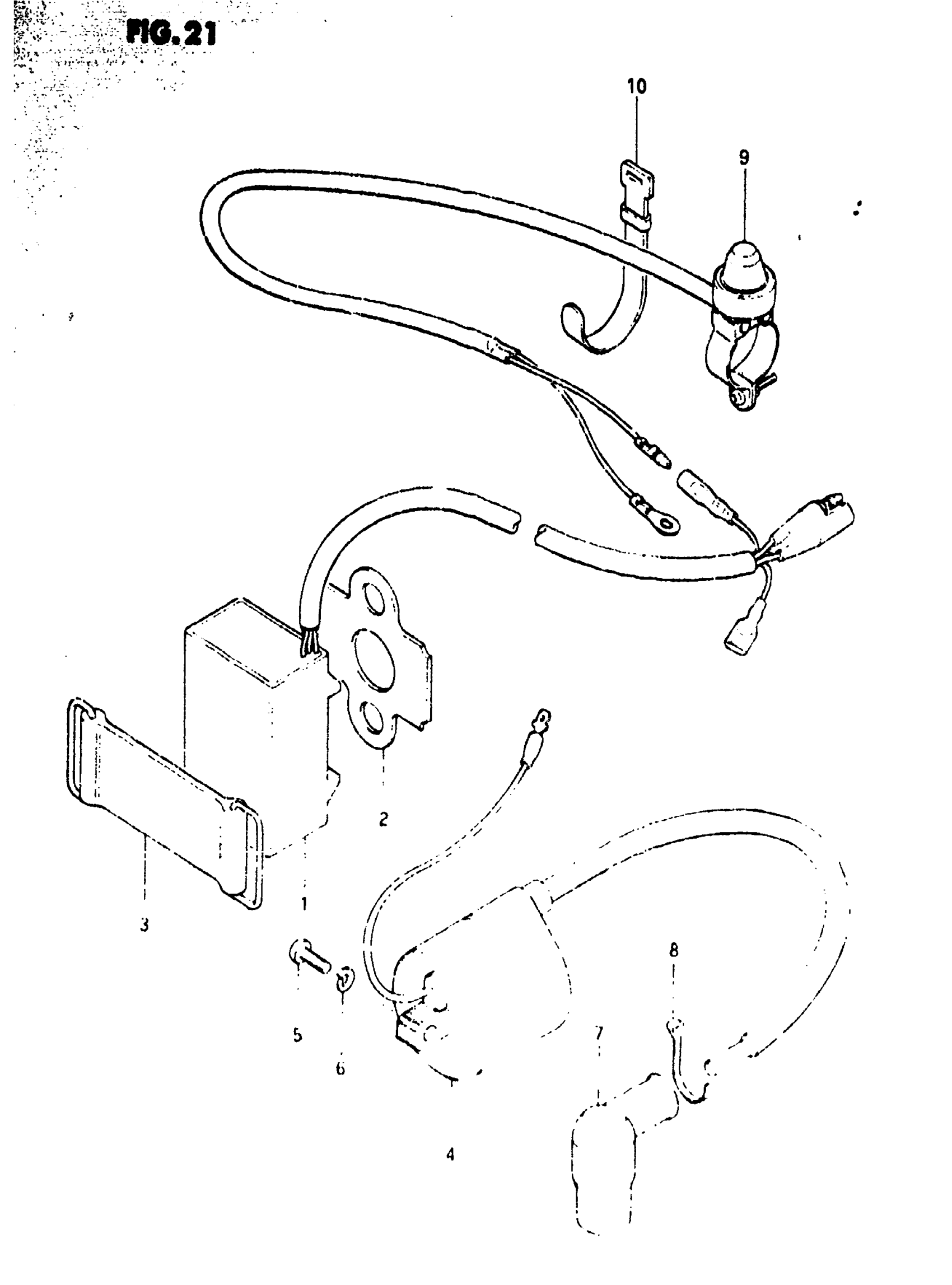

Suzuki RM125 (1982) ELECTRICAL (MODEL Z) Diagram

#

Description

Price

1

C.D.I. UNIT

32900-14130

Unavailable

2

PROTECTOR

32941-14300

Unavailable

3

BAND, CDI UNIT This part replaces 32942-14110.

32942-14111

$8.62

4

NO DESCRIPTION AVAILABLE This part replaces 33410-14130.

33410-14132

Unavailable

5

SCREW This part replaces 02112-06208.

02112-06207

$1.78

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT

09407-09402

$2.45

9

SWITCH ASSY, ENGINE STOP This part replaces 37820-40400.

37820-14X50

$48.54

10

CLAMP

09407-12402

$3.04
