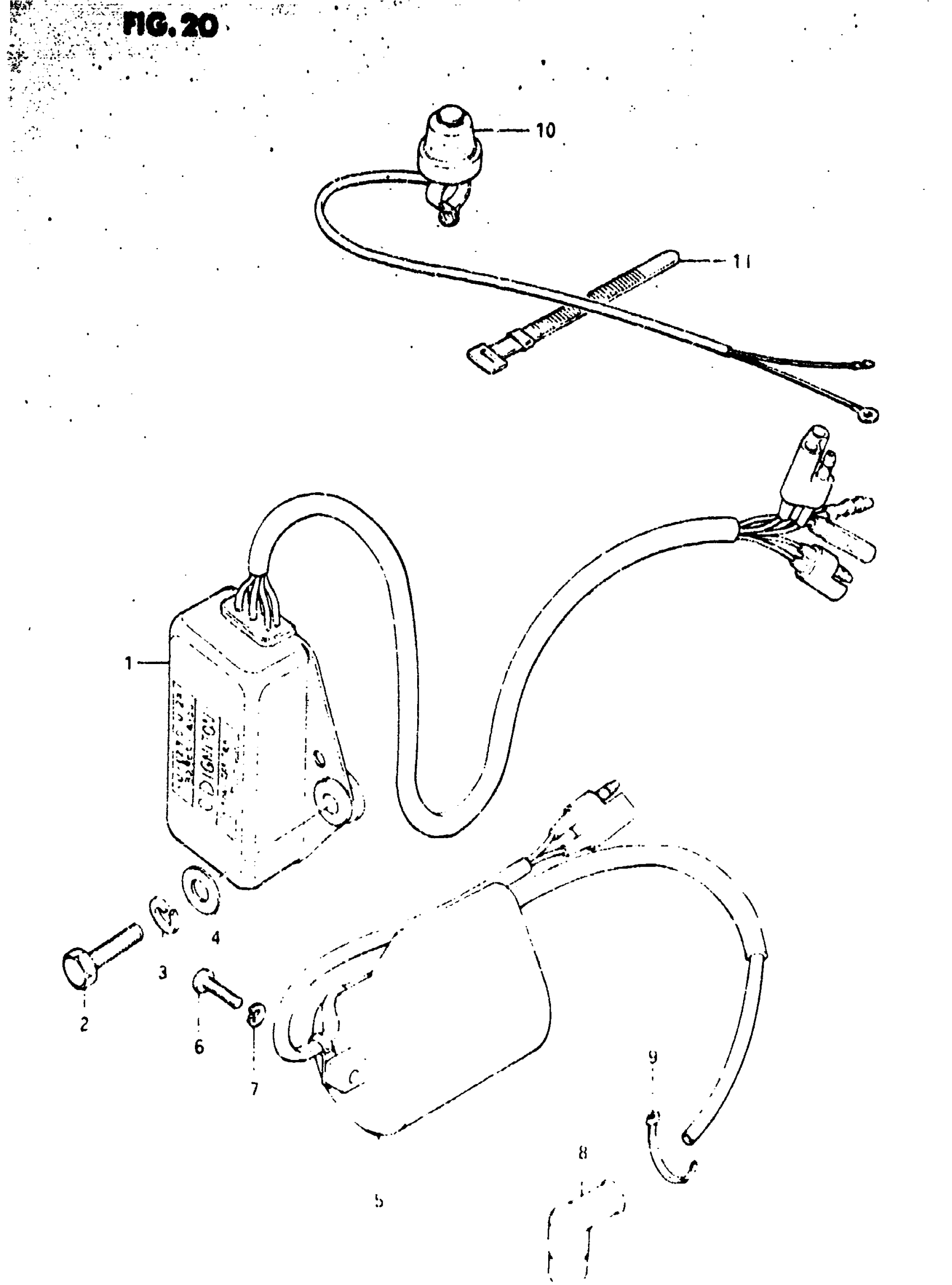

Suzuki RM125 (1982) ELECTRICAL (MODEL X) Diagram

#

Description

Price

1

C.D.I. UNIT

32900-14120

Unavailable

2

BOLT This part replaces 01107-06208.

01500-06207

$2.28

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER

09160-06019

$1.49

5

COIL ASSY, IGNITION

33410-14120

$115.17

6

SCREW This part replaces 02112-05208.

02112-05207

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

9

BELT

09407-09402

$2.45

10

SWITCH ASSY, ENGINE STOP This part replaces 37820-40400.

37820-14X50

$48.54

11

CLAMP

09407-12402

$3.04
