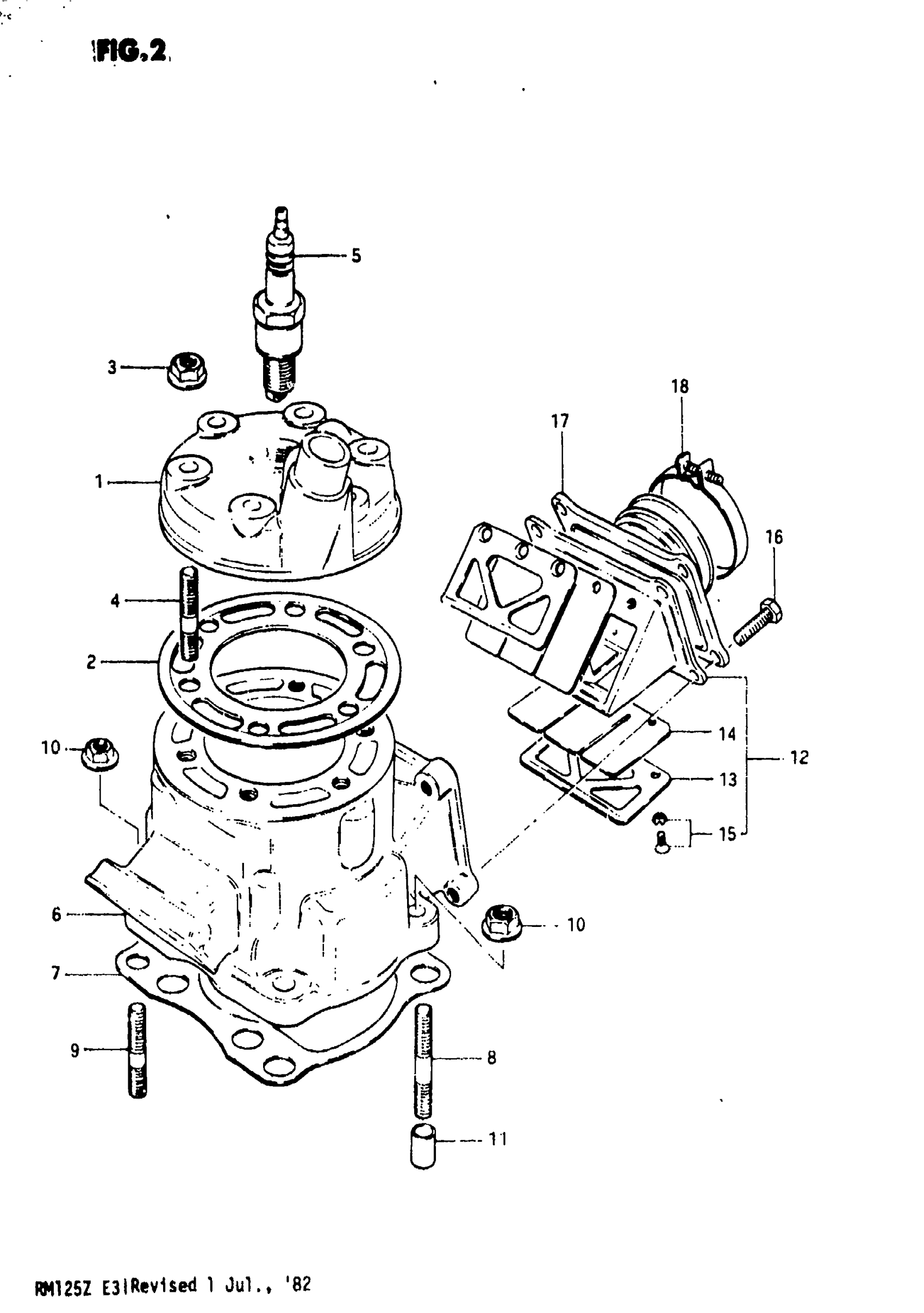

Suzuki RM125 (1982) CYLINDER (MODEL Z) Diagram

#

Description
Price

1

CYLINDER HEAD

11111-14110

Unavailable

2

GASKET,CYLINDER This part replaces 11141-14191.

11141-14120-H17

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

STUD BOLT (L:35) This part replaces 09108-08101.

09108-08143

$3.78

5

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

5

SPARK PLUG (ND,W27ES-ZU) This part replaces 09482-00099.

09482-00396-111

Unavailable

6

CYLINDER This part replaces 11210-14110.

11210-14121

Unavailable

7

GASKET,CYLINDER This part replaces 11241-14110.

11241-14110-H17

Unavailable

8

STUD BOLT (8X35) This part replaces 09108-08094.

09108-08199

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 09108-08095.

09108-08228

Unavailable

10

NUT This part replaces 08316-16085.

08316-1008B

$2.66

11

PIN

04211-11169

$1.78

12

REED VALVE ASSY | Includes Item(s) 13 - 15

13150-14110

Unavailable

13

STOPPER

13152-14110

Unavailable

14

REED VALVE

13153-14110

Unavailable

15

SCREW

02122-53088

Unavailable

16

BOLT This part replaces 01107-06208.

01500-06207

$2.28

17

PIPE, INTAKE

13110-14100

Unavailable

18

CLAMP

09402-50306

$4.77
