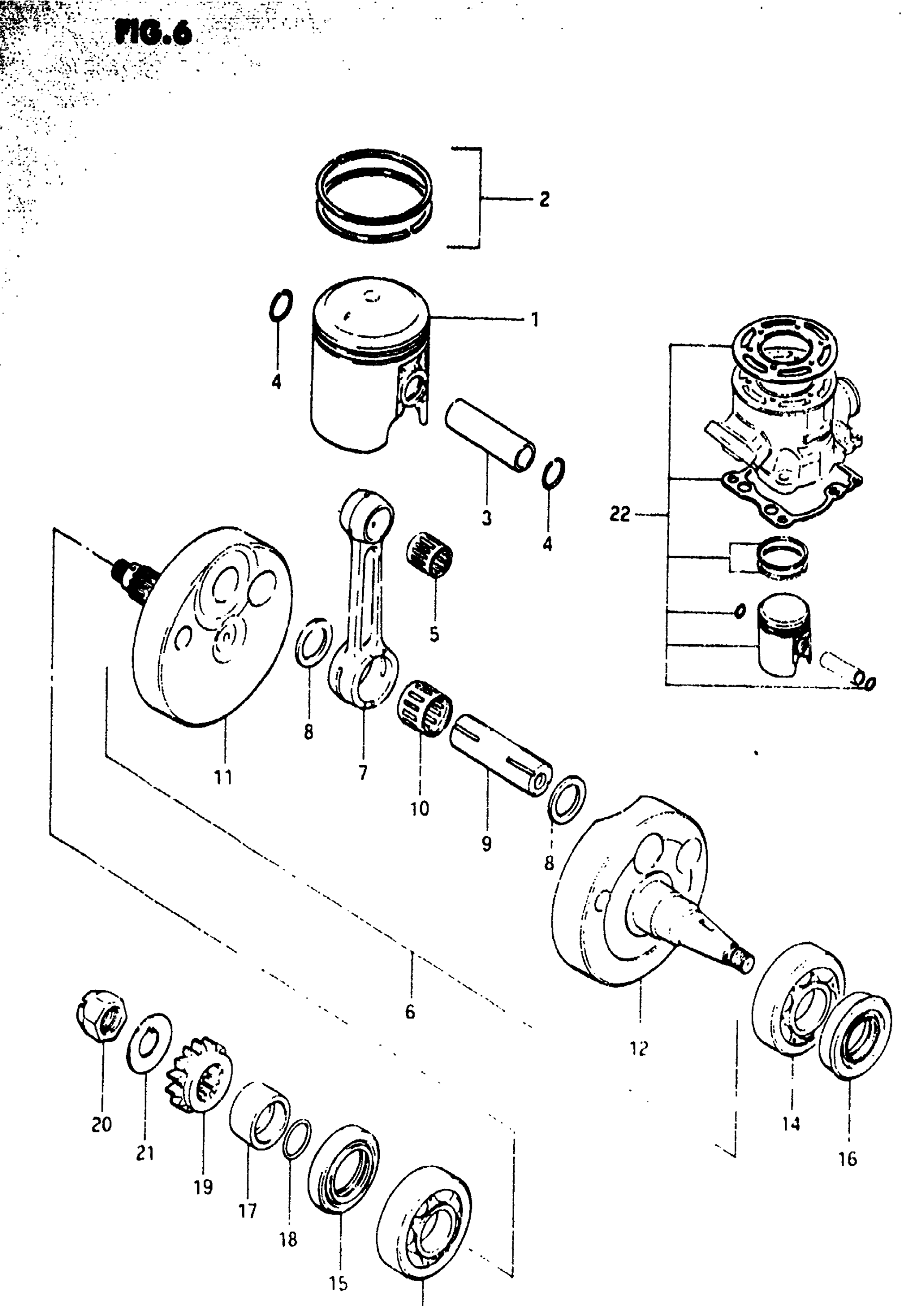

Suzuki RM125 (1982) CRANKSHAFT (MODEL X) Diagram

#

Description
Price

1

PISTON CUP This part replaces 12110-14100.

12110-141V0

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14100-025.

12103-14811-025

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14100-050.

12103-14811-050

Unavailable

2

RING SET, PISTON (STD)

12140-14110

Unavailable

2

RING SET, PISTON (OS:0.25) | OPT

12140-14110-025

Unavailable

2

RING SET, PISTON (OS:0.5) | OPT

12140-14110-050

Unavailable

3

PIN, PISTON This part replaces 12151-11000.

12151-39300

$20.88

4

RING

09381-14001

$1.49

5

BEARING, PISTON PIN This part replaces 09263-14012.

09263-14024

Unavailable

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-14101

Unavailable

7

CONNECTING ROD This part replaces 12161-14100.

12161-39300

$69.47

8

WASHER

09160-19001

$3.27

9

PIN, CRANK

12211-48001

$38.85

10

BEARING

09263-19009

$16.75

11

CRANKSHAFT, RH

12221-14102

Unavailable

12

CRANKSHAFT, LH

12261-14101

Unavailable

13

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

14

BEARING, LH This part replaces 09262-25052.

09262-25070-0A0

$37.33

15

OIL SEAL, RH

09289-28007

Unavailable

16

OIL SEAL, LH

09283-20034

$5.18

17

SPACER

12359-14101

Unavailable

18

O RING

09280-20004

$1.58

19

GEAR, PRIMARY DRIVE (NT:19) This part replaces 21111-40201.

21111-40202

Unavailable

20

NUT

09159-12010

Unavailable

21

WASHER

09166-12007

Unavailable

22

ENGINE TOP END KIT | OPT, (STD)

12100-14820

Unavailable

22

ENGINE TOP END KIT | OPT, OS:0.25

12100-14820-025

Unavailable
