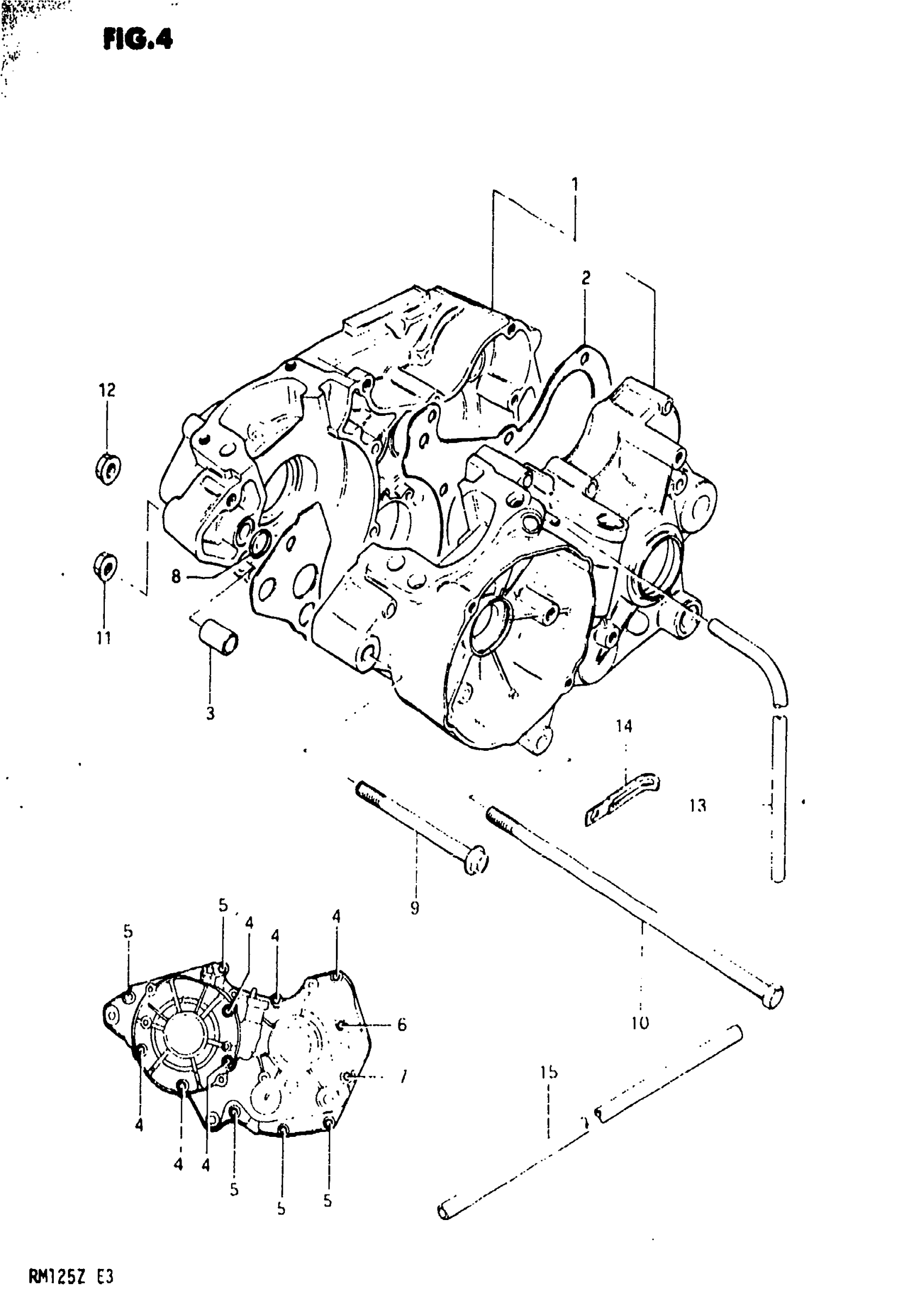

Suzuki RM125 (1982) CRANKCASE (MODEL Z) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 8

11300-14870

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14110.

11481-14110-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

6

SCREW (6x55)

02112-06557

$2.53

7

SCREW This part replaces 02112-06658.

02112-06657

$2.62

8

O RING

09280-14004

$1.65

9

BOLT This part replaces 09103-08072.

09103-08363

$9.00

10

BOLT (8x205)

09100-08190

Unavailable

11

NUT This part replaces 08319-31088.

08319-3108A

$2.32

12

NUT This part replaces 08319-21088.

08319-2108A

$2.12

13

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

14

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

15

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11
