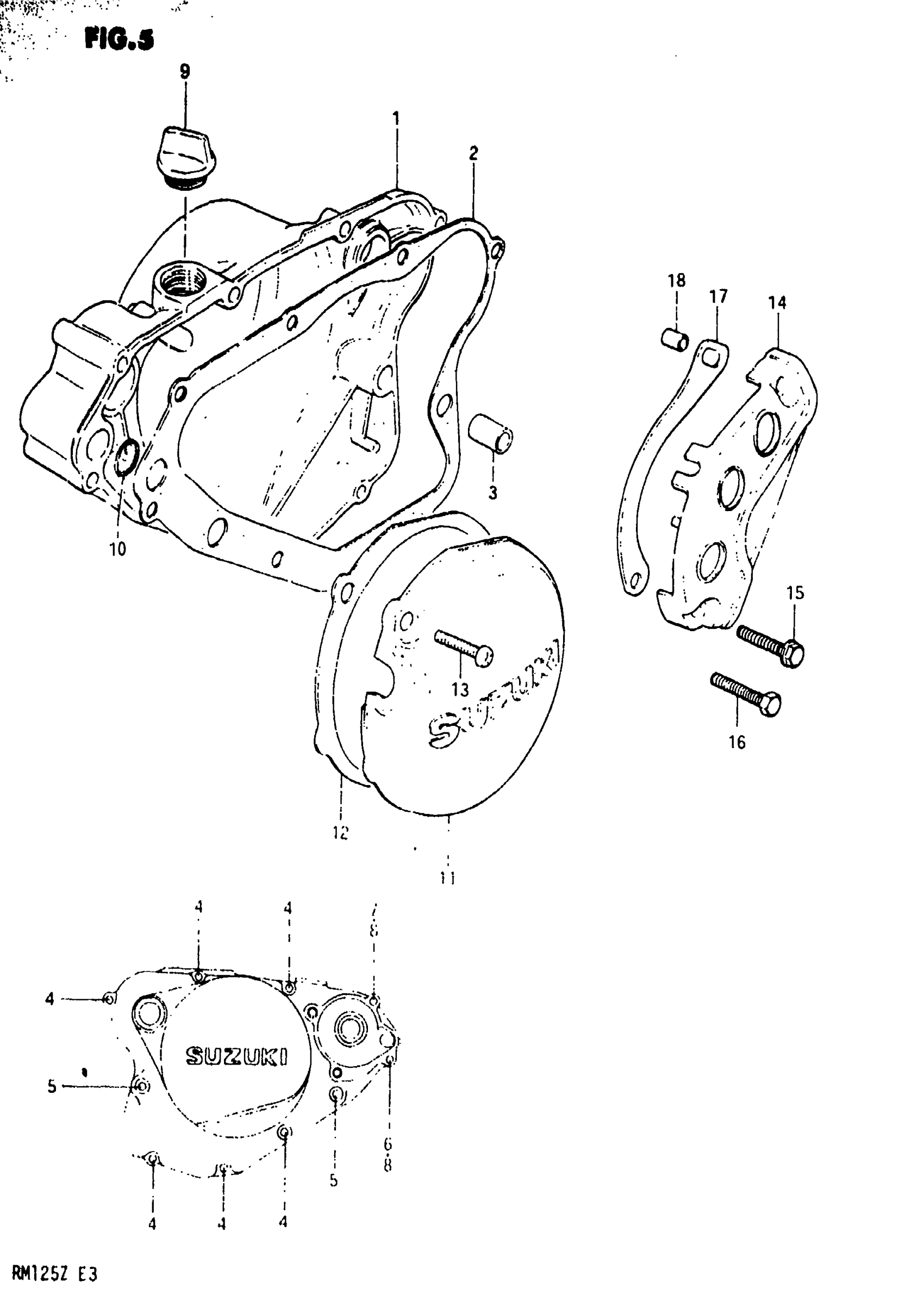

Suzuki RM125 (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-14100

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-14100.

11482-14100-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW | MODEL X This part replaces 02112-06758.

02112-06757

$3.08

7

SCREW | MODEL X This part replaces 02112-06858.

02112-06857

$2.62

8

SCREW | MODEL Z This part replaces 02112-06708.

02112-06707

$2.53

9

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

10

O RING(D:1.9,ID This part replaces 09280-15002.

09280-15024

$3.60

11

COVER, MAGNETO | MODEL X

11351-14100

Unavailable

11

COVER, MAGNETO | MODEL Z

11351-14110

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 11483-14100.

11483-14101

Unavailable

12

GASKET,MAG COVE | MODEL Z This part replaces 11483-14110.

11483-14111-H17

Unavailable

13

SCREW | MODEL X This part replaces 02112-06208.

02112-06207

$1.78

13

SCREW | MODEL Z This part replaces 02112-05168.

02112-05167

$1.97

14

COVER, SPROCKET

11360-14100

Unavailable

15

BOLT | MODEL X This part replaces 01517-06408.

01550-06407

$2.69

16

BOLT | MODEL Z This part replaces 01107-06408.

01500-0640B

$2.62

17

PLATE FR CHAIN | MODEL X This part replaces 27641-14100.

27641-14102

$10.70

17

PLATE FR CHAIN | MODEL Z This part replaces 27641-14101.

27641-14102

$10.70

18

SPACER

09180-07004

$2.30
