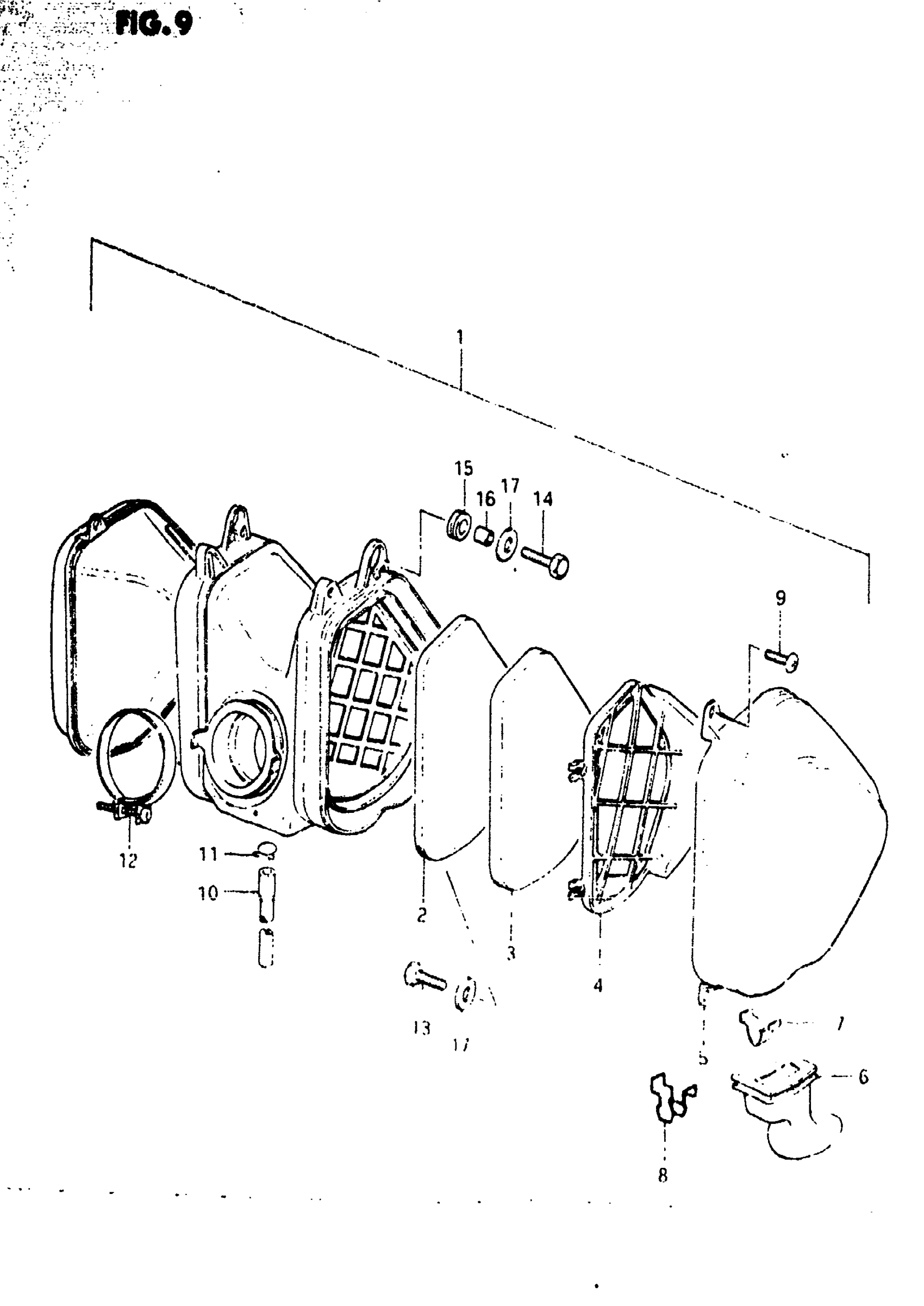

Suzuki RM125 (1982) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL X This part replaces 13700-14100.

13700-14110

Unavailable

1

CLEANER ASSY, AIR | MODEL Z; Includes Item(s) 2 - 12

13700-14110

Unavailable

2

FILTER, RH

13781-14100

Unavailable

2

FILTER, LH

13782-14100

Unavailable

3

FILTER, RH 2ND

13786-14100

Unavailable

3

FILTER, LH 2ND

13787-14100

Unavailable

4

HOLDER, RH | MODEL X This part replaces 13791-14100.

13791-14110

Unavailable

4

HOLDER, RH | MODEL Z

13791-14110

Unavailable

4

HOLDER, LH | MODEL X This part replaces 13792-14100.

13792-14110

Unavailable

4

HOLDER, LH | MODEL Z

13792-14110

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13740-14100.

13700-14820

Unavailable

5

CAP, RH | MODEL Z

13740-14110

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13750-14100.

13700-14830

Unavailable

5

CAP, LH | MODEL Z

13750-14110

Unavailable

6

TUBE, DRAIN RH | MODEL X This part replaces 13860-14100.

13871-14110

Unavailable

6

TUBE, DRAIN RH | MODEL Z

13871-14110

Unavailable

6

TUBE, DRAIN LH | MODEL X

13870-14100

Unavailable

6

TUBE, DRAIN LH | MODEL Z

13872-14110

Unavailable

7

STOPPER, TUBE | MODEL X This part replaces 13979-14100.

13877-14110

Unavailable

8

STOPPER, TUBE | MODEL Z

13877-14110

Unavailable

9

SCREW This part replaces 02142-05168.

02142-05167

$1.49

10

TUBE,DRAIN | MODEL X This part replaces 13870-00110.

13870-11459

$15.51

10

TUBE,DRAIN | MODEL Z This part replaces 13870-00170.

13870-11459

$15.51

11

CLIP

09401-14301

$2.35

12

CLAMP This part replaces 09402-64306.

09402-64203

$6.58

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

BOLT This part replaces 01107-06208.

01500-06207

$2.28

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

17

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89
