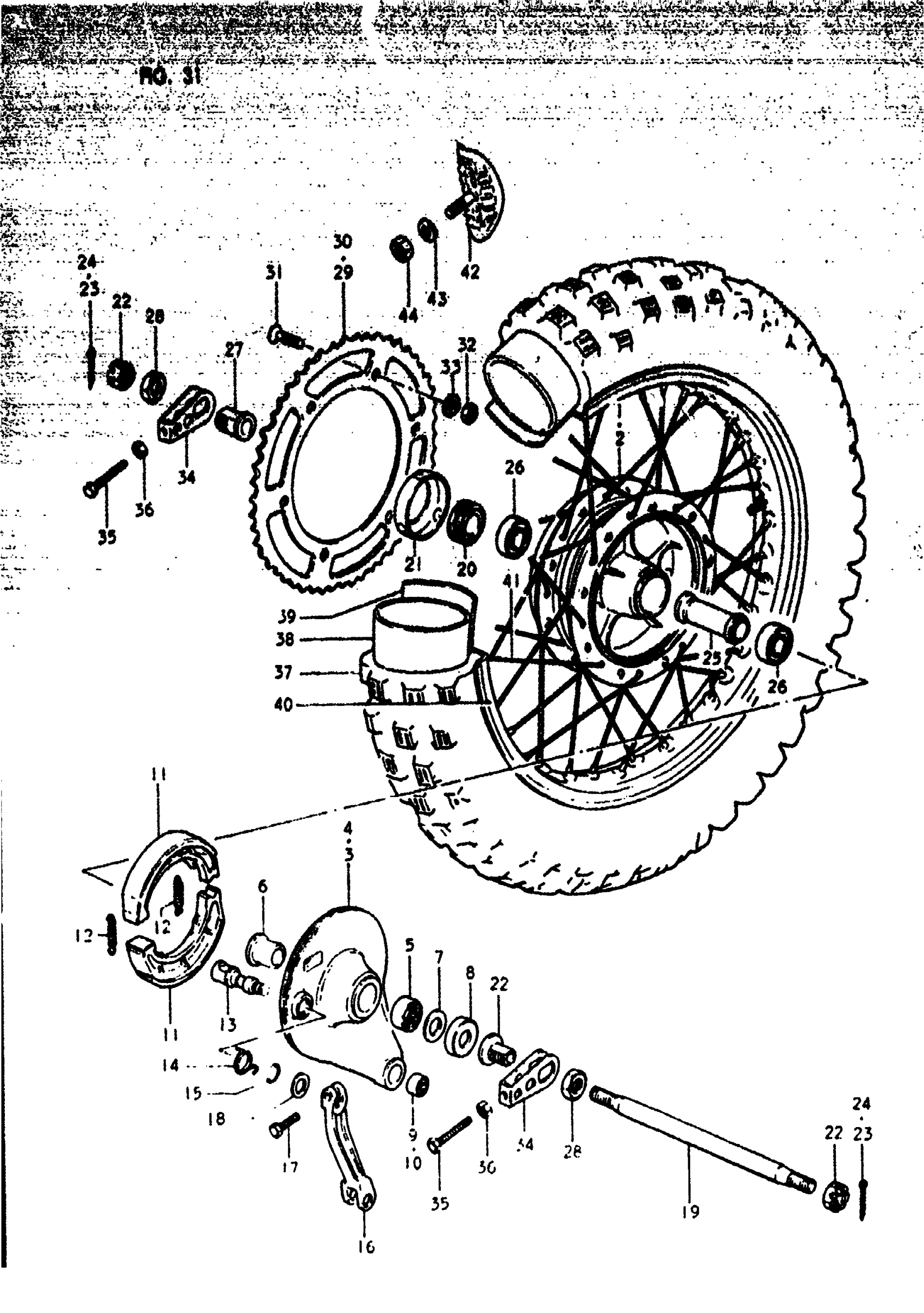

Suzuki RM125 (1980) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL | N; TO 64110-40201 USED WITH 65320-40201 This part replaces 64110-40200.

64110-40202

Unavailable

2

HUB, REAR WHEEL | T This part replaces 64110-40201.

64110-40202

Unavailable

3

NO DESCRIPTION AVAILABLE | N This part replaces 64210-40200.

64210-40202

Unavailable

4

NO DESCRIPTION AVAILABLE | T This part replaces 64200-41840.

64200-41841

Unavailable

5

BEARING | N,T

09263-22025

Unavailable

6

SPACER, PANEL | N,T

64213-40300

Unavailable

7

NO DESCRIPTION AVAILABLE | N,T This part replaces 09160-15026.

09160-15036

Unavailable

8

COVER | N,T This part replaces 64845-40300.

61262-22A01

$6.05

9

BUSH | N

09319-10008

$7.40

10

BEARING | T This part replaces 64352-40400.

64352-40401

Unavailable

11

SHOE SET,BRAKE | N,T This part replaces 64410-40200.

64400-13810

Unavailable

12

SPRING | N,T This part replaces 09443-07001.

09443-07025

$2.08

13

CAM, BRAKE | N,T

54441-01002

$18.80

14

SPRING | T

09448-30005

Unavailable

15

DUST SEAL | N,T

09280-12001

$2.90

16

LEVER, BRAKE CAM | N,T

64451-40200

Unavailable

17

BOLT | N,T This part replaces 01107-06258.

01500-06257

$1.97

18

WASHER | N,T; 12.5x20x1

09160-12011

$1.54

19

NO DESCRIPTION AVAILABLE | N,T This part replaces 64711-40200.

64711-40201

Unavailable

20

SPACER, AXLE LH | N,T

64750-40200

Unavailable

21

HOLDER, AXLE | N,T

64752-40200

Unavailable

22

NUT | N,T

09141-14004

$3.91

23

PIN | N This part replaces 04111-30408.

04111-3040A

$1.59

24

PIN | T This part replaces 04111-30308.

04111-3030A

$1.49

25

NO DESCRIPTION AVAILABLE | N,T This part replaces 64730-40300.

64730-40301

Unavailable

26

BEARING | N,T

08123-62027

$18.57

27

SPACER, CHAIN ADJUSTER | N,T

64791-40200

Unavailable

28

NUT | N,T

09140-22006

Unavailable

29

NO DESCRIPTION AVAILABLE | N; NT:59 This part replaces 64511-40201.

64511-40202

Unavailable

29

NO DESCRIPTION AVAILABLE | N; NT:57 OPT This part replaces 64511-40211.

64511-40212

Unavailable

29

NO DESCRIPTION AVAILABLE | N; NT:61 OPT This part replaces 64511-40221.

64511-40222

Unavailable

30

SPROCKET, REAR (NT:51) | T; NT:51 This part replaces 64511-40260.

64511-40261

$155.22

30

SPROCKET,RR (NT:50) | T; NT:50 OPT This part replaces 64511-40270.

64511-36E00

$126.60

30

SPROCKET, REAR (NT:52) | T; NT:52 This part replaces 64511-40265.

64511-40266

Unavailable

31

SCREW | N,T

09120-08004

$2.40

32

NUT | N,T This part replaces 08319-31088.

08319-3108A

$2.32

33

WASHER | N,T This part replaces 08322-11088.

08322-01087

$2.13

34

ADJUSTER, CHAIN | N,T This part replaces 61410-40200.

61410-40201

Unavailable

35

BOLT (8X50) | N,T This part replaces 09104-08006.

09104-08034

$3.04

36

NUT | N,T This part replaces 08310-12088.

08310-00087

$2.13

37

TIRE (41018) | N,T This part replaces 65100-40230.

65100-14130

Unavailable

38

TUBE ASSY, WHEEL INNER | N,T This part replaces 65200-41330.

65200-42AA1

$65.62

39

PROTECTOR, INNER TUBE | N,T

65261-33030

$5.50

40

RIM, WHEEL | N,T

65311-40200

Unavailable

41

SPOKE SET | N; ~F.NO. 102502

65320-40200

Unavailable

41

SPOKE SET | T; F.NO. 102503~

65320-40201

Unavailable

42

STOPPER, BEAD | N,T This part replaces 65270-30001.

65270-43D00

$58.75

43

WASHER | N,T This part replaces 08322-11088.

08322-01087

$2.13

44

NUT | N,T This part replaces 08310-12088.

08310-00087

$2.13
