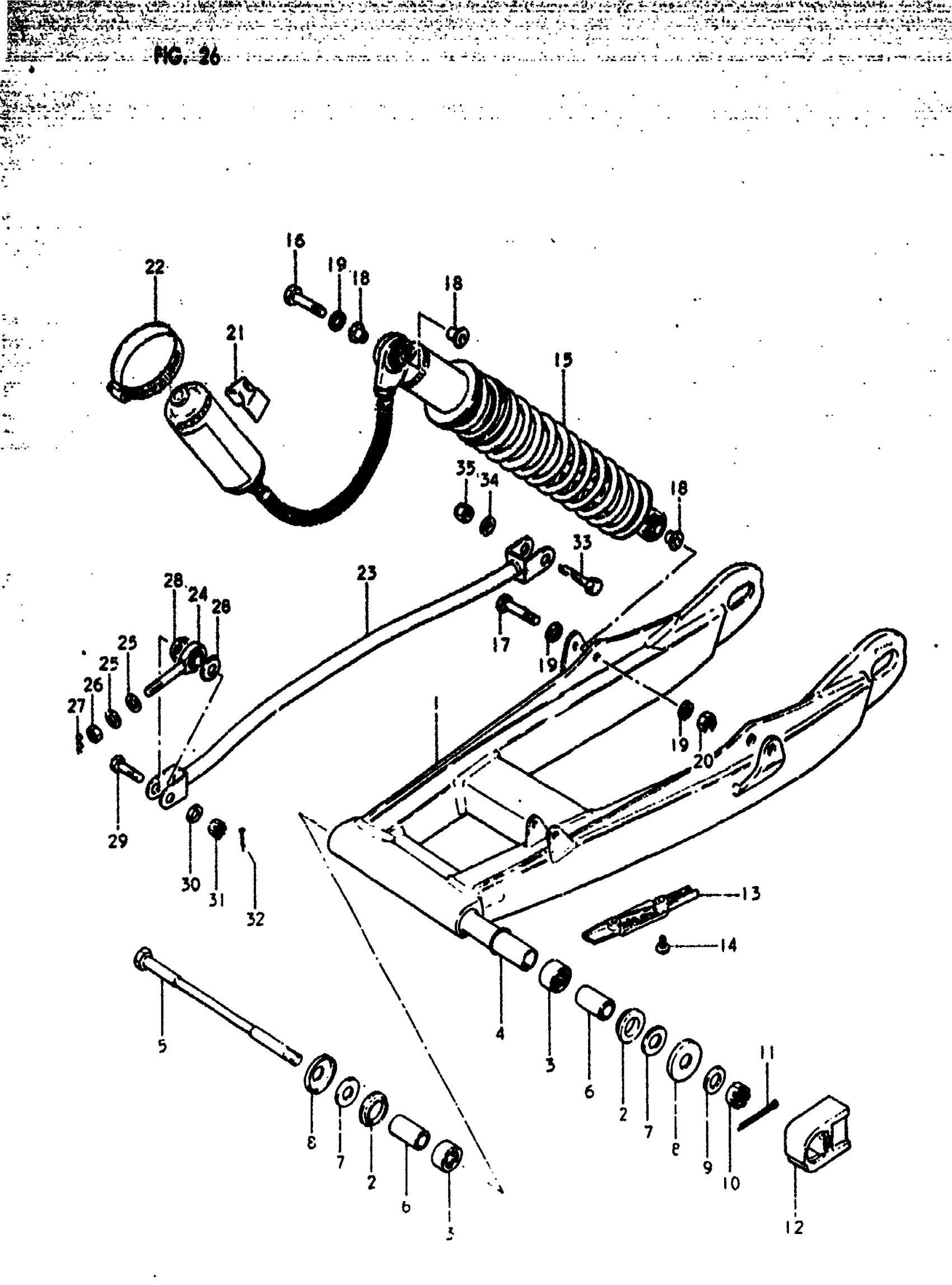

Suzuki RM125 (1980) REAR SWINGING ARM (RM125N) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-40842

Unavailable

2

BUSH

61261-40201

Unavailable

3

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

4

SPACER, CENTER This part replaces 61280-40200.

61280-40201

Unavailable

5

SHAFT, PIVOT | TO 61211-40201 This part replaces 61211-40200.

61211-40201

Unavailable

6

SPACER

61251-40200

Unavailable

7

THRUST WASHER

08211-12282

$2.65

8

COVER SWGARM PIVOT This part replaces 61262-40200.

61262-03B01

$11.18

9

WASHER This part replaces 08322-11128.

08322-01127

$1.84

10

NUT This part replaces 08314-41128.

08314-4012A

$2.50

11

PIN This part replaces 04111-20308.

04111-2030A

$1.50

12

NO DESCRIPTION AVAILABLE This part replaces 61273-40201.

61273-40202

Unavailable

13

BUFFER, CHAIN DEFENSE NO.2

61274-40201

Unavailable

14

SCREW

02142-05107

$1.49

15

SHOCK ABSORBER ASSY, REAR

62100-40200

Unavailable

16

BOLT

09100-08150

Unavailable

17

BOLT

09100-08151

Unavailable

18

SPACER

62316-40200

Unavailable

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

NUT This part replaces 08319-21088.

08319-2108A

$2.12

21

CUSHION

62331-41630

Unavailable

22

CLAMP

62332-41631

Unavailable

23

TORQUE LINK, REAR

64310-40200

Unavailable

24

BEARING This part replaces 64337-40400.

64337-40401

Unavailable

25

WASHER

09164-08011

$2.71

26

NUT This part replaces 08310-12088.

08310-00087

$2.13

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

DUST SEAL

64338-40400

Unavailable

29

BOLT

09101-08005

Unavailable

30

WASHER This part replaces 08322-11088.

08322-01087

$2.13

31

NUT This part replaces 08314-41088.

08314-4008B

$3.03

32

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

33

BOLT This part replaces 01107-10408.

01500-10407

$3.55

34

WASHER This part replaces 08322-11108.

08322-01107

$2.15

35

NUT This part replaces 08319-21108.

09159-10027

$3.10
